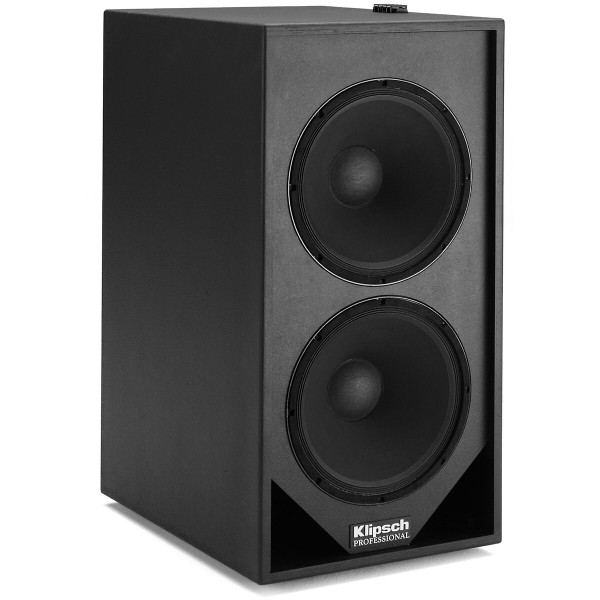

  • Klipsch KPT-684 Dual 18" Cinema Bass-Reflex Subwoofer THX-Approved

CLEARANCE Klipsch KPT-684 Dual 18" Cinema Bass-Reflex Subwoofer THX-Approved

Klipsch
Part #247-2033

CLEARANCE Klipsch KPT-684 Dual 18" Cinema Bass-Reflex Subwoofer THX-Approved

Klipsch
Part #247-2033
Model: KPT-684-SMA
The Klipsch KPT-684 is an absolutely beastly dual 18" subwoofer designed to provide maximum low frequency impact in medium to large cinemas and other venues. Capable of up to 132 dB continuous output, the KPT-684 is not recommended for the faint of heart.
Key Features
  • Dual 18" subwoofer for cinema installation
  • THX-approved
  • Capable of very high SPL
  • 105 dB sensitivity - doesn't require a million watts to reach massive output
60 Day No Hassle Return Policy

Overview

Klipsch KPT-684 Dual 18" Cinema Bass-Reflex Subwoofer THX-Approved

Created for the most demanding theatrical and cinematic applications, the Klipsch KPT-684 is a high output bass-reflex dual subwoofer featuring advanced low-frequency driver design. The system utilizes two 18 inch drivers that gain their high efficiency through the use of large geometrically optimized magnet structures and lightweight cones. The enclosure is constructed of one-inch void-free birch plywood and features internal cross braces at all cabinet joints. This structural integrity allows the KPT-684 to reach incredible levels of output while retaining crystal-clear sound quality.

Specifications: • Frequency response: 34 - 1,800 Hz, ±4 dB; -10 dB @ 25 Hz • Sensitivity: 105 dB 1w/1m • Power handling: 600 watts per woofer (25 - 250 Hz) • Max continuous output: 132 dB • Nominal impedance: 8 ohms (3.6 ohms minimum @ 22 Hz, woofers wired in parallel) • Recommended amplifier power: 600 watts continuous, 2400 watts peak (per woofer) • Dimensions: 48.75" x 23.5" x 30.5" (1238 x 597 x 775 mm) • Weight: 155 lbs. (90 kg).

Product Details

BrandKlipsch
ModelKPT-684-SMA
Part Number247-2033
UPC743878026689
Unit of MeasureEach
Weight157

Product Specifications

ConfigurationSubwoofer
Speaker TypePassive / Unpowered
Woofer Size18"
