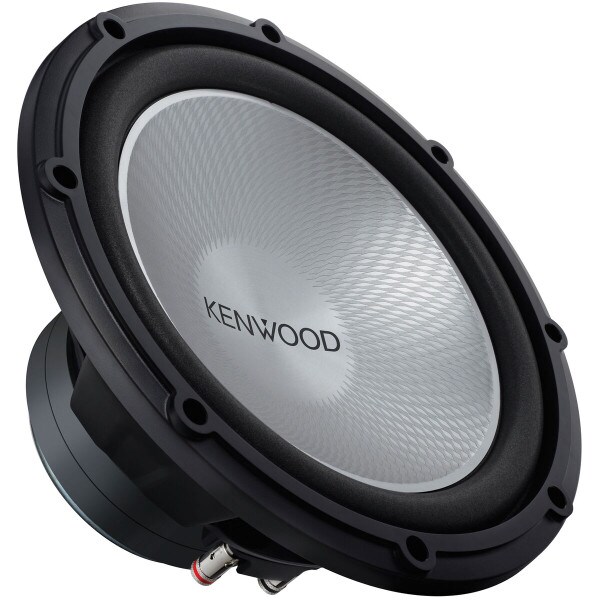

CLEARANCE Kenwood KFC-W12PS Performance Series 12" 1000W Subwoofer

Kenwood
Part #267-4355

CLEARANCE Kenwood KFC-W12PS Performance Series 12" 1000W Subwoofer

Kenwood
Part #267-4355
Model: KFC-W12PS
Maximum bass for your buck is what Kenwood's Performance Series is all about. The KFC-W12PS 12" subwoofer handles up to 250 watts RMS and can be used in a sealed or ported enclosure.
Key Features
  • 250W RMS power handling
  • 12" subwoofer with 7.35 mm of Xmax, poly cone, and foam urethane surround
  • Works in sealed enclosures from 0.75 to 1.75 cubic feet
  • Works in ported enclosures from 1 to 2 cubic feet
60 Day No Hassle Return Policy

Overview

Kenwood KFC-W12PS Performance Series 12" 1000W Subwoofer

Kenwood's Performance Series subwoofers deliver maximum bass for your buck. A diamond array pattern reinforces the heavy-duty polypropylene cones which are mated to a durable, tough foam urethane to take the abuse from maximum excursion transients. The motor structure features a dual ventilation system to keep the voice coil cool.

Kenwood's 12" KFC-W12PS subwoofer is designed for optimal use in 1.25 cubic foot sealed enclosures, but can be used in a sealed enclosure up to 1.75 cubic foot for deep bass or a sealed 0.75 cubic foot enclosures for tight bass. Ported enclosures of 1 to 2 cubic feet are fine as well.

Product Details

BrandKenwood
ModelKFC-W12PS
Part Number267-4355
UPC019048197627
Unit of MeasureEach
Weight12.45

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.85
Power Handling (RMS)250 Watts
Power Handling (MAX)1000 Watts
Impedance4Ω
Frequency Response36 to 300Hz
Sensitivity85dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)33Hz
DC Resistance (Re)3.1Ω
Voice Coil Inductance (Le)2.3mH
Mechanical Q (Qms)14.85
Electromagnetic Q (Qes)0.59
Total Q (Qts)0.57
Compliance Equivalent Volume (Vas)2.03ft³
BL Product (BL)13.6T·m
Maximum Linear Excursion (Xmax)7.35mm

Materials of Construction

Cone MaterialPoly

Mounting Information

Overall Outside Diameter12.81"
Baffle Cutout Diameter11"
Depth6.48"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.96ft³
Sealed F346Hz
Vented Volume4.17ft³
Vented F323Hz
