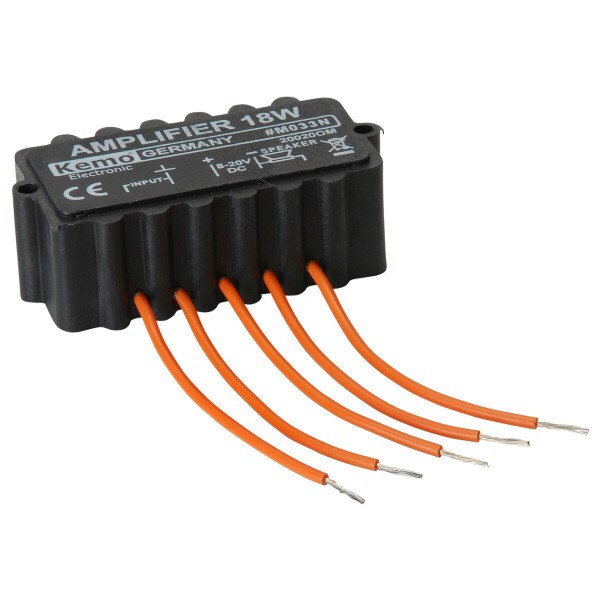

The Kemo M033N is a simple, resilient solution for adding an amplifier to any electronic project. The thermoplastic casing is resistant to humidity and requires no additional heat sinks. Protection against overload and overheating is included. All connections are through the attached leads.
Specifications: • Operating voltage: 8 - 20 VDC • Current consumption <800 mA • Input sensitivity: < 80 mV • Compatible speakers: 4 - 16 ohm • Output: maximum 18W into 4 ohms with 20V power supply • Frequency response: 40 - 20,000 Hz • Dimensions: 2.76" x 1.42" x 0.91".
Product Details | |
|---|---|
| Brand | Kemo Electronic |
| Model | M033N |
| Part Number | 320-553 |
| Unit of Measure | Each |
| Weight | 0.3 |
Product Specifications | |
|---|---|
| Board Type | 1 Channel Mono Amp |
| Power (RMS/Channel 8 ohms) | 0 - 25 Watts |
