CLEARANCE Jensen Iso-Max PC-2XR Pro-to-Consumer High to Low Level Signal Converter

Jensen TransformersPart # 246-0127
Model: PC-2XR

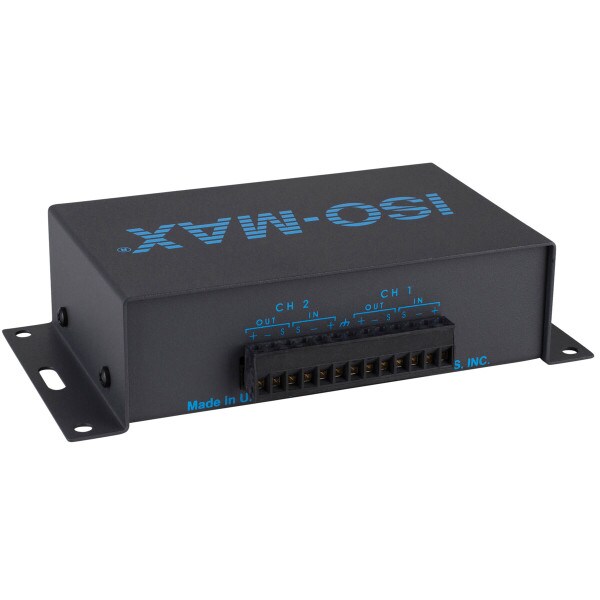

Jensen's Iso-Max isolators use the world's best transformers to solve problems common to pro audio, home theater, car audio, and audiophiles alike. The PC-2XR is a two channel isolator for converting +4 dB balanced signal to -10 dB unbalanced. Connect it between your pro and consumer gear to convert, without adding noise or killing quality.

Key Features

  • Converts +4 dB balanced signals to -10 dB unbalanced
  • Built using the finest transformers money can buy: Jensen
  • Passive design means no power or batteries needed
  • Eliminates ground loop hum and noise
Get Notified When Available

We'll send you an email when Jensen Iso-Max PC-2XR Pro-to-Consumer High to Low Level Signal Converter is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Jensen Iso-Max PC-2XR Pro-to-Consumer High to Low Level Signal Converter

The PC-2XR is used to convert +4 dB balanced (pro level) audio signal into -10 dB unbalanced (consumer level) signal. This makes it possible to send audio from a professional mixing console to a computer or video camera, for instance. The PC-2XR makes the conversion clean and noise-free by using the highest quality components and Jensen isolation transformers.

We've all been there before. You spend hard-earned money and hours of your time selecting just the right components and putting together a great sound system. You get everything hooked up, plug it in and fire it up and BAM! That dastardly hum rears its ugly head. It's not just an audiophile issue. It happens anywhere you might want to install high quality sound. Home theater, mobile audio, pro audio and commercial sound systems can all be plagued by this most vile and wretched affliction.

Lucky for you, Jensen has introduced solutions for virtually any type of setup in which you might encounter this pernicious foe. Using world-renowned Jensen transformers, the Iso-Max line of products kills the hum without killing your sound quality. Simply insert the Iso-Max unit into your signal path, and voilà! Hum is out, and clean luscious sound is all that's left. Enjoy!

Specifications: Frequency response: < 10 - 140,000 Hz • Connectors: XLR and RCA • Max input (@ 20 Hz): +21 dBu • CMRR noise rejection: 120 dB @ 60 Hz • Dimensions: 6.94" x 3.5" x 1.71".

Product Details

BrandJensen Transformers
ModelPC-2XR
Part Number246-0127
UPC676101041657
Unit of MeasureEach
Weight1.9

Product Specifications

Mixer TypeAnalog
XLR Mic Inputs< 6
