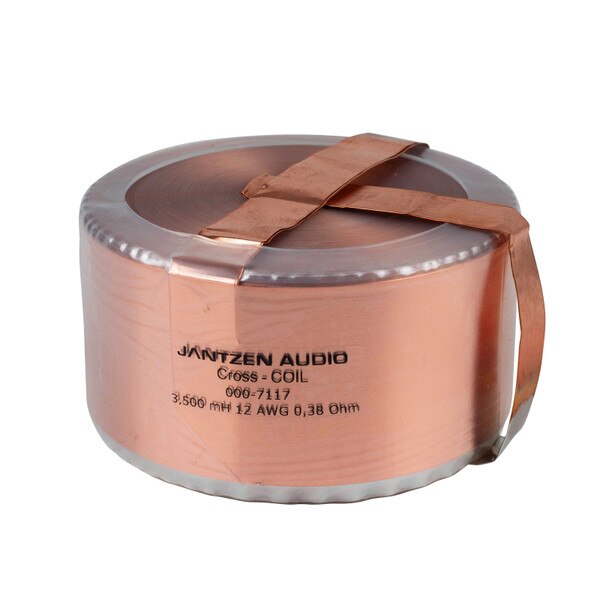

CLEARANCE Jantzen 7117 3.5mH Copper Foil Inductor

Jantzen AudioPart # 255-644
Model: 000-7117

Jantzen Audio’s Cross Coil inductors offer an uncompromising approach to air core design, delivering unmatched performance in high-end passive crossover networks. With their unique flat-wire geometry and specialized winding techniques, Cross Coils are engineered to minimize resistance, distortion, and magnetic interference.

CLEARANCE $113.95
+ FREE SHIPPING
MSRP: $182.32
Save $68.37 (37%)
Bulk Pricing
2 In Stock
Get Notified When Available

We'll send you an email when Jantzen 7117 3.5mH Copper Foil Inductor is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen 7117 3.5mH Copper Foil Inductor

Jantzen 7117 3.5mH Copper Foil Inductor

Product Features

The Cross Coil was developed in cooperation with Mr. Per Skaaning from Audio Technology (Denmark).

It is a high-performance foil inductor offering improved power handling and dynamic head room.

Using pure copper foil, we have insured a better surface for electron travel, a better distortion reduction, a higher power handling and improved dynamic headroom, compared to wire-based inductors.

The coil is wrapped in clear shrink foil to protect the outer layer of foil and to help maintain the integrity of the windings.

We know that with rising frequency, the electrons will move towards the surface. This Phenomenon is known as power distortion. Therefore, we need as large a surface as we can get, to prevent the electrons from getting “squeezed" on their path to the surface.

Technical Data

  • Inductance: 3.6000 mH
  • DCR: 0.3900 Ω
  • AWG: 12
  • Inner ø: 10 mm
  • Outer ø: 104 mm
  • Height: 56 mm
  • Made from ETP (Electrolytic-Tough-Pitch) copper foil
  • The copper foil is C11000 / IACS certified
  • Inductance tolerance: +/- 2%
  • DCR (coil resistance) tolerance: +/- 5%
  • Insulation: Polypropylene shrink foil (clear)

Product Details

BrandJantzen Audio
Model000-7117
Part Number255-644
UPC848864080406
Unit of MeasureEach
Weight4.95

Product Specifications

DCR0.38Ω
Inductance3.5mH
Inductor TypeCopper Foil
Wire Gauge12
