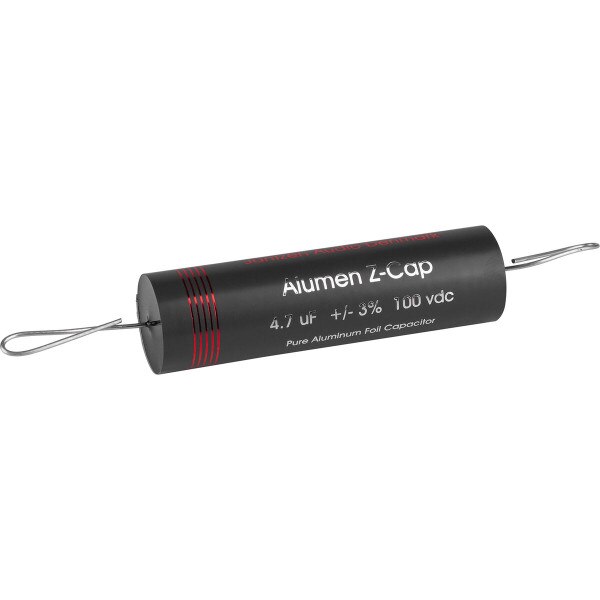

  • Jantzen Audio 4.7uF 100V Alumen Z-Cap Aluminum Foil Capacitor

Overview

Product Features

  • Dimensions: (Ø 17mm - L: 44mm)
  • The Alumen Z-Cap is a high-end pure aluminum foil capacitor, designed specifically for passive crossovers (tweeters and midrange drivers).
  • It utilizes a much thinner dielectric insulation compared to the market standard.
  • A high voltage rating is not needed for application related to passive loudspeaker crossovers.
  • The usage of a thinner dielectric insulator allows for a capacitors with less “memory” and one that is much faster reacting.
  • The Alumen Z-Cap offers unparalleled value for money in terms of cost versus performance.
  • Compared to the Superior and Silver Z-Caps (Super MKP / double metallized polypropylene foil) capacitors, the Alumen Z-Cap will bring less brightness and a little more natural top end balance to your system.
  • Ideal for audio aficionados who prefer a slightly less bright system, while also hearing improvements in the overall naturalness/neutrality of the whole system.
  • Due to the max. 100 volts DC voltage rating, we advise customers to be mindful when using Alumen Z-Caps for tube/valve and power amplifier application.
  • For upgrading the coupling capacitors in amplifiers, we instead recommend choosing our Superior or Silver Z-Caps (Double-foil Super MKP capacitors).

Technical Data

  • Type: Non polarized pure aluminum foil capacitor
  • Dielectric: Polypropylene film
  • Construction: Four-layer round tubular type axial leads
  • Winding: Aluminum foil spliced to polypropylene insulation film
  • Rated Voltage: 100 VDC / 65 VAC
  • Test Voltage: 150% rated voltage
  • Electrodes: Pure copper foil
  • Contacts: Non-inductive zinc thermally sprayed extended film
  • Coating: Gray plastic tape wrapped black resin, sealed in an anodized aluminum tube
  • Leads: Tin plated oxygen free pure copper
  • Capacitance Range: 100VDC from 1.0 μF to 10μF
  • Capacitance tolerance: ±3% (on nominal value)
  • Dielectric constant: Non-polar dielectric
  • Dissipation factor: Extremely low
  • Dielectric absorption factor: ＜0.5% @20℃
  • Dielectric thickness: PB=4µm
  • Equivalent series resistance: Extremely low
  • Self-inductance: 0 nH
  • Insulation resistance: ＞100.000 MΩ@20℃
  • Temperature coefficient: -200℃x10-6/℃
  • Temperature Range: -55℃to +85℃
  • Metal layer thickness: PB=0.3µm
  • Metal layer conductivity: PB =1.2 Ω/cm2

Key Innovations

  • Ultra-thin dielectric insulation to eliminate memory effect in the capacitor
  • An extremely fast reacting capacitor• Very low ESR, SEL, inductance and dielectric absorption data
  • High quality pure aluminum foil wound with highly specialized machinery and precision winding techniques
  • Specifically designed for the tweeter and mid-range section of passive crossovers
  • Can also be used as coupling capacitors for transistor amplifiers
