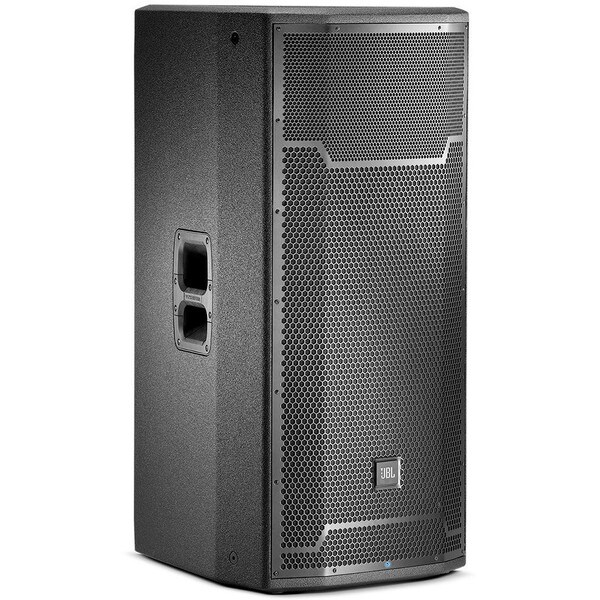

JBL PRX735 15" 3-Way Powered PA Loudspeaker SystemThe JBL PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth. The PRX700 Series represent an evolutionary step in the efficient use of amplifier power, rugged durability and enhanced versatility in a self-powered loudspeaker. Designed from the ground up to perform in the real world of sound reinforcement where challenging audio environments, high ambient noise levels and loud volumes are the norm, the PRX700 Series are built to last a lifetime using our reliable and trustworthy, tour-tested technology. Knowing you can rely on your system to deliver everything you need gives you the freedom to deliver your best. That's performance you can trust.
This speaker is ideally suited to applications where the program material exhibits substantial dynamics, subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with extended low frequencies of the PRX618S-XLF, one experiences complete control over the entire audio spectrum. As with all the full-range PRX700 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

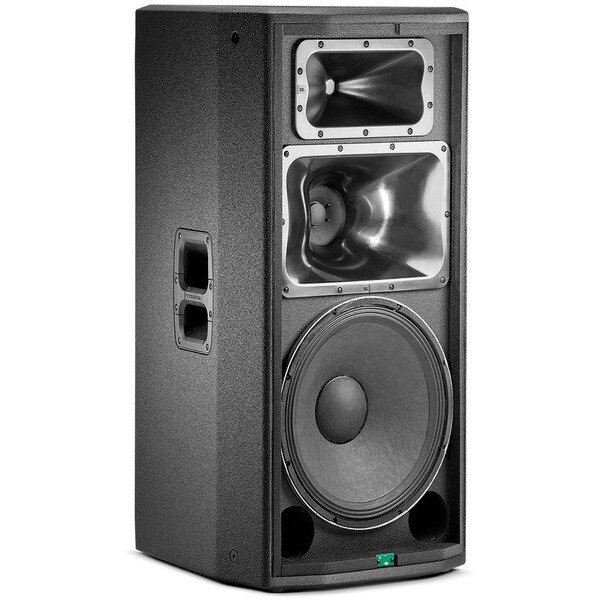

The PRX735 is comprised of one 15" 275G Differential Drive® woofer, a 6.5" 196H horn-loaded 90° x 50° mid-range and a 2408-H2 1.5" annular polymer diaphragm, neodymium compression driver mounted to a 90° x 50° horn, all driven by a 1,500 watt Class-D power amplifier. A sophisticated DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

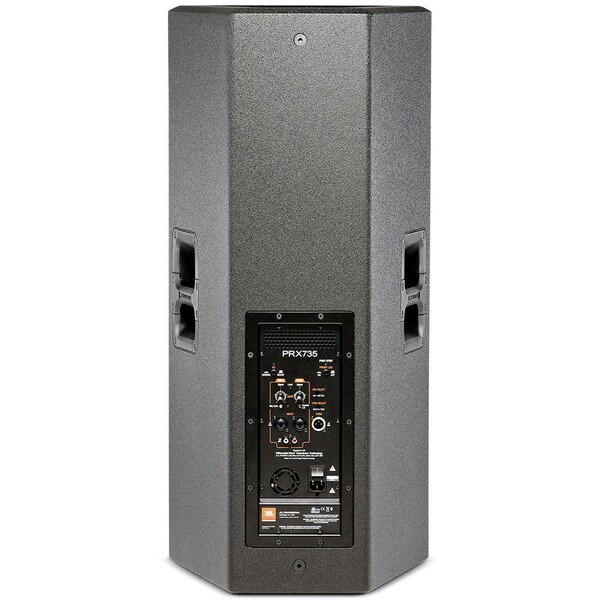

The amplifier input panel offers XLR, 1/4", and RCA jack compatibility, and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.
All PRX700 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL's tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1,000 lbs. each.
Special note: The PRX735 should be pole-mounted on a PRX 600 subwoofer using a pole no longer than 24" in length (SS3-BK24 or SS4-BK24).
Specifications: • System type: Self-powered 15", three-way, bass reflex • Maximum SPL output: 136 dB peak • Frequency range (-10 dB): Normal setting: 35 Hz – 20 kHz; Boost setting: 34 Hz – 20 kHz • Frequency Response (±3 dB): Normal setting: 42 Hz – 20 kHz; Boost setting: 39 Hz – 20 kHz • Coverage Pattern: 90º x 50º nominal • Amp design: Class D • Power rating: 1,500 watts • Dimensions: 37.5" x 17.52" x 21.18" (952.5 x 445 x 538 mm) • Net weight: 77 lbs.
