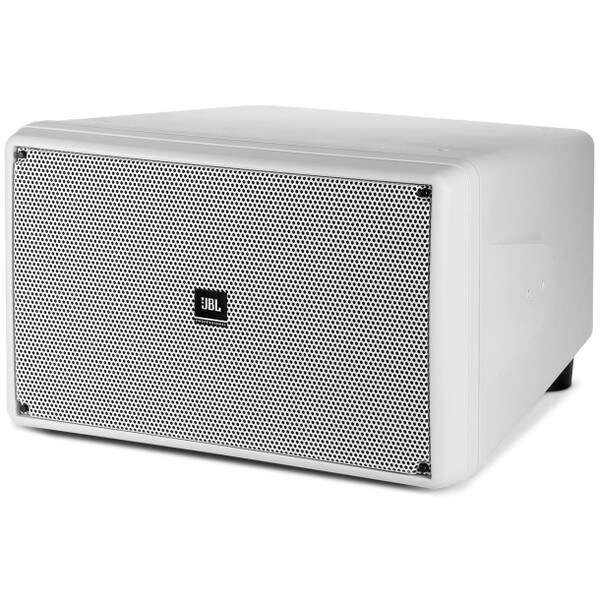

JBL Control SB2210-WH Dual 10" Compact Subwoofer WhiteThe Control SB2210-WH provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.
The internal angled baffle allows for a large port opening and compact front dimensions without compromising driver size. The Control SB2210-WH produces warm, punchy low-end sound.
The 10" diameter low-frequency drivers feature a long-excursion design and extended low-frequency performance. The driver’s woven fiberglass cone delivers robust performance and the highly damped butyl rubber surround and linear suspension spider design provide clean sound quality with lower distortion. The driver’s high temperature anodized aluminum voice coil former, voice coil wire, and adhesive ensure stable performance under long time high power working condition. An FEA optimized motor construction reduces harmonic distortion while an aluminum conductive ring coupled to the outside of the pole post reduces harmonic distortion.
Included with the Control SB2210-WH are four feet for floor and shelf placement. Thirteen M6 insert points allow for installation using forged shoulder eyebolts (with included bevel washers) for suspending the subwoofer, or for mounting to a wall or ceiling via the optional MTC-210UB U-Bracket. The cabinet is paintable. The thermoset composite-coated grille stands up to UV as well as humidity and direct exposure to water. The grille is backed with a combination of materials that, while acoustically transparent, prevent the intrusion of water into the cabinet.
Specifications:
• Frequency range: 38-500 Hz (-10 dB)
• Frequency response: 48-95 Hz (-3 dB)
• Power rating: 500 watts RMS (2000 watts peak) continous pink noise (2 hrs), 1000 watts continuous program, 400 watts RMS (1600 watts peak) continuous pink noise (100 hrs)
• Maximum input voltage: 60 Vrms, 120V peak
• Sensitivity: 95 dB 1W/1m in half-space
• Max SPL: 122 dB in half-space
• Nominal impedance: 8 ohms
• Minimum impedance: 7.2 ohms at 160 Hz
• Recommended filter: 45 Hz, 24 dB/oct high-pass filter
• Low frequency: Two 10" diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring
• Enclosure material: High impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold
• Grill: Thermoset composite coated steel, zinc-plated, 3-layer foam backing

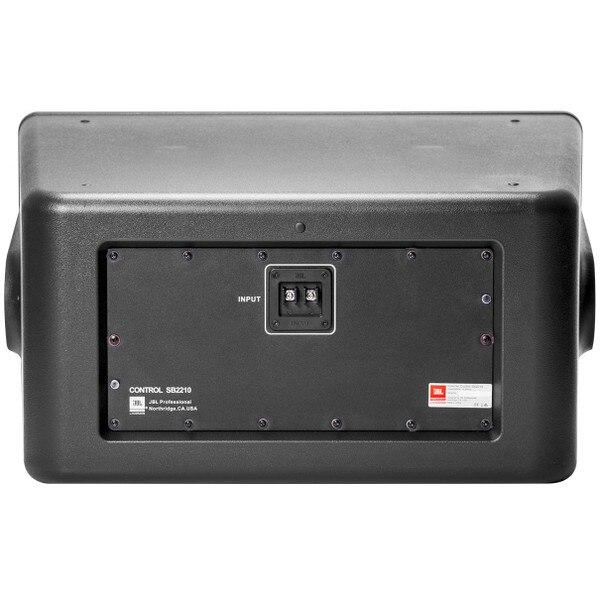

• Terminals: Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers
• Agency rating: RoHS compliant
• Environmental rating: IP45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.
• Included accessories: 1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet, 4 pcs beveled washers
• Dimensions (H x W x D): 14" H x 23.3" W x 22.5" D
