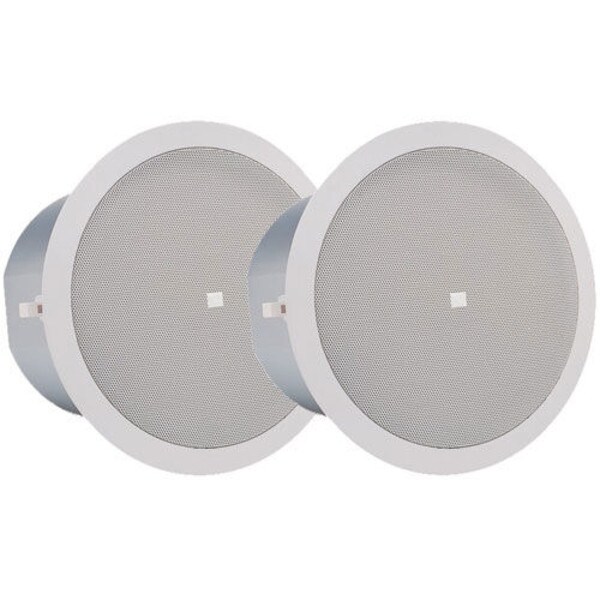

The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area of 110° conical. A steel back-can with removable locking connector is provided. The Control 26CT includes a multi-tap transformer for a 70V or 100V line distribution system.
Specifications: • Frequency response: 75 Hz to 20 kHz (-10 dB) • Power handling: 140 watts continuous program power (70W pink noise) • Sensitivity: 89 dB (1W/1m) • 70V taps: 60W, 30W, 15W, 7.5W • 100V taps: 60W, 30W, 15W • Dimensions: 8.3" x 9.9".
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
Product Details | |
|---|---|
| Brand | JBL Professional |
| Model | Control 26CT |
| Part Number | 246-8582 |
| UPC | 844632066146 |
| Unit of Measure | Pairs |
| Weight | 20.3 |
Product Specifications | |
|---|---|
| Input Rating | 70V|100V |
| Mounting Style | In-ceiling |
| Woofer Diameter | 6.5" |
| Special Features | Enclosed Back-UL1480-UL2043-Weather Resistant |
