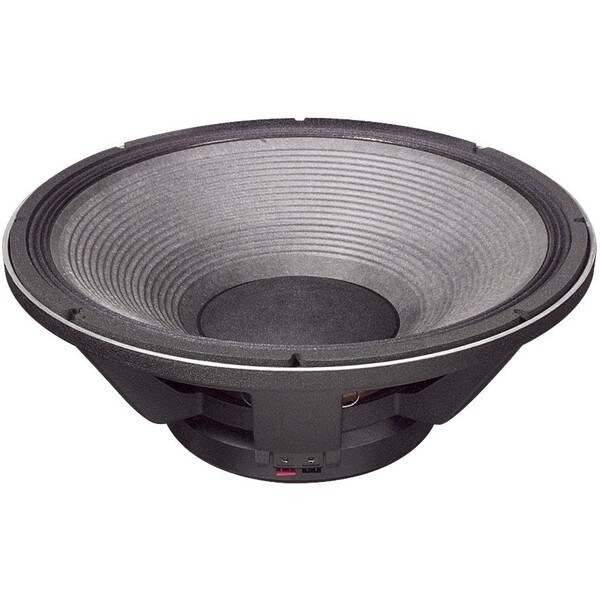

The 2242H is ideal for use in high output subwoofer systems with bass extension to 25 Hz. The total peak-to-peak excursion of the 2242H is 18 mm, within 10% linearity. The Super Vented Gap™ (SVG) series of low frequency transducers takes the patented Vented Gap Cooling™ (VGC) heat dissipation process one step further. A completely new motor structure design extends the pole piece above and below the top plate to improve gap flux symmetry and increase thermal conductivity from the voice coil to the pole piece. In addition to the benefits of Symmetrical Field Geometry™, these transducers also incorporate a copper shorting ring that is imbedded in the pole piece at the precise center of the gap and in close proximity to the voice coil. This ring results in a reduction of third harmonic distortion and a reduction of voice coil inductance, which improves the transducers' transient response.
Product Details | |
|---|---|
| Brand | JBL Professional |
| Model | 2242H |
| Part Number | 294-485 |
| UPC | 844632066955 |
| Unit of Measure | Each |
| Weight | 35.5 |
Product Specifications | |
|---|---|
| Nominal Diameter | 18" |
| Power Handling (RMS) | 800 Watts |
| Power Handling (MAX) | 1600 Watts |
| Impedance | 8Ω |
| Frequency Response | 25 to 1,600Hz |
| Sensitivity | 99dB 2.83V/1m |
| Voice Coil Diameter | 4" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 35Hz |
| DC Resistance (Re) | 4.7Ω |
| Voice Coil Inductance (Le) | 1.25mH |
| Mechanical Q (Qms) | 5 |
| Electromagnetic Q (Qes) | 0.29 |
| Total Q (Qts) | 0.28 |
| Compliance Equivalent Volume (Vas) | 10ft³ |
| BL Product (BL) | 23.7T·m |
| Maximum Linear Excursion (Xmax) | 9mm |
| Surface Area of Cone (Sd) | 1238.71cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 18.25" |
| Baffle Cutout Diameter | 16.85" |
| Depth | 8" |
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 1.28ft³ |
| Sealed F3 | 102Hz |
| Vented Volume | 2.52ft³ |
| Vented F3 | 65Hz |
California Prop 65WARNING: Cancer and Reproductive Harm
