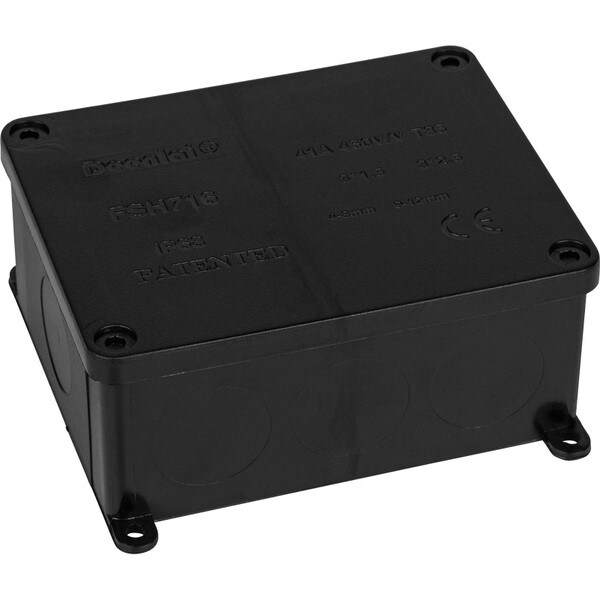

Indoor/Outdoor 4.7" x 3.74" x 2" IP68 Black Project Box with 3-Feed Through Waterproof Cable Gland Connectors

1 Question, 1 Answer or
Parts Express
Part #320-493

Indoor/Outdoor 4.7" x 3.74" x 2" IP68 Black Project Box with 3-Feed Through Waterproof Cable Gland Connectors

Parts Express
Part #320-493
1 Question, 1 Answer or

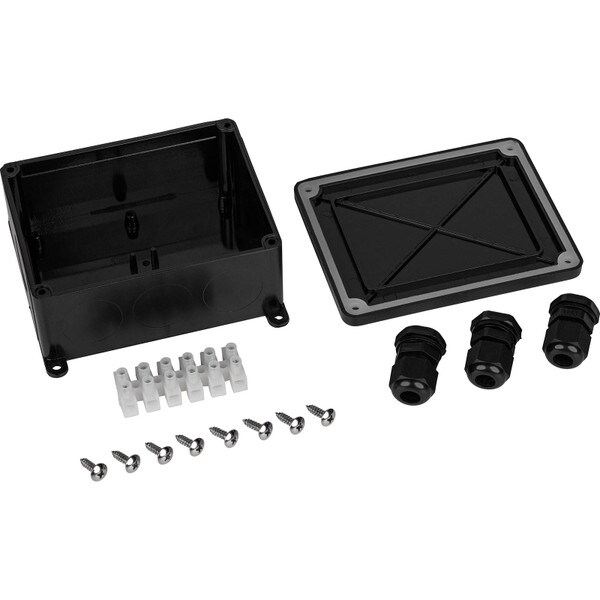

Use this IP68 waterproof enclosure to protect your next outdoor wiring project. The box includes three waterproof cable entry connectors and a 6-pole European terminal strip which makes it perfect for an outdoor junction box for solar panel, speaker, landscaping and lighting wire.
Key Features
  • IP68 waterproof protection for outdoor projects
  • Three waterproof cable feedthrough connectors with 3/4" (19 mm) cap nuts for project customization
  • 6-pole European terminal strip for quick wire installation for outdoor speaker wire and solar panel power wire
  • Includes eight #8-1/2" stainless steel screws that won't rust
  • Four outer mounting tabs with holes made for screws less than 3/16" in diameter to secure the box to most surfaces
Your Price: $13.98
MSRP: $19.99
Save $6.01 (30%)
Bulk Pricing
Quantity:Qty: 1-9 $13.98/ea
Quantity:Qty: 10+$12.58/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Indoor/Outdoor 4.7" x 3.74" x 2" IP68 Black Project Box with 3-Feed Through Waterproof Cable Gland Connectors

Protect your outdoor wire junctions and other projects with this IP68 waterproof enclosure. The rubber gasket in the lid prevents water from leaking into the box when using the included stainless steel screws. Three waterproof wire entry feed through connectors also prevent water penetration. This enclosure makes the perfect junction box for outdoor speaker wire and solar panel wire. The box has no predrilled holes enabling you to customize the box with two or three connectors. Each connector needs a 5/8" hole for mounting.

Specifications:

• Outer dimensions without mounting tabs: 3.74" x 4.75" x 2" (95 x 120 x 51 mm) with lid
• Inner dimensions if there are no standoffs or screw channels: 3.27 x 4.27 x 1.63 (84 x 109 x 41 mm)
• Holes required for waterproof connectors: 5/8"
• Standoff spacing: 1.85" (47 mm) between the three standoffs and 2.25"( 57 mm) between the two standoffs to center
• Waterproof connector dimensions without nut: 1.20" L x 0.6" Dia. (30.5 x 15 mm) with cap nut size 0.60" H x 0.82" Dia. (21 x 15.3 mm) at the largest point
• Nut sizes: Large nut 3/4" (22 mm), cap and smaller nut 3/4" (19 mm)
• Wire OD accepted: 0.14" to 0.28" (4 to 7mm)
• Terminal strip: 6-pole European style 450V, 41A, 10 mm spacing and accepts 18 to 10 gauge wire

Product Details

BrandParts Express
Part Number320-493
UPC848864067308
Unit of MeasureEach
Weight0.45

Product Specifications

Construction MaterialABS Plastic
