IP68 Waterproof Indoor/Outdoor Junction Box 3-Way

Parts Express
Part #320-491

IP68 Waterproof Indoor/Outdoor Junction Box 3-Way

Parts Express
Part #320-491

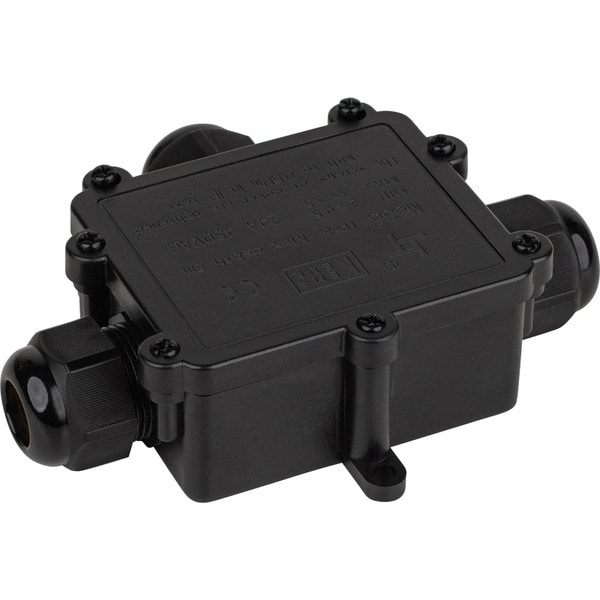

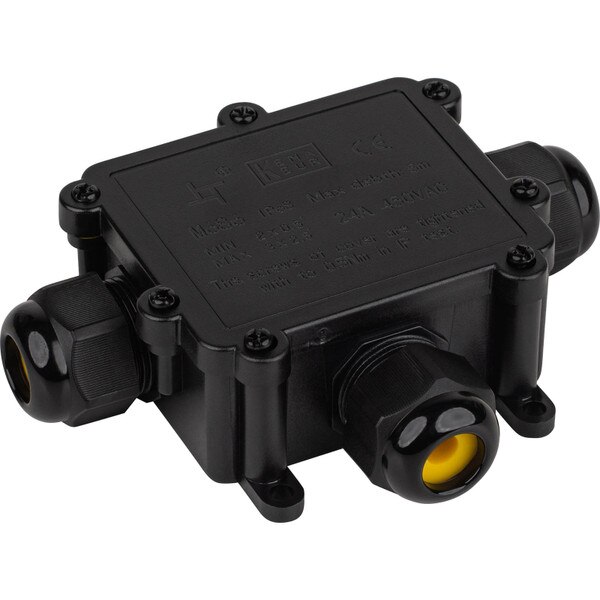

Use this IP68 waterproof enclosure to protect your next outdoor wiring project. The box includes three waterproof cable entry connectors and a 4-pole European terminal strip which makes it perfect for an outdoor junction box for solar panel, speaker, landscaping and lighting wire. The box also includes seven yellow soft rubber inserts to fit multiple size round cables.
Key Features
  • IP68 waterproof protection for outdoor projects
  • Three waterproof cable feedthrough connectors cap nuts for project customization
  • 4-pole European terminal strip for quick wire installation for outdoor speaker wire and solar panel power wire
  • Includes seven black screws that won't rust to keep the lid secure
  • Three outer mounting tabs with holes made for screws less than 7/32" in diameter to secure the box to most surfaces (screws sold separately)
  • 2.22" x 2.77" (70 x 56.4 mm) internal dimensions for small battery holders
Your Price: $7.48
MSRP: $14.99
Save $7.51 (50%)
Bulk Pricing
Quantity:Qty: 1-9 $7.48/ea
Quantity:Qty: 10+$6.68/ea
Order in the next 5 hr 7 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

IP68 Waterproof Indoor/Outdoor Junction Box 3-Way

Many outdoor projects require wiring that branches off in two different directions from the main feed. This 3-way IP68 waterproof junction box protects the exposed wires plus prevents having to solder heavy gauge conductors together. The internal 4-pole European terminal strip makes it easy to install wires up to 6 AWG.

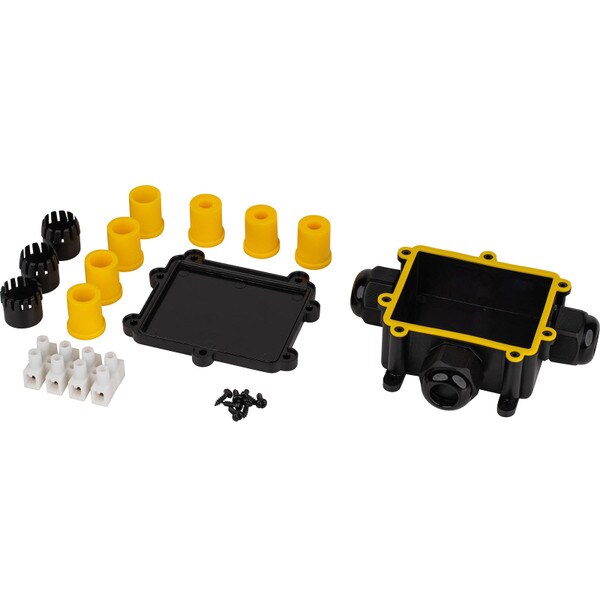

To help keep moisture out, this box comes with five soft rubber bushings to squeeze around the round wire jacket. One large bushing handles OD wire up to 1/2" (14 mm). Use this bushing to handle the main input wire which is usually the largest wire in the junction. It squeezes down to 1/3" (9 mm) if needed. Three of the bushings handle up to 13/32" (10 mm) OD wire and squeeze down to 1/5" (5 mm). One of these two may handle the main input also. The smallest three bushing inserts handle up to 5/16" OD wire and squeeze down to 1/8" (3 mm). The box, gasket, and all the bushings are ready to handle the conditions of the extreme outdoors. Whether it's sunny UV rays or heavy downpours of rain this box is ready to protect your outdoor wiring for LED lights, solar panels, outdoor speakers or other outdoor components.

Specifications:

• Outer dimensions without mounting tabs and connectors: 2.8" x 3.4" x 1.54" (71 x 86.5 x 39 mm) with lid
• Inner dimensions without terminal strip: 2.22 x 2.77 x 1.08 (56.4 x 70 x 28 mm)
• Waterproof connector shaft dimensions without nut or cap: 0.5" L x 0.98" Dia. (12.5 x 25 mm)
• Cap nut size 0.82" H x 1.19" Dia. (21 x 30 mm) at the largest point
• Wire OD accepted: 0.13" to 0.55" (3 to 14 mm)
• Terminal strip: 4-pole European style 500V, 50A, 12 mm spacing and accepts 18 to 6 gauge wire

Product Details

BrandParts Express
Part Number320-491
UPC848864067087
Unit of MeasureEach
Weight0.3

Product Specifications

Construction MaterialABS Plastic
