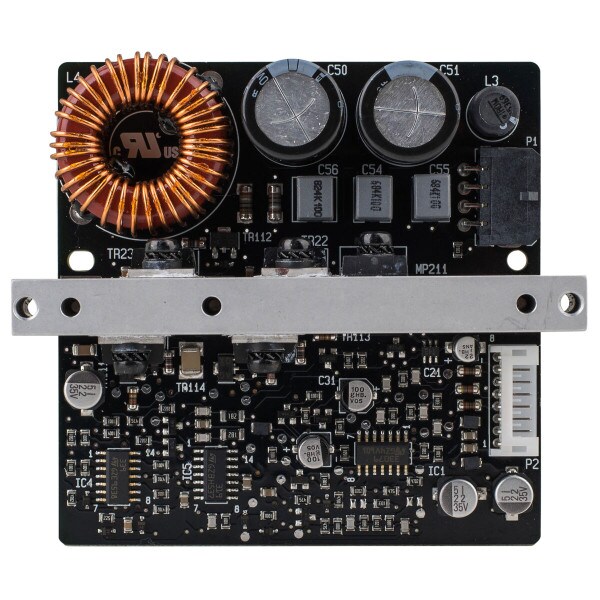

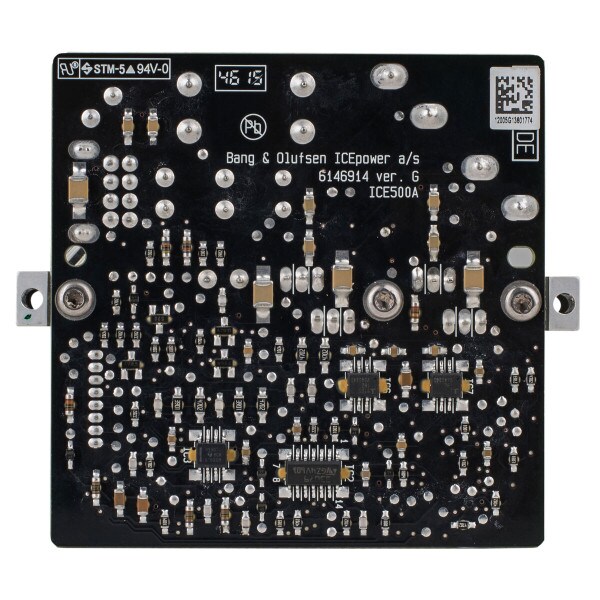

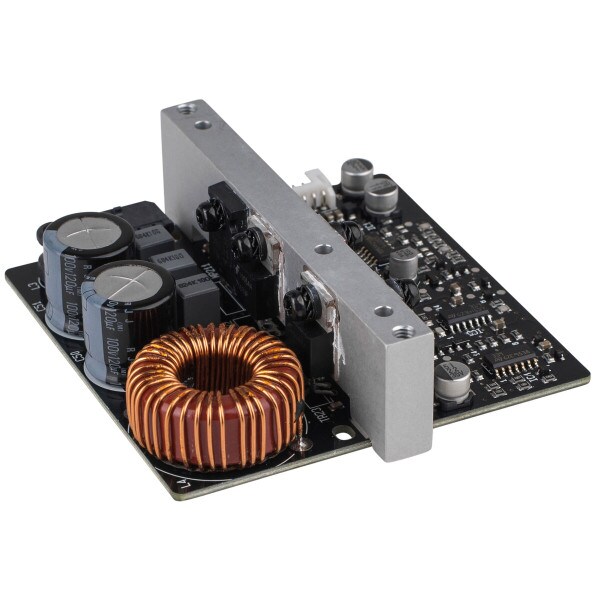

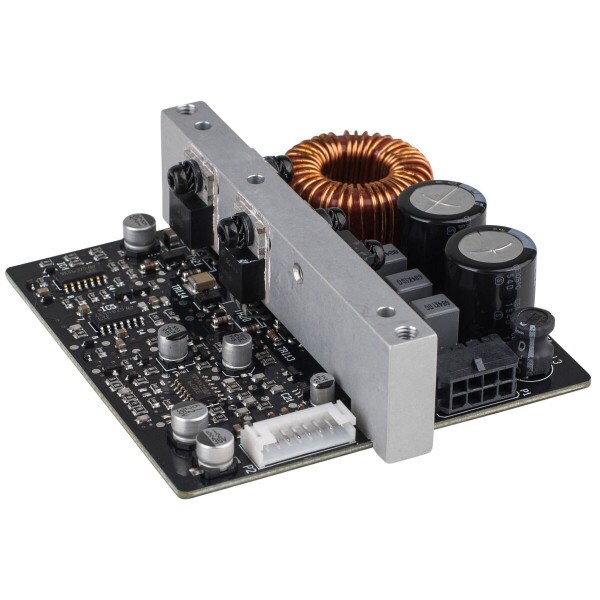

ICEpower 500A Class D Audio Amplifier Module 1 x 500W

ICEpowerPart # 326-200
Model: 500A
Easily add the ICEpower 500A to the 500ASP, or 1000ASP ICEpower amp boards to create an active 2 or 3-way professional speaker or stereo amplifier. It gets its DC power from either of these two ICEpower amp boards eliminating the need for an extra power supply.

Key Features

  • Rugged 70g construction for durability
  • Soft start-up and mute/de-mute eliminates popping noises
  • Under-voltage protection for longevity
  • Standby mode for quick power-up
  • Pre-approved for Safety, EMC and RoHS compliance
  • Full 20-20,000 Hz audio bandwidth
  • Balanced input and output
Your Price: $101.48
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-3 $101.48/ea
Quantity:Qty: 4-9 $96.41/ea
Quantity:Qty: 10+ $92.55/ea
Out of Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEpower 500A Class D Audio Amplifier Module 1 x 500W

Add one or two of these 500A modules to 500ASP, or 1000ASP ICEpower amp boards to create an active 2 or 3-way speaker system. This enables each speaker in the system to have its own amplifier verses sharing power with a single amplifier. The 500A will get all its 80 VDC from the ASP series amp boards to deliver 500W RMS at 4 ohms and even more with 2-ohm stability.

Note:Requires the 326-144 ICEpower Amplifier Module 500A Wiring Harness Kit to attach to the ASP series amp boards (sold separately).


Like the ASP series, the ICEpower 500A withstands 70 G-force shock to each side of the board. This along with the under-voltage and thermal protection ensure long life under live concert conditions. Make a high power, fanless stereo amp, 2-way, or 3-way powered speaker by adding this amp board to the 500ASP, or 1000ASP.


ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This helps repair shops give quicker and more accurate estimate times when ordering ICEpower replacement boards, and makes it easier than ever to acquire ICEpower amp modules for your projects. Continental USA DIYs, OEMs, and repair shops also save money by eliminating international shipping cost.

Specifications: • Wattage output: 500W RMS @ 4 ohms 0.02% THD+N, 1 kHz • Frequency response: 20 Hz to 20,000 Hz, all loads • Dynamic range: 117 dBA • Total efficiency: 93% @ 300W, 8 ohms • Input voltage: 80 VDC • Dimensions: 3.55" W x 3.12" D x 1.04" H.

Product Details

BrandICEpower
Model500A
Part Number326-200
UPC848864053776
Unit of MeasureEach
Weight0.65

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)101 - 250 Watts
