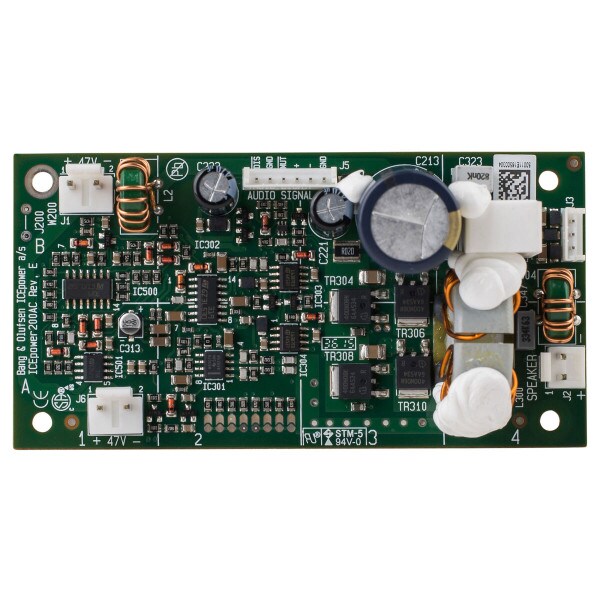

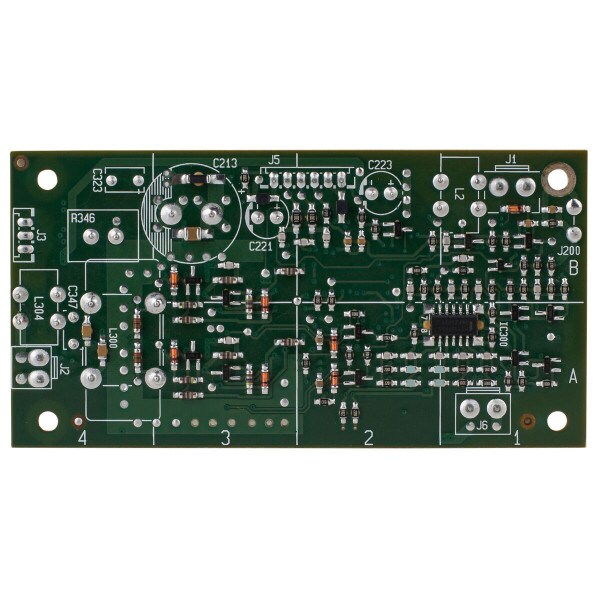

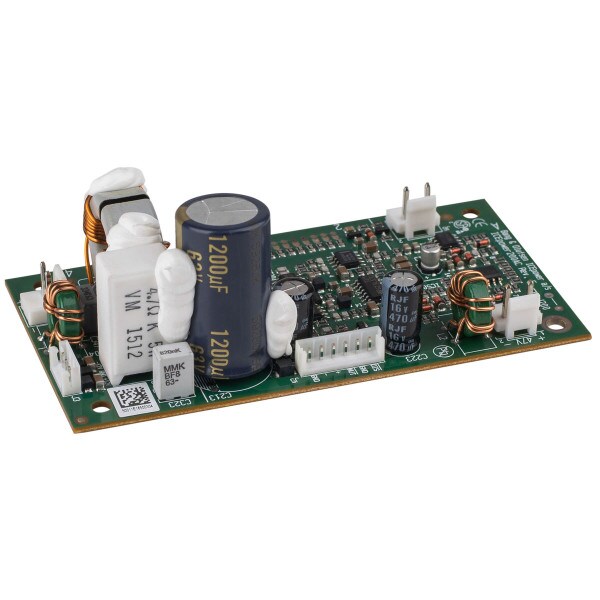

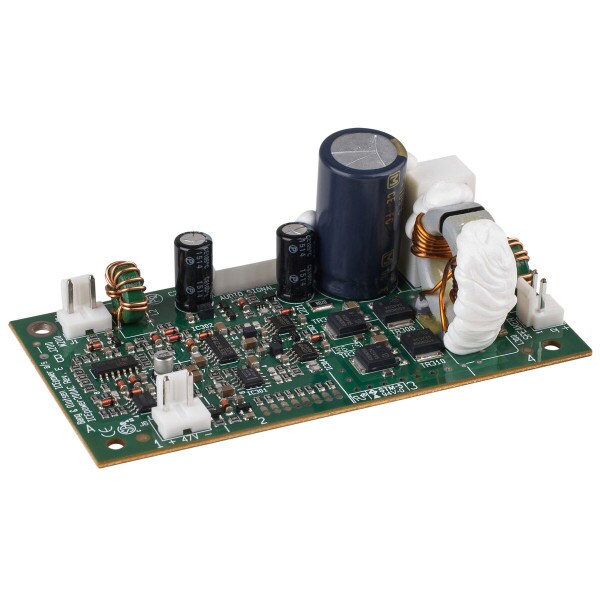

CLEARANCE ICEpower 200AC Class D Audio Amplifier Module 1 x 200W

ICEpowerPart # 326-210
Model: 200AC
The 200AC is the amplifier section of the 200ASC. It is a great sounding 1x 200W class D amplifier which can be powered from the DC hanger bus of the 200ASC. This makes it great for creating 2-way and 3-way active speakers with the 200ASC.

Key Features

  • Powered by 200ASC and 500ASP eliminating additional power supplies
  • ICEpower's patented COM modulation and MECC control techniques ensure excellent audio performance
60 Day No Hassle Return Policy

Overview

ICEpower 200AC Class D Audio Amplifier Module 1 x 200W

The ICEpower 200AC is a "hanger" amp module powered by the ICEpower DC Bus integrated in the ICEpower 200ASC and 500ASP amp modules. These two amp modules handle up to two additional ICEpower200AC amplifier modules from the integrated power supply. This full compatibility with the ICEpower200AC modules offers a flexible and powerful building block concept for multi-way and multi-channel audio system design.

Note:Requires the 326-142 ICEpower Amplifier Module 200AC Wiring Harness Kitto attach to the 200ASC amp board (sold separately).

Specifications: • Wattage output: 1 x 200W RMS @ 4 ohms 0.2% THD+N, 10-20,000 Hz • Frequency response: 10-20,000 Hz all loads • Dynamic range: 110 dBA • Total efficiency: 79% @ 200W 4 ohm • Input voltage: 47 VDC • Maximum output current limit: 12.5A • Dimensions: 4.23" W x 2.2" D x 1.5" H.

Product Details

BrandICEpower
Model200AC
Part Number326-210
UPC848864053837
Unit of MeasureEach
Weight0.55

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)51 - 100 Watts
