  • ICEpower 100AS1 Class D Amplifier Module with Built-In Power Supply 1 x 100W

ICEpower 100AS1 Class D Amplifier Module with Built-In Power Supply 1 x 100W

ICEpowerPart # 326-260
Model: 100AS1
ICEpower's 100AS1 contains a fly back power supply with a continuous power capability of 100W and a short-term power of 300W, combined with a 1 x 100 W class D amplifier. The 100AS1 is perfect for making active speakers, studio monitors as well as 1-channel guitar or bass amplifiers without the need of a fan.

Key Features

  • AC plug-to-speaker amplification audio solution offering flexible 1 x 100W output all-in-one mini-PC board
  • Built-in circuits for shorts, over-current, and thermal protection
  • No noisy fan needed
  • High current output stages, designed to comfortably drive any speaker load from 3 ohms and up
  • Perfect size and wattage for active bookshelf, computer, or satellite home theater speakers
  • Power supply automatically adjusts from 85~264 VAC for worldwide versatility
Your Price: $119.98
+ FREE SHIPPING
Bulk Pricing
In Stock
Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEpower 100AS1 Class D Amplifier Module with Built-In Power Supply 1 x 100W

All-In-One Fanless AMP & Power Supply Board

The 100AS1 sets a new industry benchmark in audio performance, efficiency, and power density, made possible by adapting the very latest ICEpower technological advances. Its mini size foot print, 1 x 100W, and fanless design creates limitless possibilities for small active mono, or single channel speaker creations that pack-a-punch. With the optional wiring harness bundle, sold separately, create bass amplifiers, subwoofers as well as industrial applications. Add a Bluetooth receiver board (sold separately) for wireless audio projects. The rugged construction keeps the music playing for years even when moving from place-to-place. There are endless possibilities using this compact, combination power supply 1 x 100W amp board for your next audio project.

ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.

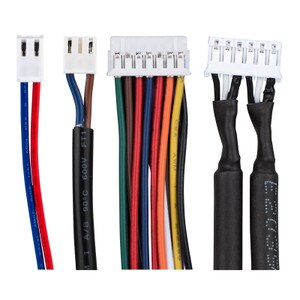

Note:Requires the 326-192 ICEpower Amplifier Module 100AS1 Wiring Harness Kitfor full stand-alone functionality (sold separately).

Specifications: • Power output: 1 x 100W RMS @ 4 ohms 1% THD+N, 1 kHz • Frequency response: 20-20,000 Hz • Dynamic range: 109 dBA • Total efficiency: 72% @ 100W, 4 ohm • Unregulated auxiliary power supply: +8 and +/- 17 VDC @ 200 mA • Input voltage: 100~240 VAC 50/60 Hz • Maximum output current limit: 12.5A • Dimensions: 5.51" W x 3.03" D x 1.44" H (140 x 77 x 36.5 mm).

Product Details

BrandICEpower
Model100AS1
Part Number326-260
UPC848864074368
Unit of MeasureEach
Weight1.65

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)51 - 100 Watts
