  • HiVi DM-7500 3" Soft Dome Midrange Driver 6 Ohm

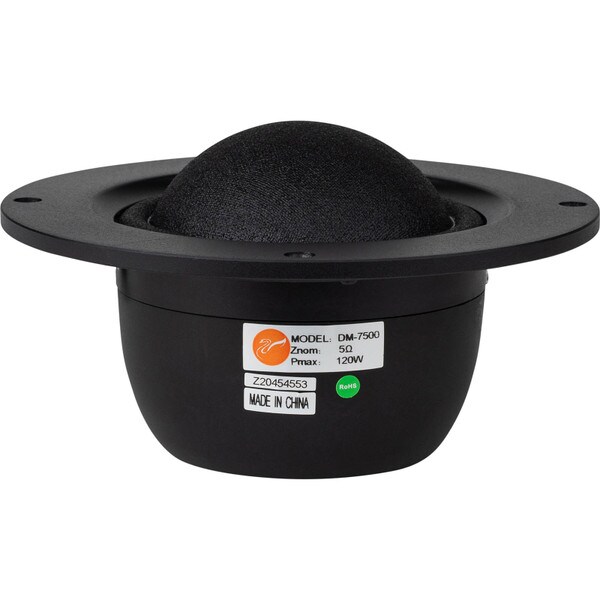

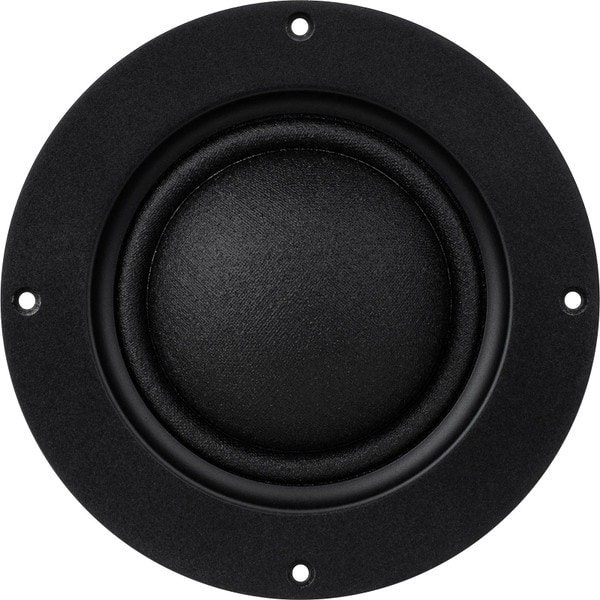

HiVi DM-7500 3" Soft Dome Midrange Driver 6 Ohm

HiViPart # 297-470
Model: DM-7500
The Hi-Vi DM-7500 3" dome midrange offers a superb frequency response and low-distortion naturalism as an upgrade or affordable choice for a custom designed 3-way speaker.

Key Features

  • Treated fabric dome with special damping material
  • Aluminum voice coil former
  • CCA voice coil wire for increased power handling
  • Dual magnet fully symmetrical magnetic circuit (SMD)
Your Price: $112.98
+ FREE SHIPPING
MSRP: $162.99
Save $50.01 (31%)
Bulk Pricing
Quantity:Qty: 1-3 $112.98/ea
Quantity:Qty: 4-9 $107.98/ea
Quantity:Qty: 10+ $102.98/ea
12 In Stock
Get Notified When Available

We'll send you an email when HiVi DM-7500 3" Soft Dome Midrange Driver 6 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi DM-7500 3" Soft Dome Midrange Driver 6 Ohm

The Hi-Vi DM-7500 is a small marvel of engineering. It boasts an internal phase-guided resonance structure which reduces the Q value of the driver, lowering distortion and extending the low-frequency response range allowing this to be used with woofers of just about any size. The dual-magnet fully symmetrical motor structure (SMD) helps increase sensitivity and further decrease distortion.

The DM-7500 is a stellar performer with a broad frequency response, natural and transparent tone characteristics and above average build quality. The Hi-Vi DM-7500 3" dome midrange is the perfect marriage between form, function and affordability.

Product Details

BrandHiVi
ModelDM-7500
Part Number297-470
UPC848864070551
Unit of MeasureEach
Weight2

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter5.625
Power Handling (RMS)20 Watts
Power Handling (MAX)120 Watts
Impedance5Ω
Frequency Response350 to 6,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter2.95"

Thiele-Small Parameters

Resonant Frequency (Fs)300Hz
DC Resistance (Re)4.1Ω

Materials of Construction

Cone MaterialSoft Dome
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter6.125"
Baffle Cutout Diameter4.75"
Depth2.5"
# Mounting Holes4
