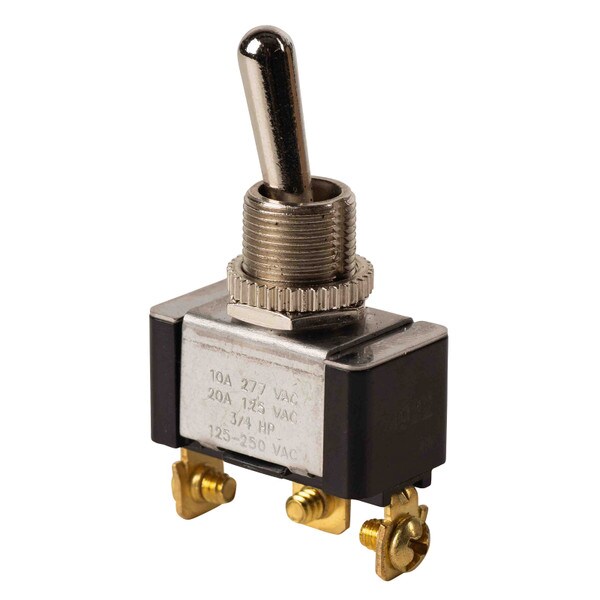

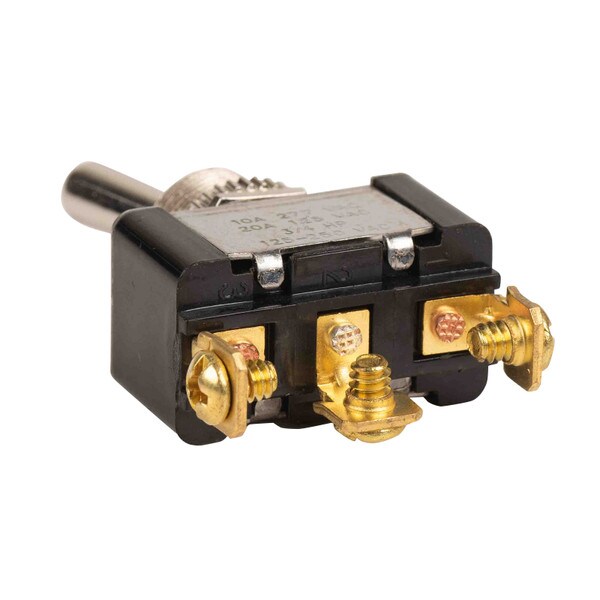

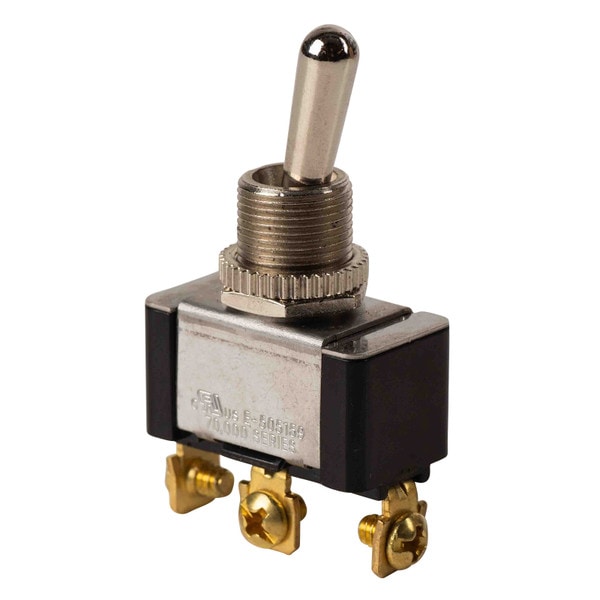

Heavy Duty Toggle Switch SPDT Momentary (On/On)

PhilmorePart # 060-457

SPDT momentary toggle switch that wires NC or NO for 20A 125 VAC applications.

Key Features

  • SPDT momentary action enables multiple applications
  • Screw terminals for easy installation
  • Gold plated brass terminals for long lasting connectivity
  • Mounts in standard d 1/2" hole
Your Price: $8.49
MSRP: $9.98
Save $1.49 (15%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Heavy Duty Toggle Switch SPDT Momentary (On/On) is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Heavy Duty Toggle Switch SPDT Momentary (On/On)

SPDT momentary toggle switch that wires NC or NO for 20A 125 VAC applications. It also handles 277 VAC @ 10A and ¾ HP. This switch has multiple applications. Use just two of the terminals for NO or NC momentary action. NO for use as a starter switch or NC as a reset switch. Use all three terminals for always on in one direction and momentary on in the other direction.

Dimensions: Body: 1-1/8" W x 5/8" D x 21/32" H without terminals • Shaft: 1/2" L x 15/32" Dia. • Togle handle: 21/32" H x 1/4" Dia. at it's widest point • Terminals: 9/32" W x 1/32" D x 11/32" H.

Product Details

BrandPhilmore
Part Number060-457
UPC848864077499
Unit of MeasureEach
Weight0.05

Product Specifications

CircuitSPDT Momentary On-On
Contact Rating @ Voltage20A
IlluminationNon-Illuminated
