CLEARANCE HDMI 2.0 Audio Extractor

Parts ExpressPart # 180-1103
More television manufacturers are omitting RCA analog audio outputs, leaving owners of legacy stereo equipment in the lurch. The solution is this HDMI audio extractor that extracts the audio out of your HDMI signal, while allowing the full signal to pass through.

Key Features

  • Pulls the audio signal from HDMI source and converts to analog and digital signals to use with older audio equipment
  • Built-in EDID emulator for 2-channel and 5.1-channel audio
  • CEC bypass prevents loss in video resolution
  • Audio sample rates up to 192 kHz
  • Supports HDMI high bit rates (HBR) audio
Get Notified When Available

We'll send you an email when HDMI 2.0 Audio Extractor is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

HDMI 2.0 Audio Extractor

Adding equipment to your home theater system is difficult when devices don't share the same technology. It is often necessary to find a work-around such as connecting an HDMI to the television and running a Toslink cable back to the AV receiver. This is a difficult and costly exercise, and you might not get the audio signal that you want.

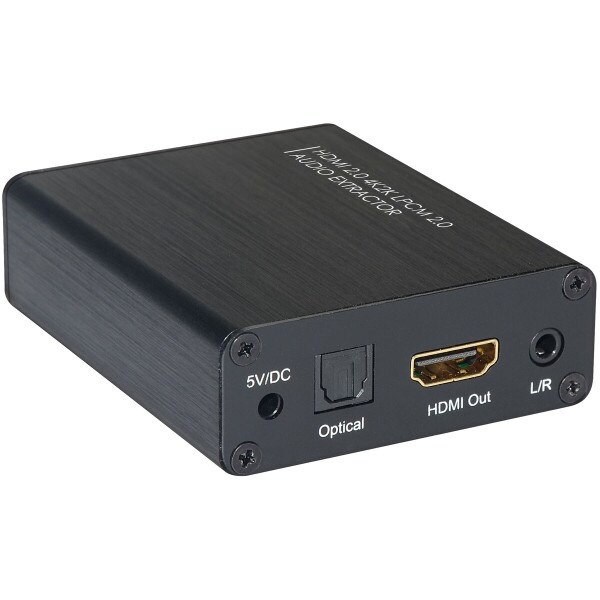

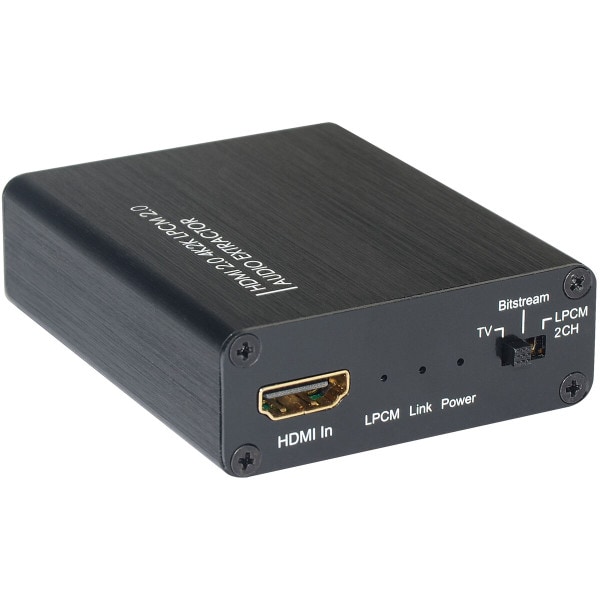

The HDMI 4K2K LPCM extractor enables you to extract audio signals from your HDMI source. When connecting to a TV or display you don't always get the best audio, or in the case of a PC monitor, no audio at all. With this audio extractor you take your original HDMI audio signal and convert it to digital optical or analog multi-channel audio. This lets you send and audio signal to external powered speakers, Bluetooth transmitter, or extend a audio signal pathway. Use the three position switch on the front of the extractor to match the sources audio EDID. Meanwhile, the HDMI output sends a true 4K2K video without down grading the resolution.

Specifications: • HDMI video support: 4K2K@60Hz (YUV4:4:4) • Power Requirements: 5 VDC, 2A • HDMI audio formats: LPCM 2/5.1 Ch, DTS 2~5.1 Ch, and DTS-HD master audio • Optical format: LPCM 2 Ch, and DTS 2~5.1 Ch • L/R audio format: 3.5 mm 3-conductor phone jack • Video bandwidth: 18 Gbps • Dimensions: 2.5" W x 3.1" D x 0.9" H (65 x 78 x 24 mm).

Product Details

BrandParts Express
Part Number180-1103
UPC848864056562
Unit of MeasureEach
Weight0.45
