  • HDMI 1-Input 4-Output 3D Amplified Splitter IR Compatible

CLEARANCE HDMI 1-Input 4-Output 3D Amplified Splitter IR Compatible

Parts ExpressPart # 180-598
Up to four digital displays can be connected to this 1-input, 4-output splitter. It includes signal compensation that expands the maximum operating distances between components.

Key Features

  • Built-in extender transmits video over 100 feet
  • Supports full HD1080p 24fps, 60Hz
  • Works with the Easy IR Extender kit to provide IR capability
  • Small size fits almost anywhere
  • Supports 3D video
Get Notified When Available

We'll send you an email when HDMI 1-Input 4-Output 3D Amplified Splitter IR Compatible is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

HDMI 1-Input 4-Output 3D Amplified Splitter IR Compatible

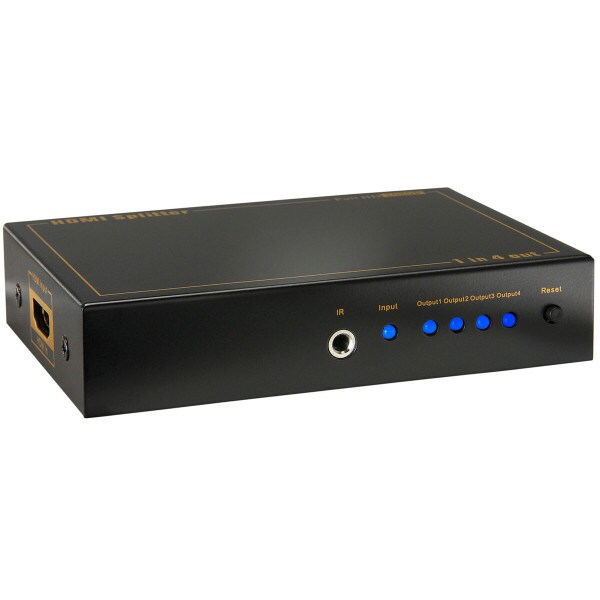

Designed to HDMI 1.4 specification to support 3D video, this HDMI Splitter/Extender distributes one HDMI signal to four HDMI equipped displays. Built-in signal compensation enables the splitter to be up to 20 meters from the source and 15 meters from the display (using 24 AWG cables). When used with the Easy IR Extender kit (sold separately), equipment can be controlled without installing additional wires. LED display shows activity (blue) or inactivity (red) of the device. The small size of these splitter/extenders allows them to be placed almost anywhere.

Features: • Supports 3D video • HDCP 1.2 compliant • Bandwidth: 2.22 Gbps per channel, 6.65 Gbps total • Supports Full HD1080p 24fps, 60Hz • Supports deep color 30 bit and 36 bit • Supports resolution up to 1920 x 1200 • Supports standard 24 bit color (RGB/YPbPr) and xvYCC color space • Supports DTS-HD, true-HD, LPCM7.1, AC3, DTS and DSD audio formats.

Product Details

BrandParts Express
Part Number180-598
UPC844632092275
Unit of MeasureEach
Weight1.32

Product Specifications

Audio Input/OutputHDMI
Video Input/OutputHDMI
