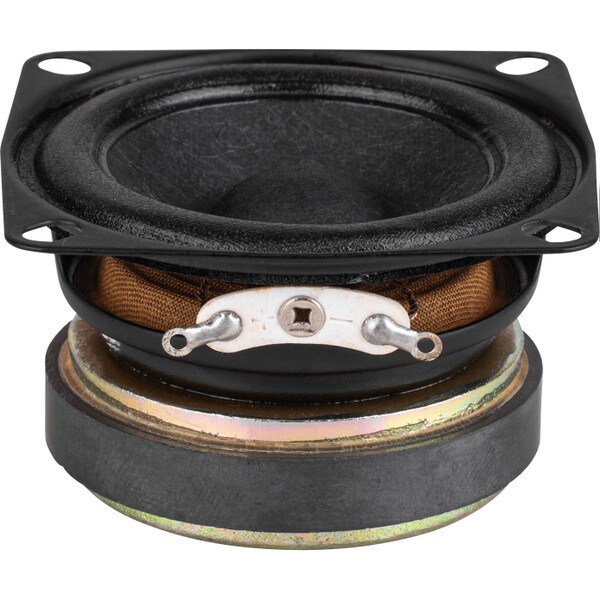

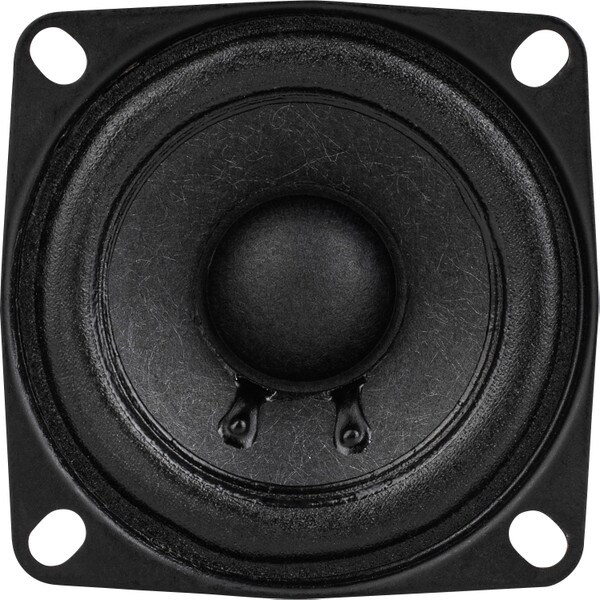

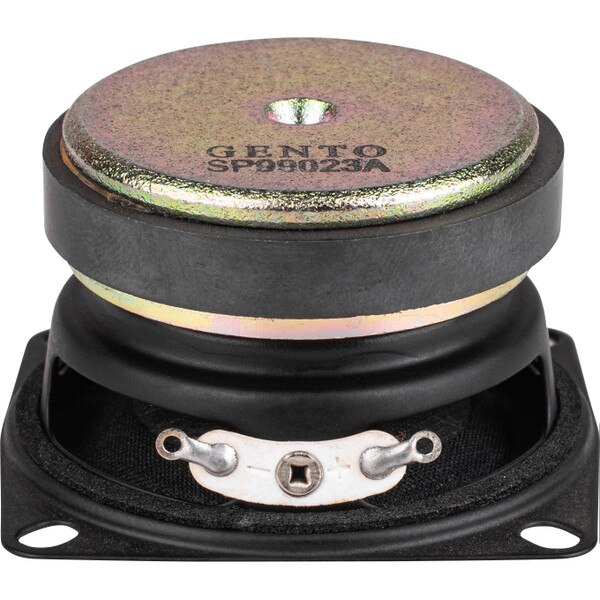

BUYOUT Gento SP99023A 2" Paper Cone Full-Range Speaker 4 Ohm

Factory Buyouts
Part #299-546

BUYOUT Gento SP99023A 2" Paper Cone Full-Range Speaker 4 Ohm

Factory Buyouts
Part #299-546
Model: ZSP99023A
The Gento SP99023A 2" mini full-range driver's compact design makes it easy to add audio capability to almost any project. The paper cone and cloth surround provide natural response and allows enough excursion for a surprisingly full sound. Perfect for use in portable designs and sound bars, this full-range is an incredible value.
Key Features
  • High mechanical excursion capability avoids damage under a demanding load
  • Powerful motor and 4 ohm impedance for maximum sensitivity
  • Excellent damping properties to produce smooth and natural response
  • Compact size is perfect for sound bars and portable Bluetooth designs
60 Day No Hassle Return Policy

Overview

Gento SP99023A 2" Paper Cone Full-Range Speaker 4 Ohm

The compact Gento SP99023A 2" full-range driver give you the ability to add high quality audio capability to almost any project. At only 2-1/16" square, this driver can fit even when you have very little space to work with. The non-resonant, low mass cone/surround assembly enables this driver to deliver wide bandwidth response with minimal peaks for a smooth and full sound. Whether your building a compact speaker design or adding audio to toys, artwork, or models this driver is an unbeatable value.

Product Details

BrandFactory Buyouts
ModelZSP99023A
Part Number299-546
UPC848864062020
Unit of MeasureEach
Weight0.25

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter2.375
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance4Ω
Frequency Response250 to 16,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)263Hz
DC Resistance (Re)3.2Ω
Voice Coil Inductance (Le)0.22mH
Mechanical Q (Qms)2.5
Electromagnetic Q (Qes)1.3
Total Q (Qts)0.85
Compliance Equivalent Volume (Vas)0.006ft³
Mechanical Compliance of Suspension (Cms)0.78mm/N
BL Product (BL)1.41T·m
Maximum Linear Excursion (Xmax)0.75mm
Surface Area of Cone (Sd)12.5cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter2.0625" x 2.0625"
Baffle Cutout Diameter1.8"
Depth1.25"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.01ft³
Sealed F3285Hz
Vented Volume0.27ft³
Vented F3159Hz
