Gemini UHF-6100M 512.0-537.5 MHz Single Channel Wireless UHF PLL System

GeminiPart # 235-130
Model: UHF-6100M

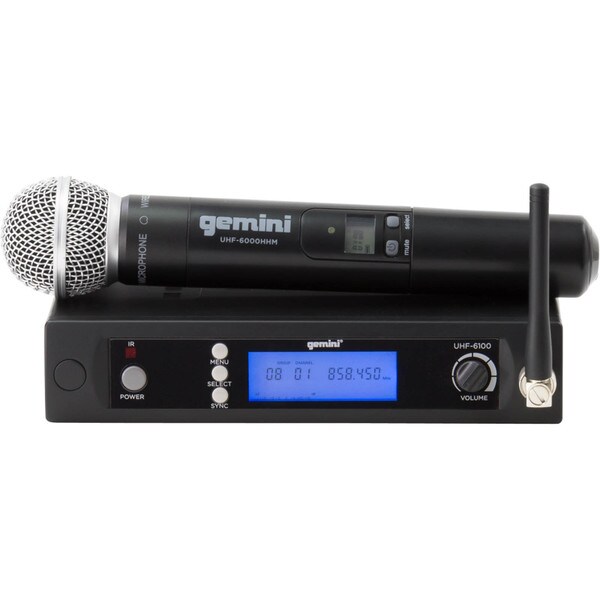

The Gemini UHF-6100M is a lightweight, noise-free, rugged single channel wireless microphone system. It is the ultimate wireless solution for fitness instructors, musicians, active performers, or anyone who needs untethered movement on stage.

Key Features

  • State-Of-The-Art UHF single channel receiver with frequency selectivity between 512-537.2MHz
  • Features a full-range volume rotary controls that allows the ultimate level of control for each microphone
  • Dynamic operation range of 240 feet
Your Price: $99.95
+ FREE SHIPPING
MSRP: $149.95
Save $50.00 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Gemini UHF-6100M 512.0-537.5 MHz Single Channel Wireless UHF PLL System is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Gemini UHF-6100M 512.0-537.5 MHz Single Channel Wireless UHF PLL System

The UHF-6100M takes the specs from the UHF-01M and bumps them up a a few notches. The UHF-6100M has user selectable frequencies, extended microphone range, better vocal clarity and lower distortion, all while meeting Gemini’s all-time low-price point that can’t be beat. The UHF-6100M wireless system Features a state-of-the-art UHF single channel receiver with selectable frequency options from 512 to 537.5 MHz to give you crystal clear sound that will carry across any room - up to 240 feet. System includes a frequency selectable single channel receiver and one handheld microphone.

Transmitter Specifications
• Frequency Range: 512-537.2 MHz
• Frequency Stability: 10ppm
• Spurious Emission: >65dB
• Modulation: FM
• Max Deviation: +75kHz
• Power Supply: 3V (2 AA batteries)
• Current Consumption: 120mA

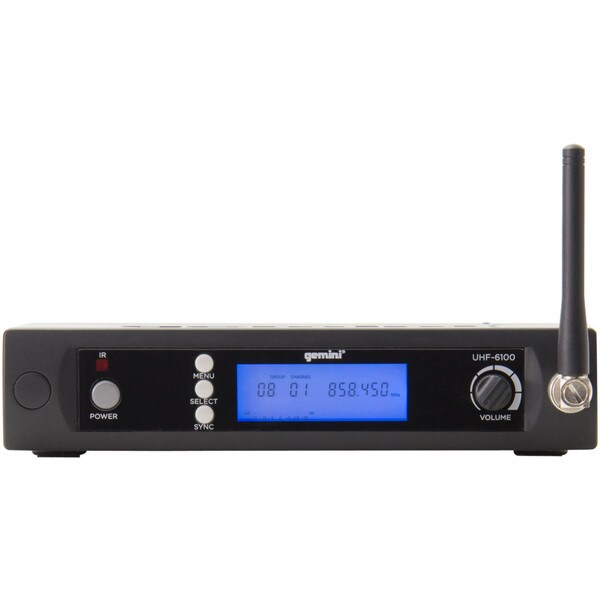

Receiver Specifications
• Frequency Range: 512-537.2MHz
• Frequency Stability: 10ppm
• Sensitivity: 13dBuV
• Adjacent Channel Rejection: 75dB
• Audio Output Level: 200mV RMS

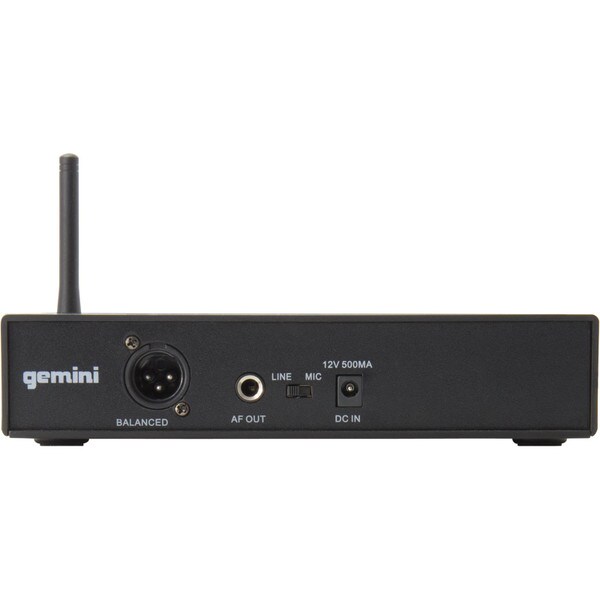

• Output Impedance: XLR: 200 ohm, 1/4": 1k ohm
• S/N Ratio: >100dB
• THD: <0.1%
• Audio Output Level: <1V (10kHz)
• Power Supply: DC12V

Product Details

BrandGemini
ModelUHF-6100M
Part Number235-130
UPC747705006677
Unit of MeasureEach
Weight3.4

Product Specifications

Frequency BandUHF
