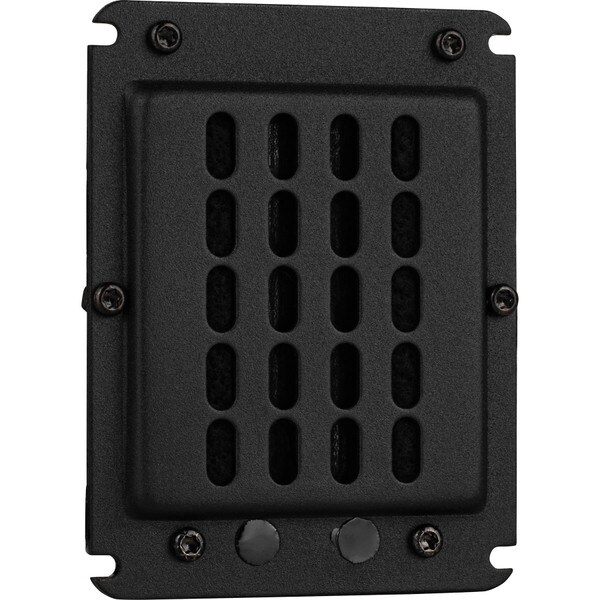

GRS PT2522C-4 3-1/2" Planar Tweeter 4 Ohm
Designed to deliver high efficiency with extremely smooth response.

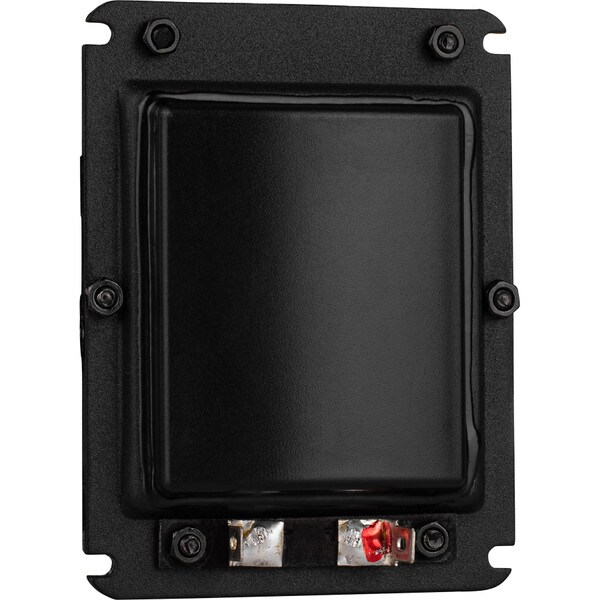

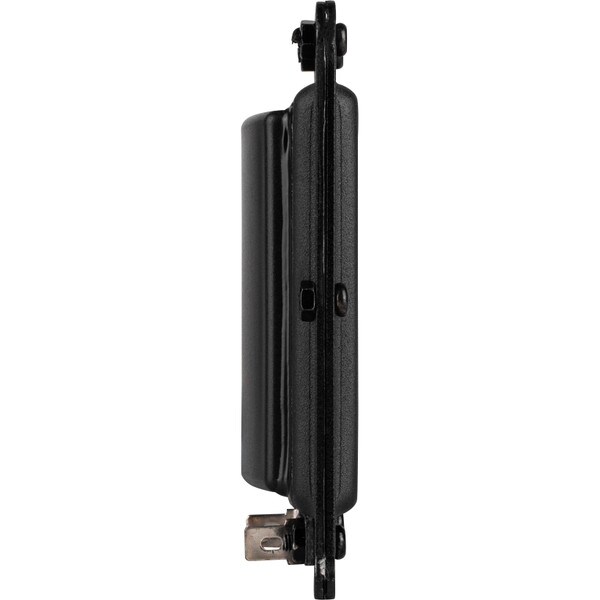

The PT2522C-4 is a perfect choice for use as a drop-in replacement in existing systems or for use in new designs where low distortion and accurate response is needed. The sealed rear chamber isolates the rear side of the diaphragm for simple installation into conventional enclosures.
Key Specs:
- Tweeter Type: Planar Magnetic
- Power Handling (RMS): 20 Watts
- Power Handling (MAX): 40 Watts
- Impedance: 4Ω
- Frequency Response: 1800 - 20,000 Hz
- Sensitivity: 94dB 2.83V/1m
- Diaphragm Material: Polyethylene Naphthalate
Frequency Response & Impedance
Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm that is driven by 6 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and low distortion. The linear 3.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off.

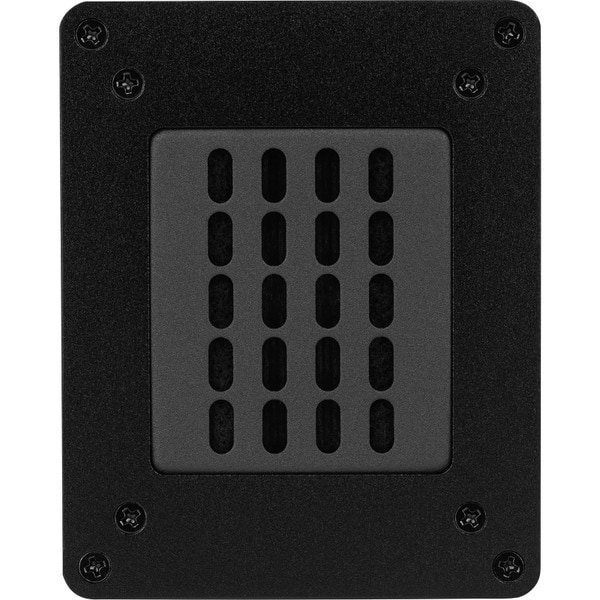

Optional Faceplate Available
Add the final touches to any build that uses the PT2522-4 with the optional faceplate! When the tweeter is attached to the faceplate, the resulting shape is easier to flush mount into your speaker baffle, creating a clean aesthetic and reducing diffraction.
Buy Now!Shop all GRS Planar Tweeters and Faceplates
GRS Planar Tweeters provide great transients, and frequency response at the fantastic value you expect from GRS
