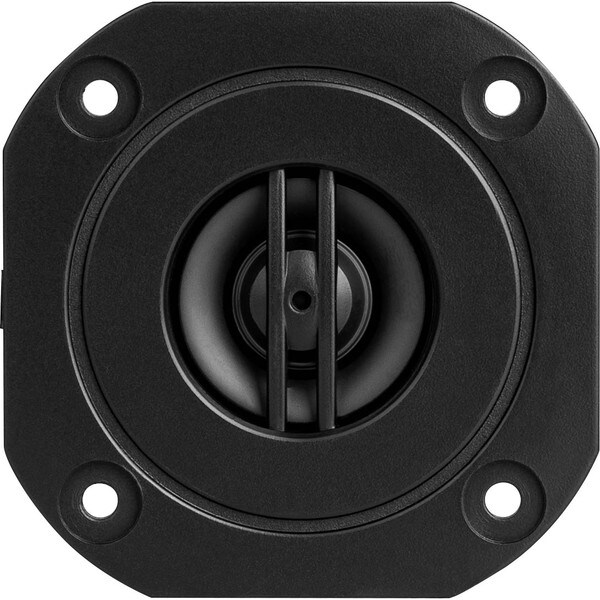

GRS DTM-8 1/2" Poly Dome Tweeter

GRSPart # 292-437
Model: DTM-8
The GRS DTM-8 is an 8ohm, 10 watt, ½” poly dome tweeter with a 2.4” (60mm) square faceplate. Great off-axis response and high sensitivity for use in 2-way and 3-way system makes this perfect as a replacement tweeter or for your next DIY project!

Key Features

  • ½” poly dome tweeter provides great replacement value
  • Great off-axis response for a wide sweetspot
  • High-efficiency output for increased SPL
  • Wide bandwidth from 5kHz-20kHz
  • Low profile fits in the tightest of spaces
Similar items that may interest you:
GRS 1TM-4 1" Mylar Tweeter 4 Ohm
Price: $4.29Part # 292-438
Goldwood GT-302 1/2" Mylar Dome Tweeter
Price: $5.98Part # 270-170
See all items in Tweeters
Your Price: $3.58
+ FREE SHIPPING
MSRP: $5.99
Save $2.41 (40%)
Bulk Pricing
Quantity:Qty: 1000+ $3.58/ea
Back-Ordered
Get Notified When Available

We'll send you an email when GRS DTM-8 1/2" Poly Dome Tweeter is back in stock or available for preorder.

Ships in 90-120 days, minimum order quantity 1,000 pcs.
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS DTM-8 1/2" Poly Dome Tweeter

GRS DTM-8 1/2" Poly Dome Tweeter

High-Frequency At A Low Cost

The GRS DTM-8 is a poly dome tweeter with low distortion characteristics and predictable performance, making this a great component for speaker designers. The direct drive design and built-in phase plug enhance off-axis performance, giving you better sound all around!

Key Specs:


  • Power Handling (RMS): 5W
  • Power Handling (MAX): 10W
  • Impedance: 8ohm
  • Frequency Response: 5kHz-20kHz
  • Sensitivity: 96dB @ 2.83v/1m
  • Voice Coil Diameter: 1"


Frequency Response & Impedance Curve

the GRS DTM-8 has a wide frequency response from 5kHz to 20kHz and has a highly uniform off-axis response. This uniformity lends itself well to high-frequency applications in full range cabinets.



High Value



The GRS DTM-8 has a lightweight poly dome that minimizes resonance at higher frequencies and allows uniform off-axis dispersion which is enhanced by the built-in phase plug. The low profile of the DTM-8 allows this to fit in the tightest of spaces, making the DTM-8 a great choice as a replacement driver or for your next project!



Incredibly Versatile



The GRS DTM-8 poly dome tweeter is a great choice to add detail to any full-range speaker! Thanks to the built-in phase plug and the direct drive design, the DTM-8 performs with minimal changes to the output response when listening off-axis.





We've Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Learn More


Learn More
Request Quote




Product Details

BrandGRS
ModelDTM-8
Part Number292-437
UPC848864069562
Unit of MeasureEach
Weight0.2
