  • GRS 1TH-4 1" Bullet Horn Tweeter 4 Ohm

CLEARANCE GRS 1TH-4 1" Bullet Horn Tweeter 4 Ohm

GRSPart # 292-466
Model: 1TH-4

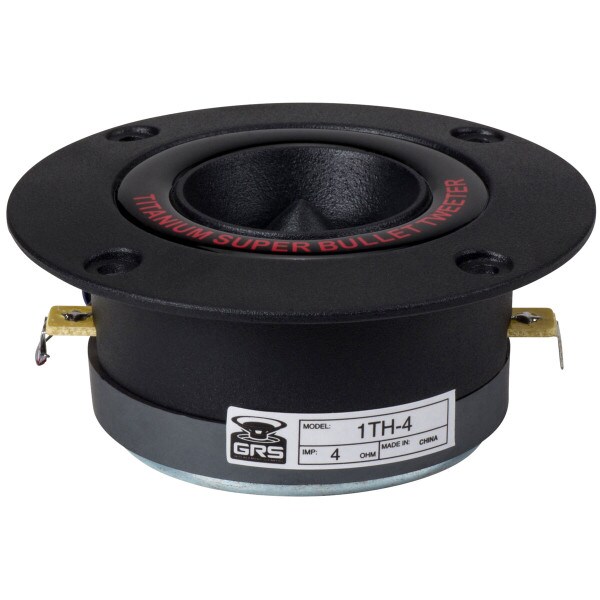

The GRS 1TH-4 bullet horn tweeter is a great choice for adding powerful highs to instrument amplification, budget PA speakers, or extreme home stereo speakers. Includes a 3.3 uF crossover capacitor to make integration easy (6 db/octave slope @ 12kHz). 4 ohm impedance.

Key Features

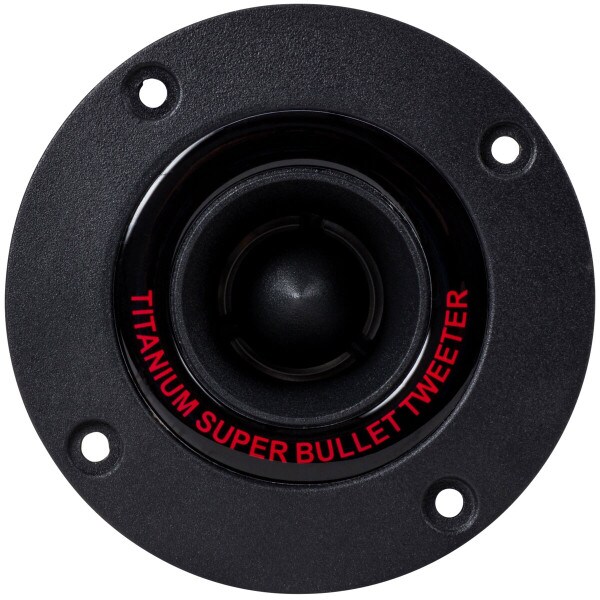

  • Aluminum ring-type diaphragm and bullet horn waveguide
  • Rugged die-cast aluminum faceplate
  • Detailed, powerful highs for an affordable price
  • Includes crossover capacitor
Get Notified When Available

We'll send you an email when GRS 1TH-4 1" Bullet Horn Tweeter 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

GRS 1TH-4 1" Bullet Horn Tweeter 4 Ohm

DJ speakers, instrument amplification, and huge home stereo speakers all need a powerful treble sound to match their big bass. The GRS 1TM-4 bullet horn tweeter is the perfect solution on a budget to add the desired highs to these types of speakers.

The 1TM-4 features a ring-type aluminum diaphragm on a phenolic carrier, and a 1" voice coil for rugged performance. The horn faceplate is cast in aluminum to make it resistant to damage. The short, round horn provides wide dispersion of treble output, and the included 3.3 uF crossover capacitor makes it easy to integrate this tweeter using an L-pad.

Specifications: • Power handling: 60 watts RMS with included 3.3 uF crossover capacitor (6 db/octave slope @ 12kHz) • VCdia: 1" • Impedance: 4 ohms • Re: 3.36 ohms • Frequency response: 5,200 to 20,000 Hz • Fs: 2,600 Hz • Le: 0.05 mH • Qms: 5.12 • Qes: 6.42 • Qts: 2.85 • SPL: 95 dB 1W/1m • Dimensions: Overall outside diameter: 3.875"; Cutout diameter2.82"; Depth: 1.57".

Product Details

BrandGRS
Model1TH-4
Part Number292-466
UPC848864016405
Unit of MeasureEach
Weight1.2

Product Specifications

Diaphragm MaterialAluminum
Power Handling (RMS)60 Watts
Impedance4Ω

Specifications
