Fourjay ST4P-CR8 8" Ceiling Speaker Assembly w/Vol Control

Fourjay IndustriesPart # 300-348
Model: ST4P-CR8
1 Question, 2 Answers or
Factory assembled and pre-tested to pass the highest quality standards. Compact 11" diameter is less conspicuous than comparable models.
Your Price: $51.98
MSRP: $64.99
Save $13.01 (20%)
Bulk Pricing
Quantity:Qty: 1-5 $51.98/ea
Quantity:Qty: 6+ $49.38/ea
Out of Stock
Get Notified When Available

We'll send you an email when Fourjay ST4P-CR8 8" Ceiling Speaker Assembly w/Vol Control is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

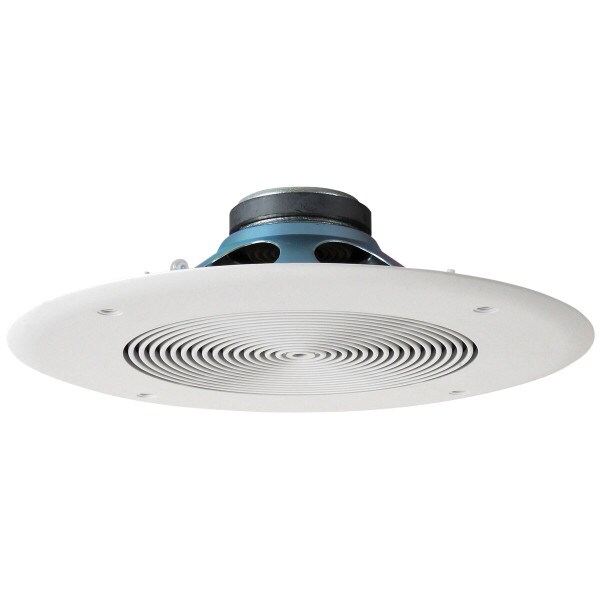

Fourjay ST4P-CR8 8" Ceiling Speaker Assembly w/Vol Control

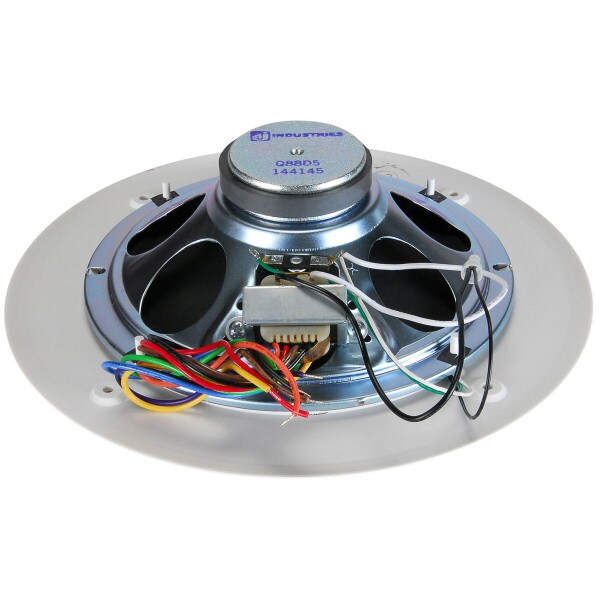

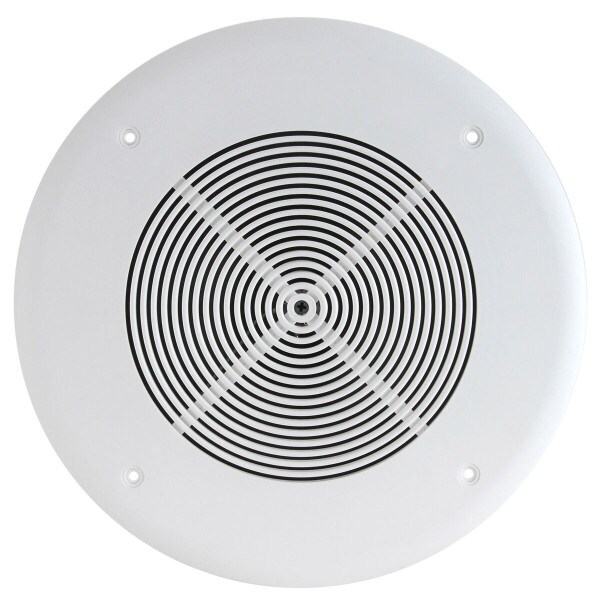

Factory assembled and pre-tested to pass the highest quality standards. Compact 11" diameter is less conspicuous than comparable models. The ST4P-CR8 utilizes a molded polystyrene grill with a non-glare ceiling white texture. It has an impedance of 8 ohms and is rated at 10 watts. The ST4P-CR8 is fitted with a 25/70 volt transformer and a recessed 50 ohm volume control.

Speaker Model #Q88D5
Transformer Model T427
Size & Style8" RoundPower Rating4 Watts
Magnet Weight & Type5 oz. CeramicPrimary Voltage25 & 70
Speaker TypeDual ConeInsertion Loss @ 1 KHz0.9 dB
Power Rating15 WattsFrequency Response80-20,000 Hz
Sensitivity96 dBPrimary Taps4, 2, 1, 1/2 Watts
Response40-18,000 HzPrimary Leads6" Color Coded
Impedance8 OhmsSecondary Impedance8 Ohms
Coil Diameter3/4"Secondary Leads6" Color Coded
Depth2-3/4"Mounting Centers2"
Weight1.4 Lbs.Weight0.42 Lbs.

2001 Parts Express. All Rights Reserved

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandFourjay Industries
ModelST4P-CR8
Part Number300-348
UPC844632007514
Unit of MeasureEach
Weight3.1152

Product Specifications

Input Rating8 ohm|70V|25V
Mounting StyleIn-ceiling
Woofer Diameter8"
Special FeaturesVolume Control
