Overview

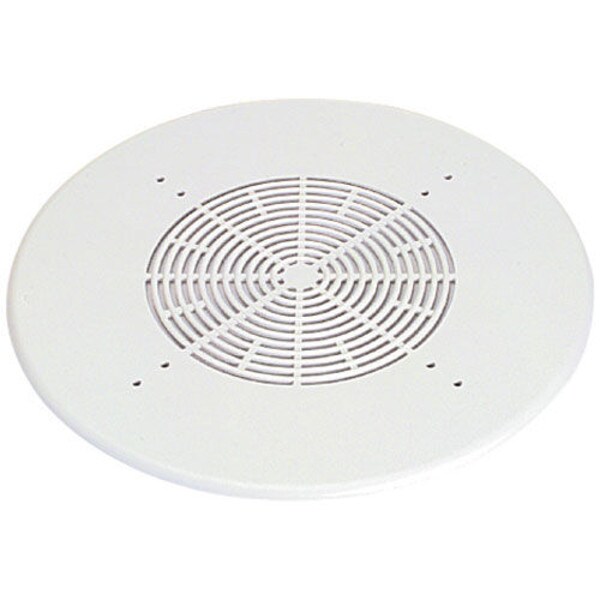

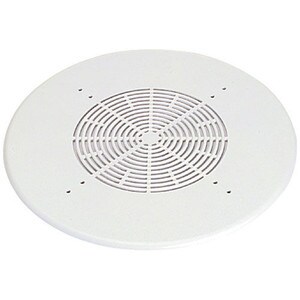

The FJ8W by Fourjay is a ceiling-white polymer baffle compatible with most Fourjay 8" speakers. Screw holes on a 7-5/8" circle allow you to secure your speaker, and then mount the assembly via 9-1/8" diameter screw holes. Set of 4 matching white hardware (screws and nuts) included.

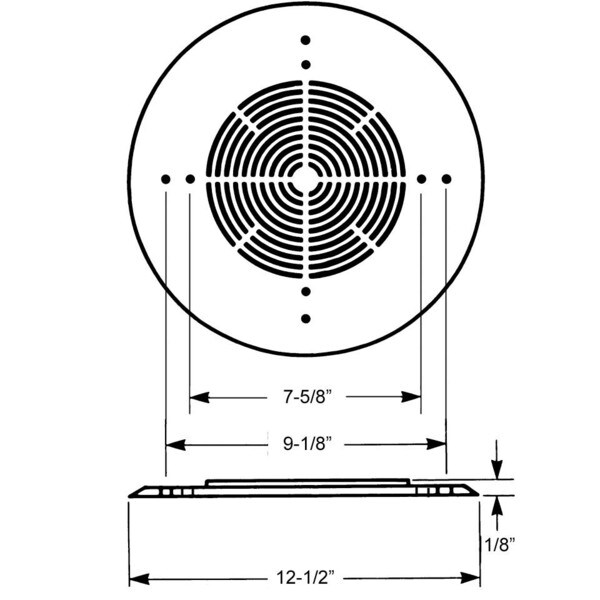

Specifications: • Overall diameter: 12-1/2" • Speaker mounting holes: 7-5/8" diameter pattern • Mounting screw holes: 9-1/8" diameter pattern.
Constant Voltage (70-Volt) Audio Systems
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
Product Details | |
---|---|
Brand | Fourjay Industries |
Model | FJ8W |
Part Number | 300-320 |
UPC | 844632007460 |
Unit of Measure | Each |
Weight | 0.5874 |
