CLEARANCE Fountek NeoCD1.0 Ribbon Tweeter

Fountek
Part #296-701

CLEARANCE Fountek NeoCD1.0 Ribbon Tweeter

Fountek
Part #296-701
Model: NeoCD1.0
Fountek’s NeoCD1.0 is a value leader in affordable ribbon tweeters, delivering the incredible detail that ribbon tweeters are known for at a price that is easily within reach. Its round faceplate is easily recessed using conventional tools.
Key Features
  • 1.5" H x 0.315" W ribbon element
  • Wide 2,000-40,000 Hz frequency response
  • Excellent horizontal off-axis dispersion for a wide listening window
  • Circular faceplate for easy mounting
60 Day No Hassle Return Policy

Overview

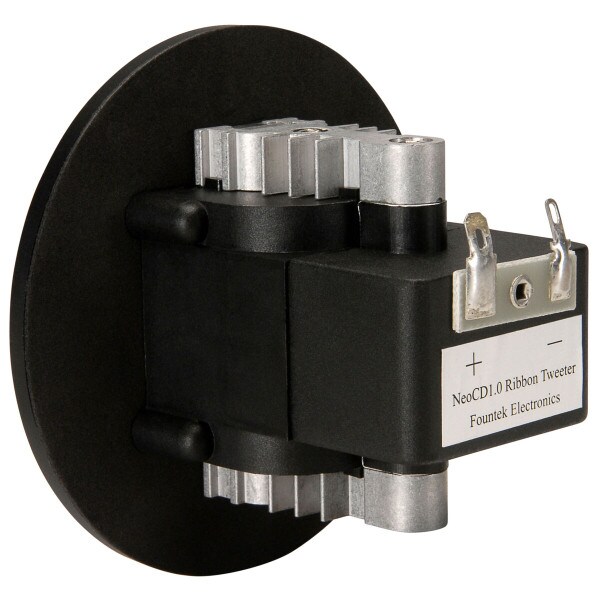

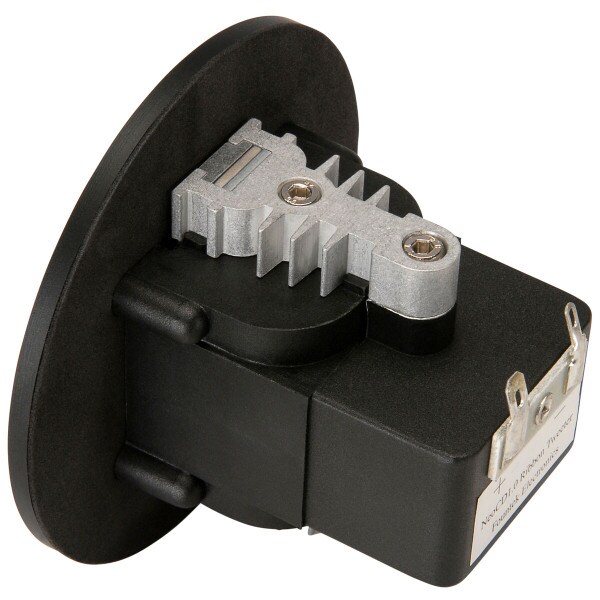

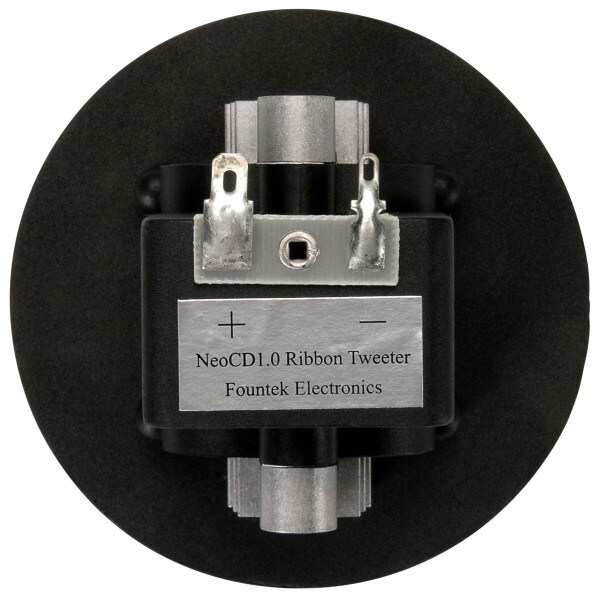

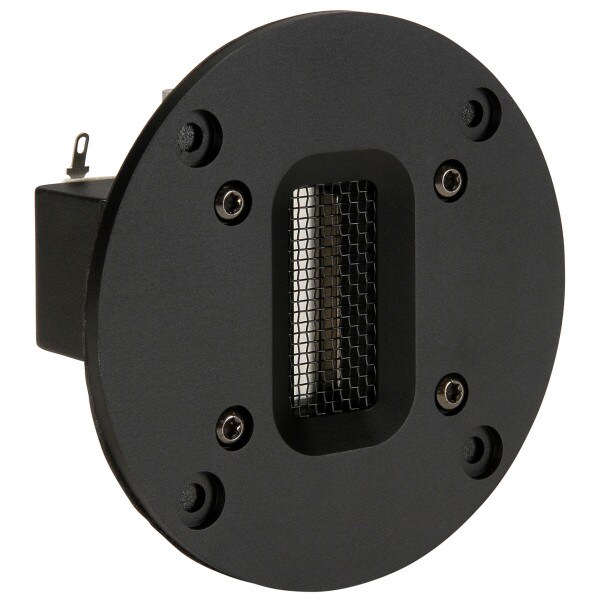

Fountek NeoCD1.0 Ribbon Tweeter

The NeoCD1.0 ribbon tweeter is Fountek's most accessible ribbon tweeter with an affordable price, and a round faceplate that is easy to recess into loudspeaker baffles using the same tools used for recessing other round drivers.

A reinforced, sandwiched-aluminum ribbon and high-strength neodymium motor structure portray musical detail with incredible accuracy and speed, with an incredible frequency response that extends out to 40,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot. Recommended minimum crossover frequency: 3,500 Hz @ 18 dB/octave

Product Details

BrandFountek
ModelNeoCD1.0
Part Number296-701
UPC848864004099
Unit of MeasureEach
Weight1.05

Product Specifications

Cutout Diameter2.60" x 2.17
Tweeter TypeRibbon
Power Handling (RMS)12 Watts
Impedance5Ω
Frequency Response2,000 to 40,000Hz
Sensitivity90dB 2.83V/1m

Mounting Information

Overall Outside Diameter3.94"
Depth2.6"
