CLEARANCE Fountek FW200 8" Aluminum Midwoofer Speaker

Fountek
Part #296-731

CLEARANCE Fountek FW200 8" Aluminum Midwoofer Speaker

Fountek
Part #296-731
Model: FW200

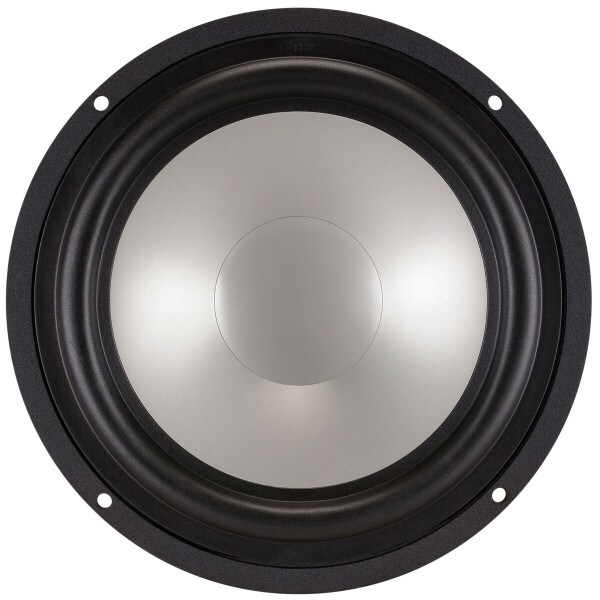

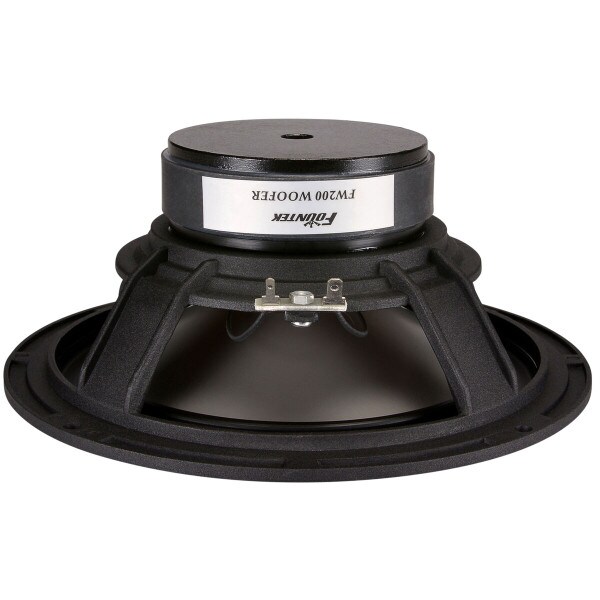

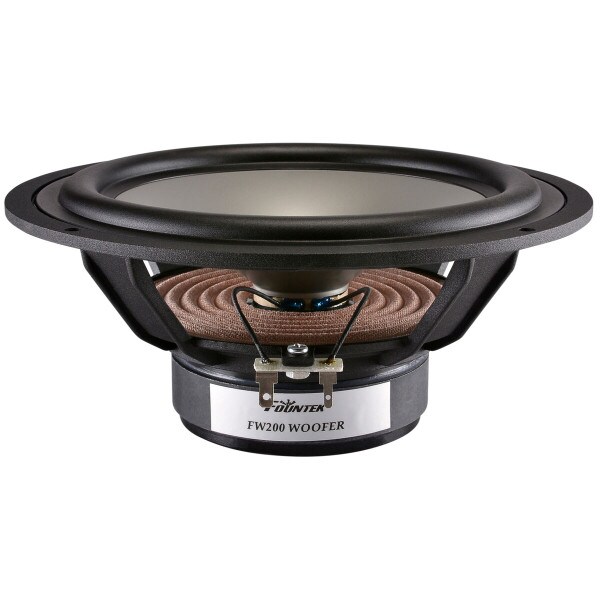

Fountek’s FW200 is a robust 8" midwoofer driver that features an attractive aluminum cone, a high-strength cast-aluminum frame, and an optimized motor structure, for low distortion and excellent detail.
Key Features
  • Remarkably flat response up to 2,500 Hz makes crossover design simple
  • Rigid aluminum cone provides great transient response
  • Large spider keeps excursion linear for minimal distortion
  • Inverted dust cap for a sleek and unique look
60 Day No Hassle Return Policy

Overview

Fountek FW200 8" Aluminum Midwoofer Speaker

Fountek mid-bass drivers offer exceptional value with premium features like aluminum cones, robust cast frames, and optimized low-distortion motors.  They’re the perfect choice for use in high-end loudspeaker systems, paired with premium-quality tweeters like Fountek’s own ribbon units.

The FW200 model  is an 8” midwoofer with an extended upper range that allows it to be used as a midbass driver, or as a woofer together with a dedicated midrange for further reduced distortion. The satin anodized-aluminum cone perfectly complements the other Fountek midwoofer drivers.

Product Details

BrandFountek
ModelFW200
Part Number296-731
UPC848864004242
Unit of MeasureEach
Weight4.5

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.13
Power Handling (RMS)75 Watts
Power Handling (MAX)150 Watts
Impedance8Ω
Frequency Response35 to 3,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.42"

Thiele-Small Parameters

Resonant Frequency (Fs)35.7Hz
DC Resistance (Re)6.8Ω
Mechanical Q (Qms)2.26
Electromagnetic Q (Qes)0.68
Total Q (Qts)0.52
Compliance Equivalent Volume (Vas)2.18ft³
Mechanical Compliance of Suspension (Cms)0.95mm/N
BL Product (BL)6.83T·m
Maximum Linear Excursion (Xmax)4.35mm
Surface Area of Cone (Sd)213.8cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.54"
Baffle Cutout Diameter7.28"
Depth3.5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.55ft³
Sealed F354Hz
Vented Volume3.82ft³
Vented F326Hz
