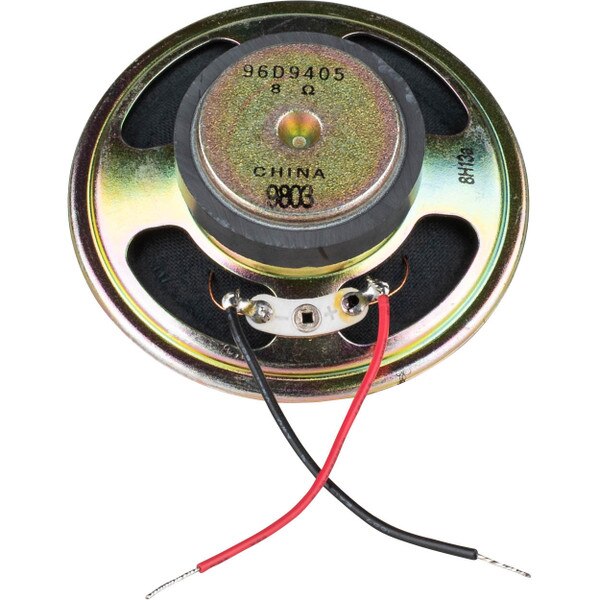

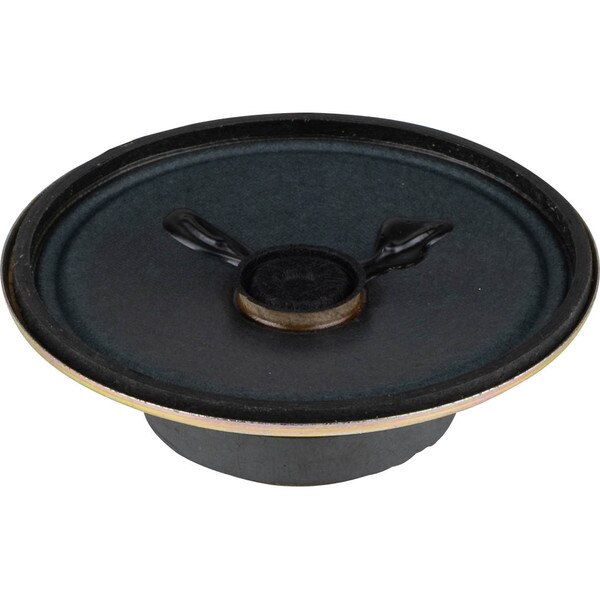

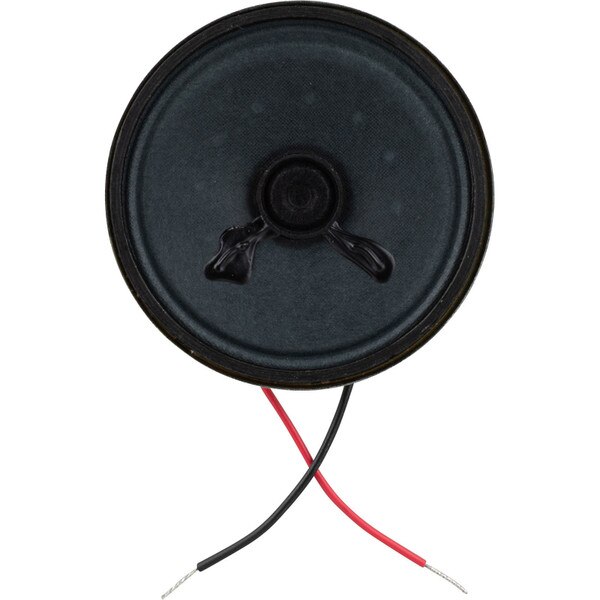

The Foster 96D9405 2-1/2" Paper Cone Mini Speaker is a perfect replacement option for many PC's and clock radios.
This Foster 96D9405 2-1/2" Paper Cone Mini Speaker is a perfect replacement option for many PC's and clock radios. Designed to be surface or rear mounted, this 2-1/2" mini speaker has a shallow mounting depth for numerous applications. Integrated 3" long wire leads make installation a breeze. Case of 100 Pcs.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | 96D9405 |
| Part Number | 299-4151 |
| UPC | 848864075181 |
| Weight | 18 |
Product Specifications | |
|---|---|
| Nominal Diameter | 2-1/2" |
| Power Handling (RMS) | 2 Watts |
| Power Handling (MAX) | 4 Watts |
| Impedance | 8Ω |
| Frequency Response | 300 - 15,000Hz |
| Sensitivity | 82.77dB 2.83V/1m |
| Voice Coil Diameter | 0.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 299.9Hz |
| DC Resistance (Re) | 7.867Ω |
| Mechanical Q (Qms) | 15.81 |
| Electromagnetic Q (Qes) | 4.697 |
| Total Q (Qts) | 3.621 |
| Compliance Equivalent Volume (Vas) | 0.007ft³ |
| Diaphragm Mass Inc. Airload (Mms) | 1.048g |
| Surface Area of Cone (Sd) | 23.76cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Paper |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 2.625" |
| Baffle Cutout Diameter | 2.375" |
| Depth | 0.75" |
