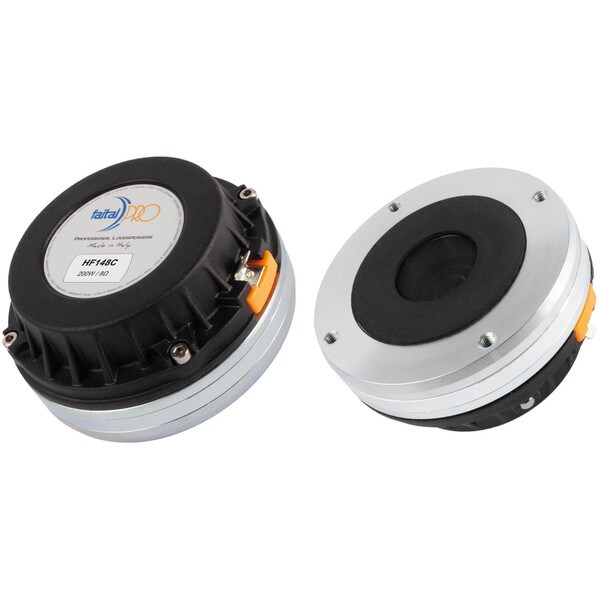

FaitalPRO HF148C 1.4" Neodymium HF Driver 8 Ohm

FaitalPROPart # 294-1358
Model: HF148C

For a smooth sounding compression driver with broad range and high output, choose FaitalPRO's HF148C 1.4" compression driver. A radial neodymium slug motor focuses magnet flux into the gap while keeping driver weight below 5 pounds.

Key Features

  • Longer voice coil depth improves dynamics and power compression
  • Neo radial motor design for light weight and high output
  • Ketone polymer dome diaphragm for smooth output
  • Wide band 600 Hz to 18,000 Hz frequency response
Your Price: $491.00
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when FaitalPRO HF148C 1.4" Neodymium HF Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO HF148C 1.4" Neodymium HF Driver 8 Ohm

FailtalPRO's HF148C 1.4" compression horn driver uses a radial neodymium slug motor design to pack as much BL product into the voice coil gap as possible. When combined with the titanium diaphragm, the HF148C produces smooth, neutral sound over a broad range (from 700 to 18,000 Hz). Similar to FaitalPRO's HF146, the HF148C has a slightly longer voice coil winding depth to provide lower power compression and better dynamics when pushed to its limit.

The high energy motor is also responsible for output up to 110 dB with only one watt of input power, while keeping the total weight of the driver under five pounds. Built with an annular phase plug. Made in Italy.

Specifications: • Power handling: 50 watts RMS (above 650 Hz), 100 watts RMS (above 900 Hz) with recommended crossover of 900 Hz, 12 dB/octave slope • VCdia: 2.56" • Impedance: 8 ohms • Frequency response: 600-18,000 Hz • SPL: 110 dB 1W/1m • Dimensions: 4.84" diameter x 2.50" depth • Bolt pattern: 4 x M6 • Weight: 4.41 lbs.

Product Details

BrandFaitalPRO
ModelHF148C
Part Number294-1358
UPC848864074801
Unit of MeasureEach
Weight4.45

Product Specifications

Diaphragm MaterialTitanium
Power Handling (RMS)50 Watts
