  • FaitalPRO HF140 1.4" Neodymium Compression Horn Driver 16 Ohm 4-Bolt

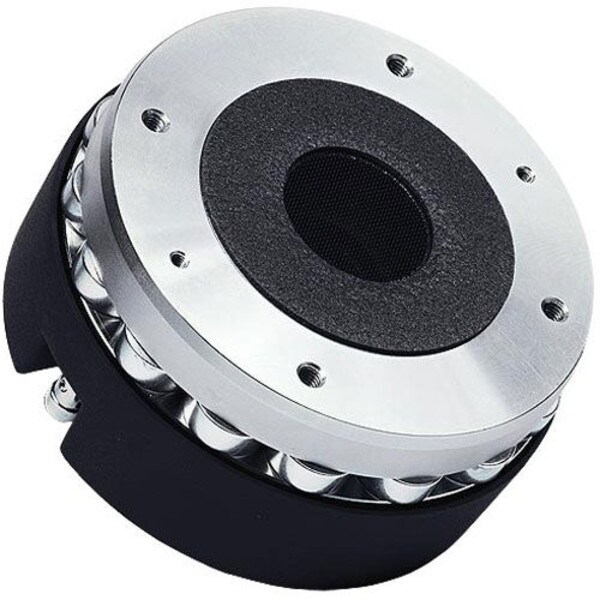

FaitalPRO HF140 1.4" Neodymium Compression Horn Driver 16 Ohm 4-Bolt

FaitalPROPart # 294-1026
Model: HF140
For a high output compression driver to be used for the critical midrange (vocals), choose FaitalPRO's HF140 1.4" titanium compression driver. A radial neodymium slug motor focuses magnet flux into the gap while keeping driver weight below 7 pounds. 16 ohm impedance for line array use.

Key Features

  • Neo radial motor design for light weight and high output
  • Titanium dome diaphragm for crisp output with a focus on vocals
  • Large voice coil for high power handling
  • Wide band 500 Hz to 18,000 Hz frequency response
  • 16 ohm impedance for line array use
  • Made in Italy
Your Price: $409.00
+ FREE SHIPPING
Bulk Pricing
Only 3 In Stock
Get Notified When Available

We'll send you an email when FaitalPRO HF140 1.4" Neodymium Compression Horn Driver 16 Ohm 4-Bolt is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO HF140 1.4" Neodymium Compression Horn Driver 16 Ohm 4-Bolt

FailtalPRO's HF140 1.4" compression horn driver uses a radial neodymium slug motor design to pack as much BL product into the voice coil gap as possible. When combined with the titanium dome diaphragm, the HF140 produces crisp sound over a broad range (from 500 to 18,000 Hz) with an emphasis on the critical midrange.

The high energy motor is also response for output up to 111 dB with only one watt of input power, with a 109 dB average sensitivity, while keeping the total weight of the driver under seven pounds. Built with an annular phase plug. The 16 ohm impedance is great for line array use where multiple drivers are used together. Made in Italy.

Specifications: • Power handling: 50 watts RMS (above 650 Hz), 70 watts RMS (above 900 Hz) with recommended crossover of 900 Hz, 12 dB/octave slope  • VCdia: 2.91" • Impedance: 16 ohms • Frequency response: 500-18,000 Hz • SPL: 109 dB 1W/1m • Dimensions: 5.14" diameter x 2.44" depth • Bolt pattern: 4 x M6 • Weight: 6.40 lbs.

Product Details

BrandFaitalPRO
ModelHF140
Part Number294-1026
UPC848864011455
Unit of MeasureEach
Weight7.1

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1.4"
Mounting Type4-Bolt
Power Handling (RMS)70 Watts
Impedance16Ω
