  • FaitalPRO HF110 1" Professional Neodymium Bolt-On Compression Driver 8 Ohm

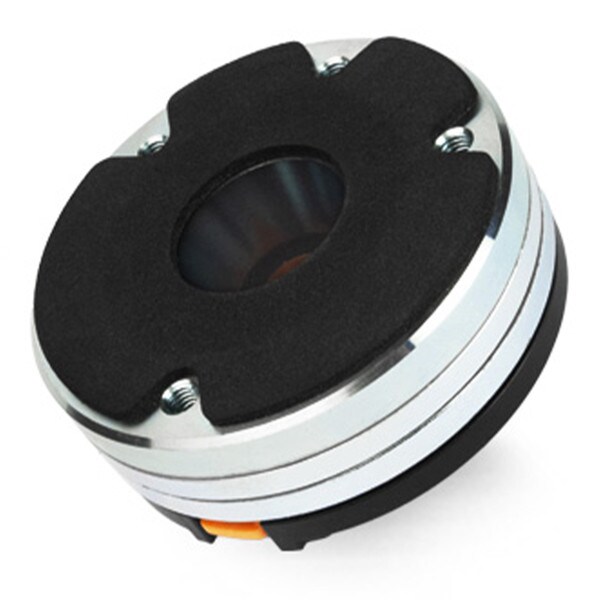

NEW FaitalPRO HF110 1" Professional Neodymium Bolt-On Compression Driver 8 Ohm

FaitalPROPart # 294-1378
Model: HF110

The FaitalPRO HF110 is a compact 1-inch exit neodymium compression driver designed for exceptional high-frequency performance in professional audio applications. With its lightweight design and advanced engineering, the HF110 delivers clear and precise sound reproduction while ensuring ease of integration into a variety of audio systems. Perfect for live sound, portable PA systems, and fixed installations, this driver combines versatility and reliability in a robust package.

Key Features

  • 1-inch exit with a high-efficiency neodymium magnet assembly for improved output
  • Lightweight and compact design for easy integration into audio systems
  • Advanced diaphragm construction for clear and accurate high-frequency response
  • High power handling capacity for reliable performance in demanding environments
  • Wide frequency range for seamless integration in multi-way audio systems
  • Made in Italy
NEW $164.00
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when FaitalPRO HF110 1" Professional Neodymium Bolt-On Compression Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO HF110 1" Professional Neodymium Bolt-On Compression Driver 8 Ohm

The HF110 features a neodymium magnet assembly that delivers high output with excellent efficiency, making it suitable for both compact and large-scale audio systems. Its diaphragm construction ensures smooth and accurate high-frequency reproduction, minimizing distortion even at high sound pressure levels. This allows the HF110 to deliver detailed and natural audio for a wide range of applications.

Compact and lightweight, the HF110 is designed for seamless integration into professional audio systems where weight and space are critical considerations. Whether used in two-way cabinets, line arrays, or other custom audio solutions, the HF110 offers consistent performance and durability. Its wide frequency response ensures versatility, making it a dependable choice for professionals seeking clarity and precision in high-frequency audio reproduction.

Technical Parameters

  • Nominal Impedance: 8 Ohm
  • Minimum Impedance: 7 Ohm
  • AES Power Handling: 40 W
  • Maximum Power Handling: 80 W
  • Minimum Crossover Frequency: 2 kHz
  • Sensitivity (1W/1m): 110 dB
  • Frequency Range: 2÷20 kHz
  • Voice Coil Diameter: 37 mm (1.46 in)
  • Winding Material: Aluminum
  • Former Material" Kapton
  • Diaphragm Material: Ketone Polymer
  • Diaphragm Shape: Dome
  • Winding Depth: 2.3 mm (0.09 in)
  • Magnetic Gap Depth: 2.6 mm (0.10 in)
  • Flux Density: 2.1 T
  • Magnet: Neodymium Ring
  • Re: 5.5 Ohm
  • Phase Plug Design: Annular
  • Exit Angle (5): 34° Conical
  • NET Air Volume filled by HF Driver: 0.115 dm^3 (0.004 ft^3)
  • Throat Diameter: 25.4 mm (1 in)
  • Overall Diameter: 72 mm (2.83 in)
  • 180° Mounting Holes Diameter: (2xM5) 57 mm (2.24 in)
  • Depth: 35 mm (1.38 in)
  • Net Weight: 520 g (1.1 lbs)

Product Details

BrandFaitalPRO
ModelHF110
Part Number294-1378
UPC848864076102
Unit of MeasureEach
Weight1.3

Product Specifications

Exit Diameter1"
Mounting Type4-Bolt
Power Handling (RMS)40 Watts
