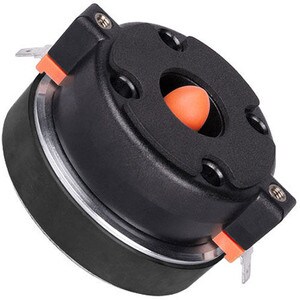

FaitalPRO HF100 1" Compression Horn Driver 8 Ohm 2-Bolt

FaitalPROPart # 294-1001
Model: HF100
The Italian-made HF100 compression driver from FaitalPRO provides high performance at a budget price.

Key Features

  • Dome shaped polymer diaphragm
  • Extended frequency response is flat to 18,000 Hz
  • Great for use in 12" two-way speakers and smaller
  • 2-bolt mounting pattern with M6 threads
  • Made in Italy
Your Price: $80.50
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when FaitalPRO HF100 1" Compression Horn Driver 8 Ohm 2-Bolt is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO HF100 1" Compression Horn Driver 8 Ohm 2-Bolt

FaitalPRO's HF100 1" compression horn driver is built using a dome ketone polymer dome diaphragm for an impressively flat frequency response from 1,500 Hz to 18,000 Hz, without sacrificing sensitivity. A radial phase plug increases dispersion, improving off-axis response. Two-bolt mounting pattern with M6 threads. Made in Italy.

Specifications:• Power handling: 30 watts RMS with recommended crossover of 2,000 Hz, 12 dB/octave slope • VCdia: 0.98" • Impedance: 8 ohms • Frequency response: 1,500-20,000 Hz • SPL: 108 dB 1W/1m • Dimensions: 3.58" diameter x 2.40" depth • Bolt pattern: 2 x M6 • Weight: 1.83 lbs.

Product Details

BrandFaitalPRO
ModelHF100
Part Number294-1001
UPC848864011202
Unit of MeasureEach
Weight2

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1"
Mounting Type2-Bolt
Power Handling (RMS)30 Watts
Impedance8Ω
