  • FaitalPRO 8PR200 8" Neodymium Professional Midbass 8 Ohm

FaitalPRO 8PR200 8" Neodymium Professional Midbass 8 Ohm

2 Questions, 2 Answers or
FaitalPRO
Part #294-1175

FaitalPRO 8PR200 8" Neodymium Professional Midbass 8 Ohm

FaitalPRO
Part #294-1175
2 Questions, 2 Answers or
For high fidelity applications, choose FaitalPRO's 8PR200 8" professional woofer. Good Xmax and high frequency extension are complimented by a lightweight motor design, while an aluminum demodulation ring reduces Le and distortion.
Key Features
  • Compact, cast aluminum frame for tight driver placement
  • Lightweight, high output neo motor with demodulation ring
  • Triple roll surround and treated paper cone
  • 95 dB sensitivity and high 200 watt power handling
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $215.00
+ FREE SHIPPING
Bulk Pricing

Back-Ordered

Estimated back in stock 5/31/2024
Alert Me When Available
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

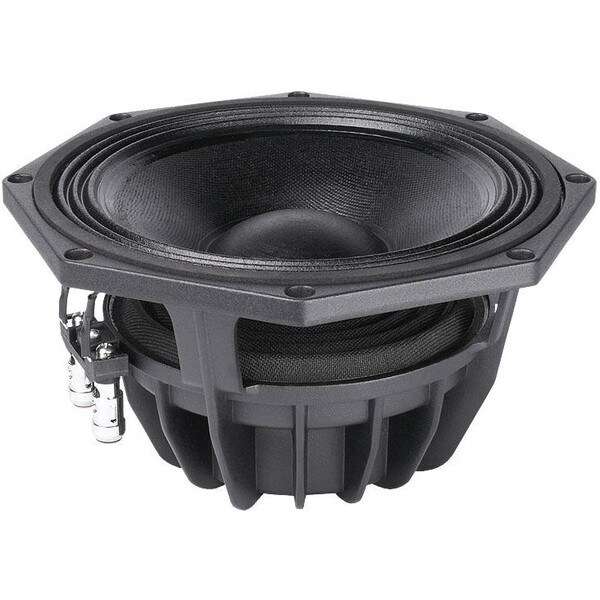

FaitalPRO 8PR200 8" Neodymium Professional Midbass 8 Ohm

FaitalPRO's 200 watt RMS 8PR200 8" professional woofer driver has an extremely flat response from 70 to 5,000 Hz for use in applications where high power handling and midbass punch is required, such as in live sound speakers. The high energy, rare-earth neodymium motor is lightweight and features an aluminum demodulation ring for low inductance and distortion.

A treated paper cone with a cloth triple roll surround offers outstanding durability, while the cast aluminum octagonal frame allows for very tight speaker-to-speaker placement, which is ideal for multi-way speakers and line arrays. Made in Italy.

Product Details

BrandFaitalPRO
Model8PR200
Part Number294-1175
UPC848864008646
Unit of MeasureEach
Weight5.2

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.19
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response70 to 5,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)58Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)0.55mH
Mechanical Q (Qms)9.4
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.53ft³
Mechanical Compliance of Suspension (Cms)0.28mm/N
BL Product (BL)11.5T·m
Diaphragm Mass Inc. Airload (Mms)27.2g
Maximum Linear Excursion (Xmax)8.15mm
Surface Area of Cone (Sd)196cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.27" across the flats, 8.81"
Baffle Cutout Diameter7.13"
Depth4.59"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3131.8Hz
Vented Volume0.6ft³
Vented F355.8Hz
