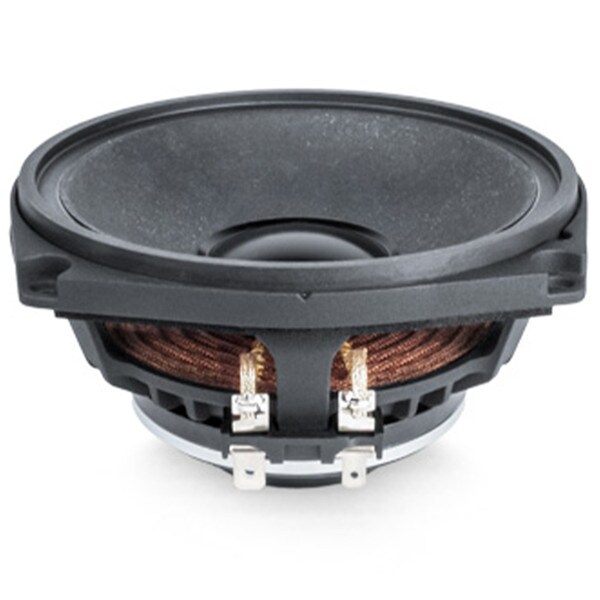

  • FaitalPRO 5PR120 5" Professional Neodymium Midrange 8 Ohm

NEW FaitalPRO 5PR120 5" Professional Neodymium Midrange 8 Ohm

FaitalPROPart # 294-1380
Model: 5PR120
The FaitalPRO 5PR120 is a premium 5-inch midrange woofer engineered to deliver exceptional clarity and detail across various audio applications. With its impressive power handling and wide frequency response, this woofer is ideal for professional sound systems and high-end home audio setups. Crafted with durability and performance in mind, the 5PR120 promises a superior audio experience for audiophiles and sound engineers alike.

Key Features

  • The lightweight neodymium magnet will help keep your system light
  • Cast aluminum frame will take a beating and still perform like new
  • Wide frequency response offers several options for a crossover point
  • 100 db sensitivity means this woofer will make itself heard
NEW $168.00
+ FREE SHIPPING
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when FaitalPRO 5PR120 5" Professional Neodymium Midrange 8 Ohm is back in stock or available for preorder.

Estimated back in stock 10/24/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 5PR120 5" Professional Neodymium Midrange 8 Ohm

Experience unparalleled midrange clarity with the FaitalPRO 5PR120, a premium 5-inch woofer crafted for audiophiles and professional sound engineers alike. With a frequency response ranging from 300 Hz to 5 kHz and a high sensitivity of 100 dB, the 5PR120 excels in delivering detailed and accurate midrange frequencies, making it perfect for both live sound applications and high-fidelity home audio systems. Constructed with a robust yet lightweight aluminum frame, the FaitalPRO 5PR120 is designed for durability and ease of installation. Its advanced engineering not only delivers superior sound quality but also ensures reliable performance over extended periods. Whether you're enhancing your studio monitors, building custom speaker systems, or upgrading your home theater setup, the FaitalPRO 5PR120 offers the perfect blend of power, precision, and durability to elevate your audio experience.

Product Details

BrandFaitalPRO
Model5PR120
Part Number294-1380
UPC848864076119
Unit of MeasureEach
Weight2

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter5.47
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω

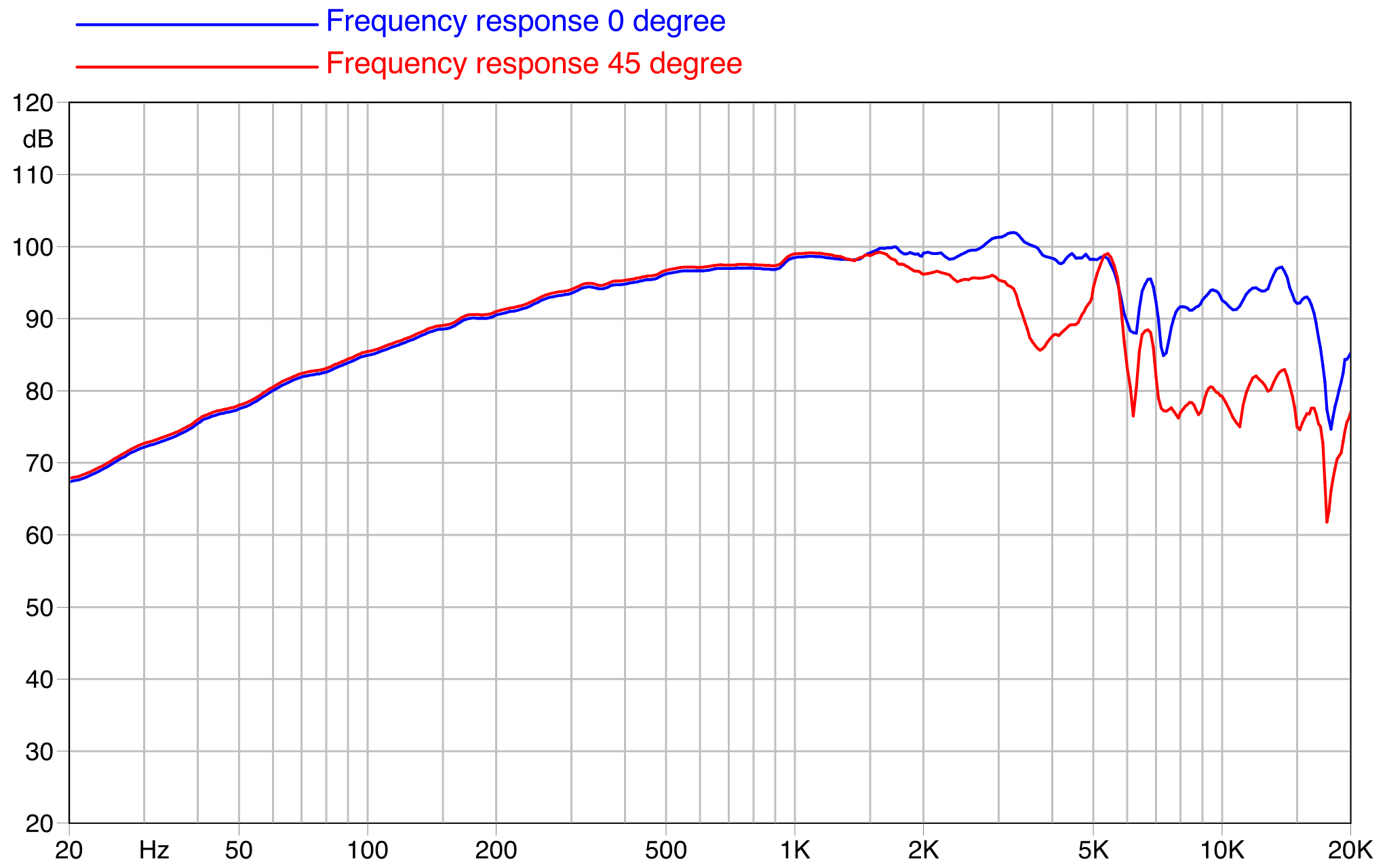

Frequency Response300 to 5000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter1.26"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)0.17mH
Mechanical Q (Qms)8
Electromagnetic Q (Qes)0.28
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)0.15ft³
Mechanical Compliance of Suspension (Cms)0.3mm/N
BL Product (BL)10T·m
Diaphragm Mass Inc. Airload (Mms)8.5g
Maximum Linear Excursion (Xmax)3.1mm
Surface Area of Cone (Sd)102.2cm²

Materials of Construction

Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.05"
Baffle Cutout Diameter4.65"
Depth2.72"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0155ft³
Sealed F3314.4Hz
Vented Volume0.0352ft³
Vented F3193.8Hz
