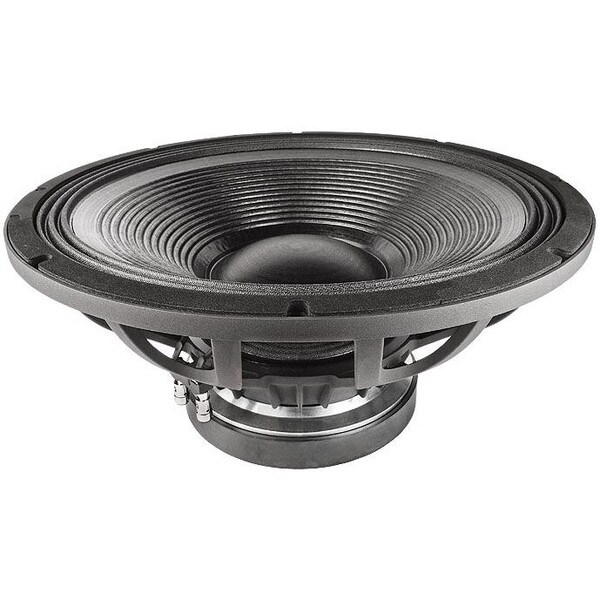

FaitalPRO 18HP1030 18" Professional Subwoofer 4 Ohm

FaitalPRO
Part #294-1306

FaitalPRO 18HP1030 18" Professional Subwoofer 4 Ohm

FaitalPRO
Part #294-1306
Model: 18HP1030
For a high output subwoofer solution, choose FaitalPRO's 18HP1030 18" subwoofer. Its 4" diameter voice coil offers up to 1,200 watts RMS power handling, while the aluminum demodulation ring lowers distortion and inductance.
Key Features
  • 1,200 watt power handling
  • Low distortion motor with an aluminum demodulation ring
  • Over 12 mm of Xmax for deep bass reproduction
  • Custom cast aluminum frame
  • 4 ohm impedance to extract more amplifier power
  • Made in Italy
Your Price: $521.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 7 hr 40 min to ship today. Details

5In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 18HP1030 18" Professional Subwoofer 4 Ohm

FaitalPRO's 18HP1030 18" professional subwoofer features 1,200 watts of RMS power handling thanks to a 4" diameter voice coil on a glass fiber former. A cast aluminum eight-spoke frame reduces rear reflections and increases basket strength, while the triple roll treated polycotton surround maintains linearity during heavy excursion. The vented backplate lowers voice coil temperatures.

For an extended frequency response and reduced distortion, the 18HP1030 employs an aluminum demodulation ring on top of the pole piece to reduce inductance down to a low 1.48 mH. 12.45 mm of Xmax on tap allows you to use this woofer in vented cabinets that are tuned very low. Made in Italy.

Product Details

BrandFaitalPRO
Model18HP1030
Part Number294-1306
UPC848864008073
Unit of MeasureEach
Weight27.35

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.32
Power Handling (RMS)1200 Watts
Power Handling (MAX)2400 Watts
Impedance4Ω
Frequency Response35 to 1,600Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
DC Resistance (Re)2.9Ω
Voice Coil Inductance (Le)1.08mH
Mechanical Q (Qms)12.3
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.32
Compliance Equivalent Volume (Vas)5.32ft³
Mechanical Compliance of Suspension (Cms)0.08mm/N
BL Product (BL)21.7T·m
Diaphragm Mass Inc. Airload (Mms)246g
Maximum Linear Excursion (Xmax)12.45mm
Surface Area of Cone (Sd)1124cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter18.11"
Baffle Cutout Diameter16.5"
Depth8.21"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.5ft³
Sealed F391.4Hz
Vented Volume5.5ft³
Vented F336.1Hz
