  • FaitalPRO 15XL1200 15" Professional Neodymium Subwoofer 8 Ohm

CLEARANCE FaitalPRO 15XL1200 15" Professional Neodymium Subwoofer 8 Ohm

FaitalPROPart # 294-1316
Model: 15XL1200

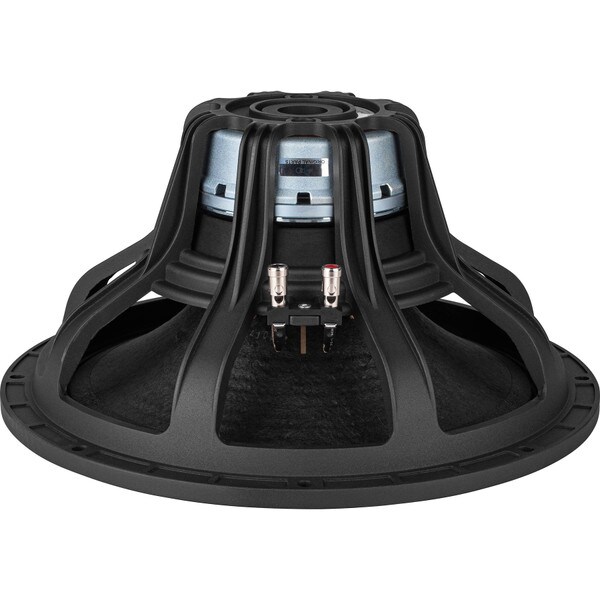

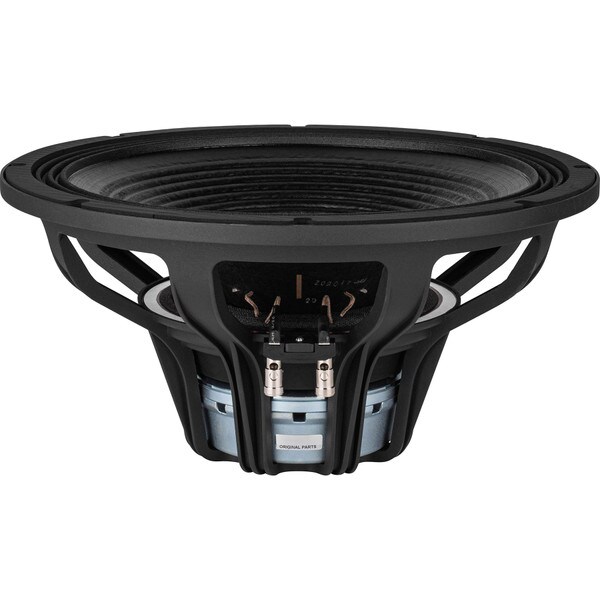

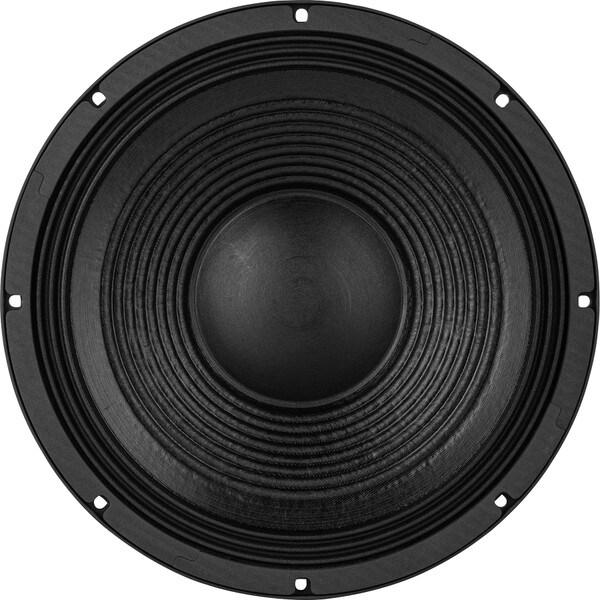

Faital Pro's 15XL1200 15" neodymium subwoofer is perfect for compact and portable high output subwoofer designs. This driver combines high excursion capability with great efficiency and 1,400 watt RMS power handling to deliver excellent output capability. Also, weighing in at just over 16 pounds, transporting systems with the 15XL1200 won't break your back.

Key Features

  • Just 16.1 pounds thanks to the lightweight but powerful neodymium motor
  • 12.45 mm xmax for maximum displacement and powerful output
  • 4" voice coil can handle up to 1,400 watts RMS to deliver tremendous SPL levels
  • Aluminum shorting ring lowers inductance and distortion at high output
  • Rigid waterproof treated paper cone for use in harsh environments
Get Notified When Available

We'll send you an email when FaitalPRO 15XL1200 15" Professional Neodymium Subwoofer 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

FaitalPRO 15XL1200 15" Professional Neodymium Subwoofer 8 Ohm

Capable of incredible low frequency output form minimal space, the 15XL1200 15" professional subwoofer from Faital Pro it built for use in compact and portable high output subwoofer systems. The huge 4" voice coil combined with extensive ventilation makes this driver capable of handling up to 1,400 watts RMS (2,800 watts peak) for extended periods with minimal power compression. An extremely powerful neodymium motor is used to cut weight to 16.1 pounds without sacrificing performance. Dual spiders and an optimized triple roll accordion surround keep the cone linear up the 15XL1200's impressive 12.45 mm xmax and beyond. Suitable for a variety of enclosure designs, the 15XL1200 gives you the ability to create earth shaking subwoofer systems that are surprisingly compact and easy to transport.

Product Details

BrandFaitalPRO
Model15XL1200
Part Number294-1316
UPC848864063058
Unit of MeasureEach
Weight16.65

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.72
Power Handling (RMS)1300 Watts
Power Handling (MAX)2800 Watts
Impedance8Ω
Frequency Response40 to 2,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)40Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)1.34mH
Mechanical Q (Qms)10.9
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)2.68ft³
Mechanical Compliance of Suspension (Cms)0.09mm/N
BL Product (BL)23.6T·m
Diaphragm Mass Inc. Airload (Mms)180g
Maximum Linear Excursion (Xmax)12.45mm
Surface Area of Cone (Sd)780cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.47"
Baffle Cutout Diameter13.94"
Depth7.65"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.63ft³
Sealed F382.9Hz
Vented Volume3.5ft³
Vented F337.1Hz
