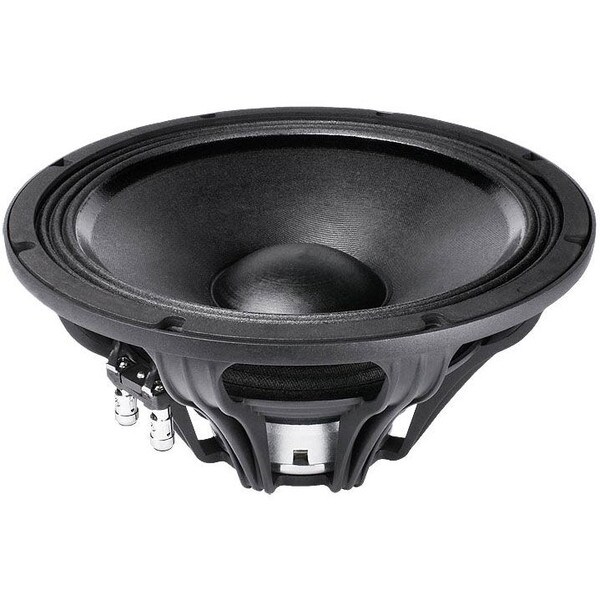

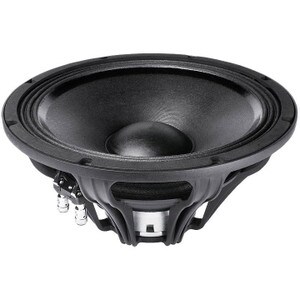

FaitalPRO 12FH520 12" Neodymium Professional Woofer 8 Ohm

FaitalPROPart # 294-1250
Model: 12FH520
6 Questions, 5 Answers or
The 12" 12FH520 woofer from FaitalPRO is built with cutting-edge features for the best performance possible. Lightweight, high sensitivity and power handling, and great frequency response are hallmarks of the 12FH520.

Key Features

  • High 98 dB sensitivity
  • Low distortion neodymium motor with an aluminum shorting ring
  • Weighs less than 10 pounds
  • Up to 600 watts of RMS power handling
  • Linear frequency response to 4,000 Hz
  • Made in Italy
Your Price: $410.00
+ FREE SHIPPING
Bulk Pricing
9 In Stock
Get Notified When Available

We'll send you an email when FaitalPRO 12FH520 12" Neodymium Professional Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 12FH520 12" Neodymium Professional Woofer 8 Ohm

Low distortion, high effective bandwidth product (EBP), outstanding sensitivity, and great power handling are hallmarks of FaitalPRO's 12FH520 12" woofer. Add to all of this a lightweight neodymium motor with a built-in aluminum demodulation ring for low distortion, and you have one of the most cutting-edge 12" woofers in the Pro Audio industry.

A treated polycotton triple-roll surround is mated to the 12FH520's treated paper cone for durability, and the 3" aluminum voice coil is mounted on a glass fiber former for maximum heat resistance. The eight-spoke, cast-aluminum frame minimizes backwave reflection while offering maximum structural rigidity. Made in Italy.

Product Details

BrandFaitalPRO
Model12FH520
Part Number294-1250
UPC848864008363
Unit of MeasureEach
Weight10.75

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance8Ω
Frequency Response50 to 4,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)50Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)0.74mH
Mechanical Q (Qms)11.1
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)2.27ft³
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)17.3T·m
Diaphragm Mass Inc. Airload (Mms)56g
Maximum Linear Excursion (Xmax)7.25mm
Surface Area of Cone (Sd)500cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.44"
Baffle Cutout Diameter11.12"
Depth6.13"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.78ft³
Sealed F3142.8Hz
Vented Volume1.75ft³
Vented F357.7Hz
