CLEARANCE FaitalPRO 10FH520 10" Neodymium Professional Midbass Woofer 8 Ohm

FaitalPROPart # 294-1211
Model: 10FH520
Choose the lightweight, neodymium-powered FaitalPRO 10FH520 10" woofer for high output midbass and midrange duties.

Key Features

  • Well suited for high power midbass, and midrange use
  • 3" aluminum voice coil and a lightweight, powerful neo slug motor
  • Distortion and inductance reducing aluminum demodulation ring
  • Open cast aluminum frame allows driver to move freely
  • Made in Italy
Similar items that may interest you:
Dayton Audio Pro 10 in. 8 Ohm Neodymium Midbass Woofer Odeum 10N
Price: $110.48Part # 295-640
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Get Notified When Available

We'll send you an email when FaitalPRO 10FH520 10" Neodymium Professional Midbass Woofer 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

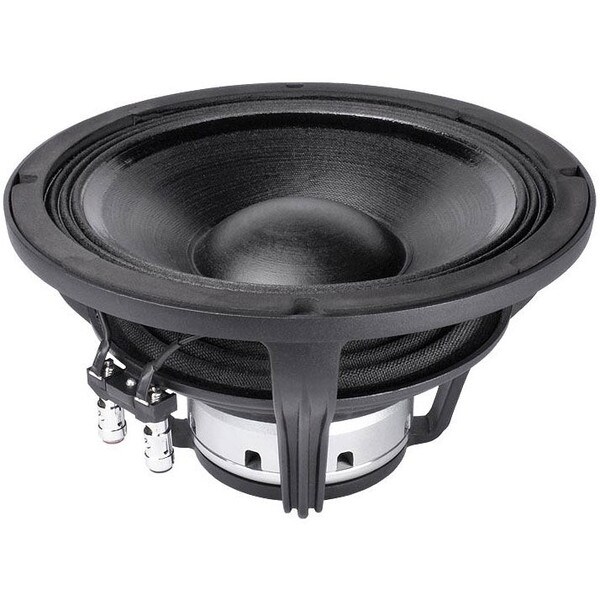

FaitalPRO 10FH520 10" Neodymium Professional Midbass Woofer 8 Ohm

FaitalPRO's 10FH520 10" neodymium woofer is designed for maximum midbass punch and midrange clarity and clocks in at just over 10 pounds. An aluminum demodulation ring in the motor reduces inductance for a frequency response that extends up to 4,000 Hz, while reducing distortion. Its open cast aluminum basket makes this speaker structurally solid, while minimizing trapped air.

The 10FH520 is built with a 3" aluminum wound voice coil on a glass fiber former for reduced weight, which keeps sensitivity high, while maintaining a high continuous power handling rating of 600 watts. A low Qts rating of 0.29 allows this woofer to be used in modest sized sealed cabinets, making it great for monitor use or in large format three-way speakers as a dedicated midrange. Made in Italy.

Product Details

BrandFaitalPRO
Model10FH520
Part Number294-1211
UPC848864008509
Unit of MeasureEach
Weight9.55

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.69
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance
Frequency Response60 to 4,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)60Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)11.1
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.72ft³
Mechanical Compliance of Suspension (Cms)0.14mm/N
BL Product (BL)18T·m
Diaphragm Mass Inc. Airload (Mms)50.3g
Maximum Linear Excursion (Xmax)7.25mm
Surface Area of Cone (Sd)321cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.28"
Baffle Cutout Diameter9.06"
Depth5.56"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.8ft³
Vented F360Hz
