CLEARANCE External Bluetooth/ Wi-Fi Antenna Kit with 3-1/2" (89 mm) Cable

Parts ExpressPart # 320-625
Replace or add an external antenna to your Bluetooth or Wi-Fi device or project. It adds distance and enables you to mount your wireless chip or wireless audio boards inside metal enclosures.

Key Features

  • Antenna mounting socket includes 3-1/2" pigtail for versatility
  • Connector on pigtail mounts to PC boards with I-pex compatible sockets
  • Antenna chassis socket with center prong SMA connector requires 1/4" hole
  • Brass gold plated SMA connectors for best conductivity
  • Right angle 2" long rubber antenna with common center female socket SMA connector
  • Includes gold plated mounting hardware
Similar items that may interest you:
External Bluetooth/ Wi-Fi Antenna Kit with 11.8" and 3.5" Cable
Price: $4.98Part # 320-626
See all items in Audio Amplifier Boards & Modules
Get Notified When Available

We'll send you an email when External Bluetooth/ Wi-Fi Antenna Kit with 3-1/2" (89 mm) Cable is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

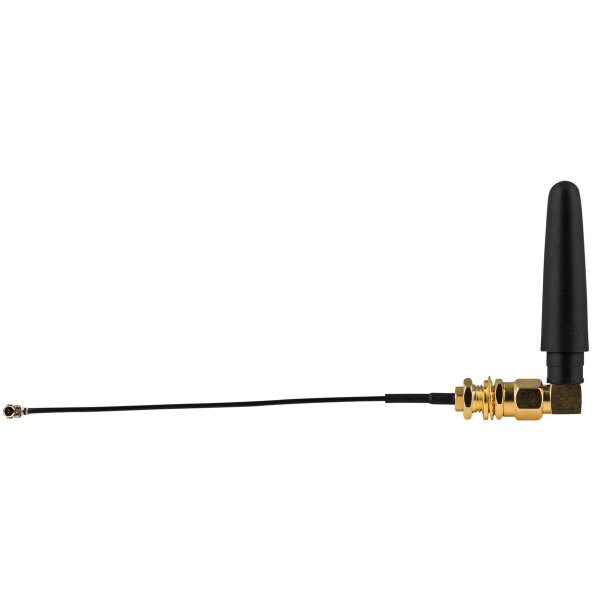

External Bluetooth/ Wi-Fi Antenna Kit with 3-1/2" (89 mm) Cable

Replace a broken or missing Bluetooth or Wi-Fi antenna with this Bluetooth/ Wi-Fi antenna kit. The 2" right angle rubber antenna fits into SMA male prong antenna sockets on most audio amplifiers, dongles, and other wireless transmit/receive devices.

This kit is the answer for those Bluetooth or Wi-Fi projects that require a metal enclosure. Metal enclosures work great for blocking out, or keeping in RF interference. Start by drilling a small 1/4" hole for the gold plated SMA socket into the metal enclosure and use the included hardware to secure the socket. Next snap the I-pex compatible connector at the end 3-1/2" pigtail into the I-pex socket on the PC board. If the PC board doesn't have this connector, cut the connector off the pigtail and solder it directly to the antenna terminal trace. Screw the rubber antenna into the SMA socket and you now have Bluetooth or Wi-Fi receive/transmit capability even though your board is surrounded by metal.

Specifications: • Antenna connector: SMA • Pigtail: 3-1/2" (90 mm) with I-pex center female socket • Material: Gold plated brass • Cable ohms: 50 • Mounting hole required: 1/4" • Mounting thickness: Up to 1/4" • Rubber antenna: 2" right angle with center female socket.

Product Details

BrandParts Express
Part Number320-625
UPC848864050560
Unit of MeasureEach
Weight0.04

Product Specifications

Board TypeBluetooth / Wi-Fi Receiver
Special FeaturesBluetooth-Bluetooth with aptX
