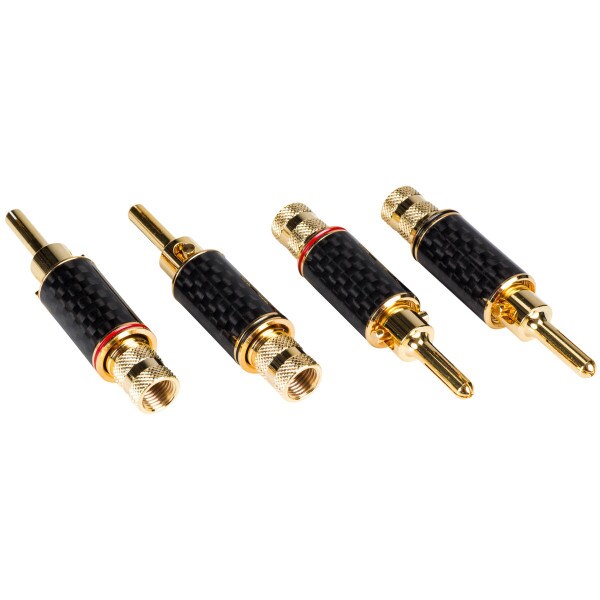

Expanding Banana Plug with Dual Set Screws and Carbon Fiber Wrapped Brass Shell 2 Pair

Parts ExpressPart # 091-3614
Milled from solid brass, and 24-karat gold plated for maximum signal transfer, these locking, expanding banana plugs feature a carbon fiber wrapped shell to provide protection from unintended contact while accepting up to 8 AWG wire.

Key Features

  • Locking pin separates the plug increasing retention force
  • Color coded carbon fiber and brass shells
  • Dual set screws for maximum cable retention
  • 24 karat gold plated contact surfaces
Your Price: $21.98
MSRP: $39.99
Save $18.01 (45%)
Bulk Pricing
Quantity:Qty: 1-9 $21.98/ea
Quantity:Qty: 10+ $18.49/ea
45 In Stock
Get Notified When Available

We'll send you an email when Expanding Banana Plug with Dual Set Screws and Carbon Fiber Wrapped Brass Shell 2 Pair is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Expanding Banana Plug with Dual Set Screws and Carbon Fiber Wrapped Brass Shell 2 Pair

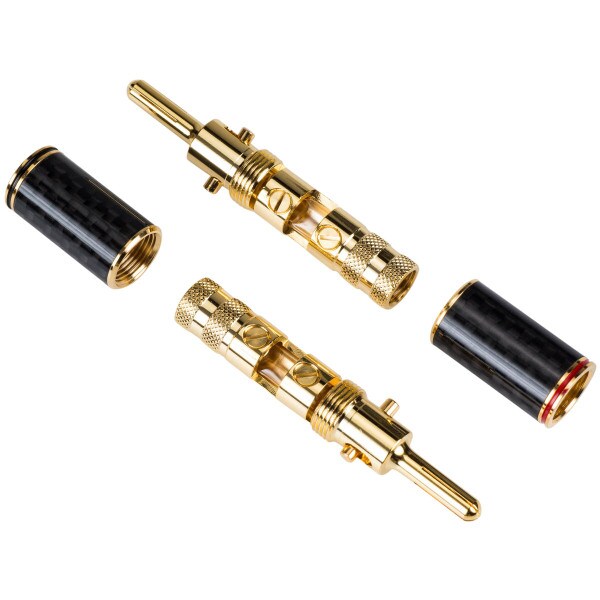

These locking, expanding banana plug connectors are manufactured with a removable threaded sleeve that's wrapped in real carbon fiber for modern appeal and character. A color-coded ring offers quick polarity identification.

Milled from solid brass and plated with 24 karat gold, to provide a long lifetime of service free of oxidation, each connector features two flat-head screws, beneath the removable sleeve, to create a gas-free connection between your speaker wire and the connector.

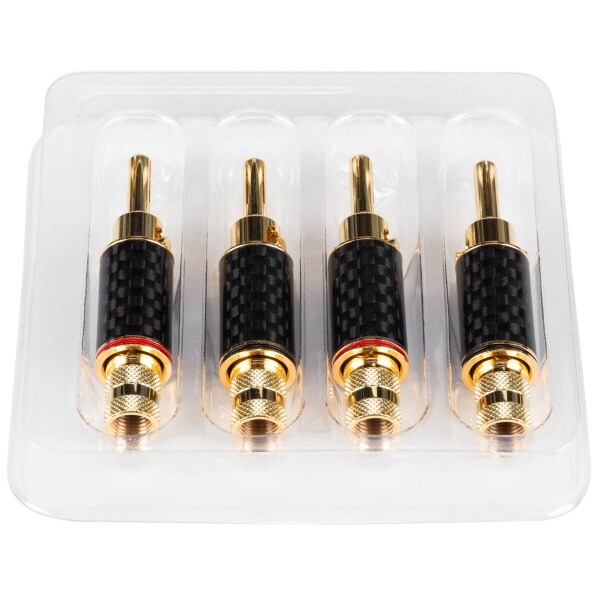

Integral to the design of these banana plugs is a central spike, driven by the shell portion of the connector, which spreads the banana plug tines. This action firmly locks the banana plug into 5-way binding posts and banana jacks for a worry-free connection. Accepts up to 8 AWG wire. Sold two pair per package, two with red rings and two with black rings. Dimensions: 2-3/8" L x 1/2" Dia.

Note: When using high-strand cable, tinned leads will provide the greatest retention by the set screws. Clear nylon is placed beneath the two screws to secure them during shipping. Please remove prior to use. The knurled portion of this connector is for connector insertion only, please do not try to use it to remove the carbon fiber sleeve.

Product Details

BrandParts Express
Part Number091-3614
UPC848864019208
Unit of MeasureEach
Weight0.155

Product Specifications

Contact PlatingGold
Style / TypeSingle
