Executive 200 Watt Portable Bluetooth Speaker Kit

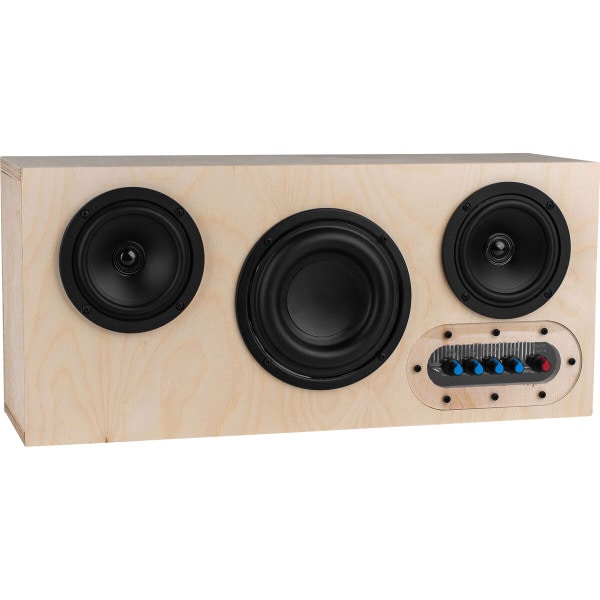

The modern design of the Executive Bluetooth speaker has the look of a sleek tabletop speaker, but the battery power gives you the freedom to take you music with you anywhere. With excellent looks, powerful output capability, and refined sound the Executive Bluetooth speaker is an unbeatable package.

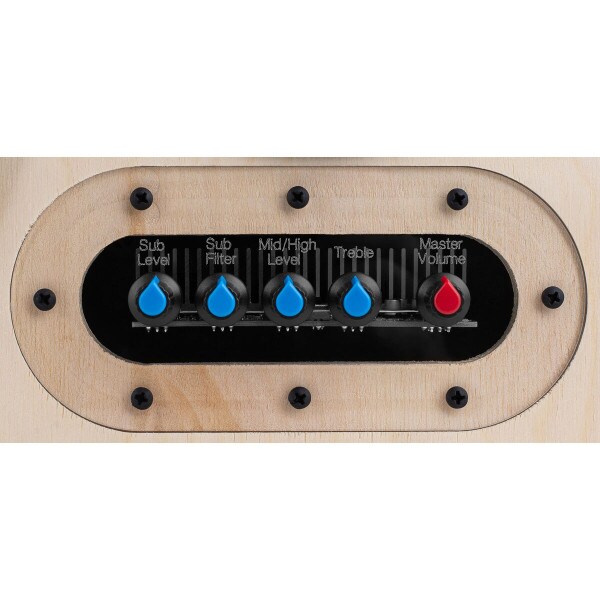

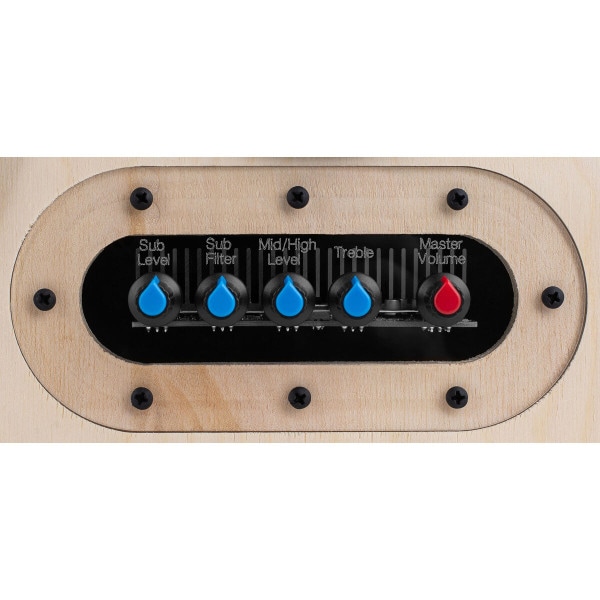

The Executive speaker kit is a battery powered portable Bluetooth speaker with sleek and modern looks that delivers sound quality that will make any audiophile happy. The powerful 2.1 design delivers high output with smooth and accurate response that will present a wider soundstage than you expect from such a compact system. The simple on-board controls allow you to tune the sound to fit the environment and even control your media player directly from the Executive speaker. A 4" coaxial driver with a 3/4" silk tweeter on each of the stereo channels produce extremely smooth response on and off-axis with nearly perfect phase response. For the low end, one of the highest excursion 5-1/4" subwoofers available is matched with an 8" passive radiator to deliver accurate deep bass response with power and authority.
Poly cone driven by a 1" voice coil delivers a natural laid-back response with extreme control and low distortion. The bottom octaves are handled by the famous Tang Band W5-1138SMF 5-1/4" subwoofer paired up with a Dayton Audio DS215-PR 8" Passive Radiator. One of the highest excursion 5-1/4" subwoofers available, the W5-1138SMF looks great and will dispense bass like you would never expect from a design this small.
Features:
- High power 3 driver system delivers amazing depth, clarity, detail, and output
- Perfect for offices, bedrooms, picnics or anywhere you want great sound
- High quality Baltic birch plywood enclosure is rugged and easy to assemble
- Includes everything needed to build the kit and set-by-step manual makes assembly easy
- This kit includes nearly everything you need to build a high end portable Bluetooth speaker in no time flat, including: a knock-down enclosure, drivers, crossover components, amplifier, batteries, wire, hardware, and connectors.
Customer Comments:
" I have built the vbss, the c-notes, and the amigas with the sunflower center channel. Figured I was ready to move on to something I considered a bit more advanced. This kit did not disappoint, and offered sound that couldn't be beat for its size or price." -Zachary D ⋆⋆⋆⋆⋆
" Outstanding sound and volume to spare. The bass is really good, mid and tweeters are clear and crisp. Amp adjustments allow some fine tuning to your liking." -Aaron H ⋆⋆⋆⋆⋆
" Was absolutely amazed with the sound quality & quantity of such a small setup." - Shawn P ⋆⋆⋆⋆⋆

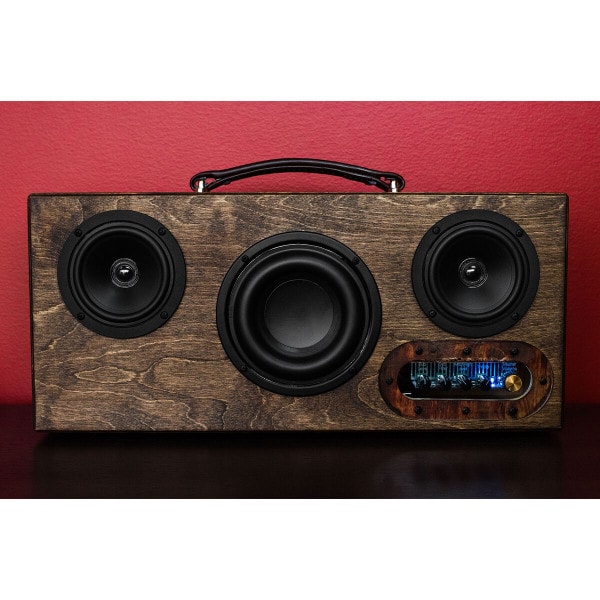

Customer Projects:
About the Enclosure

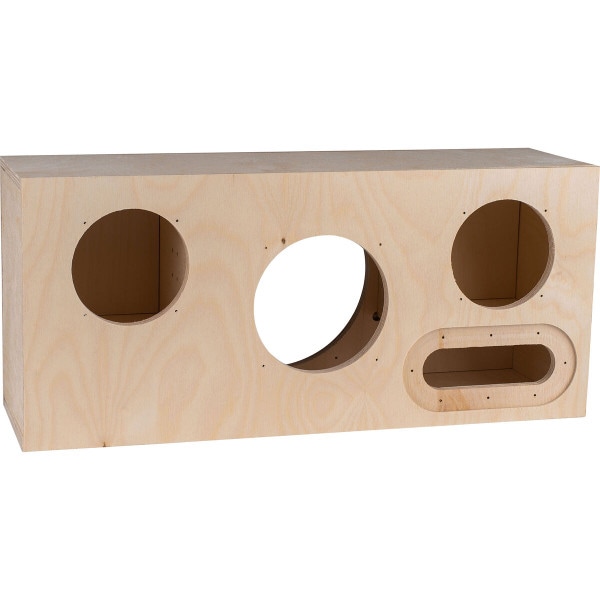

The enclosure for the Executive is designed to be easy to assemble and extremely rugged. Made from 1/2" thick high quality Baltic birch plywood, this box can take a beating and is much more moisture resistant MDF. The panels have all been precision cut with dadoes and rabbets for every piece making assembly a snap. The clean lines and modern look makes finishing simple and leaves plenty of room for customizing, allowing you to make the Executive speaker fit into any decor.
About the Driver

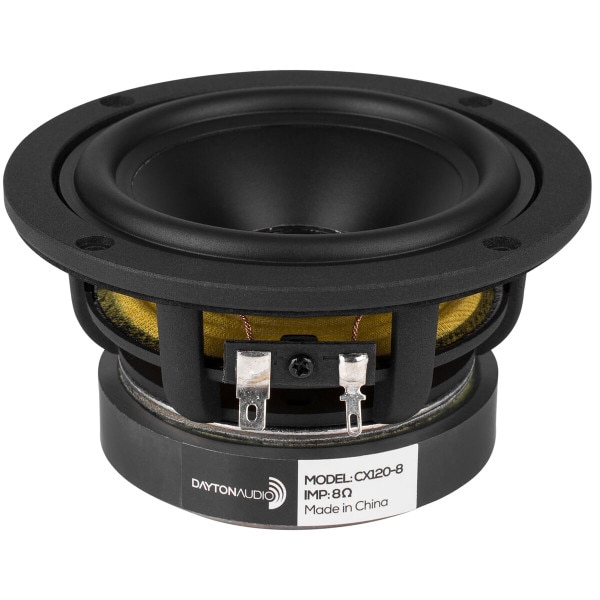

Equipped with incredible cutting edge drivers, you can be sure that the Executive speaker is capable of outstanding performance for an unbeatable value. Dayton Audio's CX120-8 4" coaxial driver, with a 3/4" silk dome tweeter, handles the midrange and high frequency duties. The 3/4" silk dome tweeter produces natural but crisp response and is co-axially mounted inside the woofer's voice coil for near perfect phase and time alignment.
About the Amplifier
The passive radiator design allows the enclosure to be incredibly compact with extremely low tuning, which keeps excursion under control and allows powerful output to under 40 Hz. All of this is powered by the TPS3116D2 Class D 2.1 Bluetooth 4.0 Amplifier Board, which is capable of 200 watts RMS of output. Thanks to the available power and excellent set of features, this amplifier makes the Executive a potent and flexible portable system.

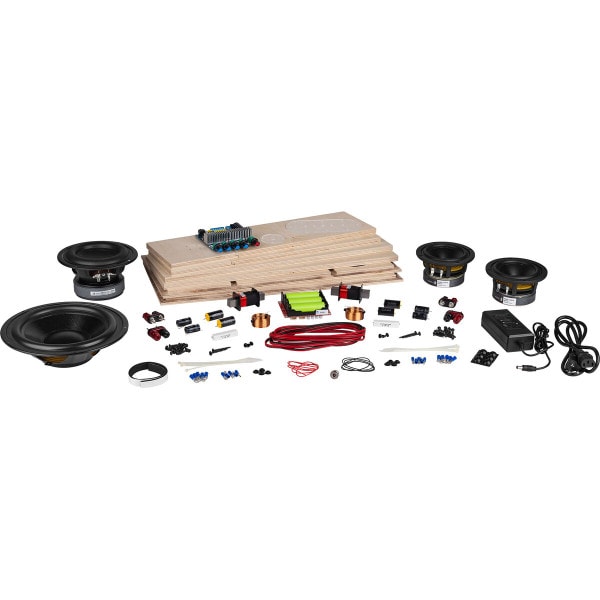

Kit Components:
| Part # | QTY. | Description |
| 264-917 | 1 | Tang Band W5-1138SMF 5-1/4" Paper Cone Subwoofer Speaker |
| 295-492 | 1 | Dayton Audio DS215-PR 8" Designer Series Passive Radiator |
| 320-635 | 1 | TPS3116D2 Class D 2.1 Bluetooth 5.0 Amplifier Board 2 x 50W + 100W with Filter and Volume Controls |
| 027-420 | 4 | Dayton Audio DMPC-3.3 3.3uF 250V Polypropylene Capacitor |
| 027-348 | 2 | 22uF 100V Electrolytic Non-Polarized Crossover Capacitor |
| 027-344 | 2 | 15uF 100V Non-Polarized Capacitor |
| 257-028 | 2 | Dayton Audio AC20-3 0.30mH 20 AWG Air Core Inductor Coil |
| 257-650 | 2 | Dayton Audio IC181 1.0mH 18 AWG Laminated Iron Core Inductor |
| 004-1 | 2 | Dayton Audio DNR-1.0 1 Ohm 10W Precision Audio Grade Resistor |
| 325-201 | 1 | Dayton Audio LBB-3v2 3 x 18650 Lithium Battery Charger Board/Module 12V with Charge Protection |
| 090-5016 | 1 | 2.1mm Metal Panel Mount DC Jack |
| 120-057 | 1 | 15 VDC 4A AC Adapter Power Supply with 2.1 x 5.5mm Plug Center Positive (+) |
| 090-475 | 4 | Dual Binding Post 1 Red 1 Black |
| 320-435 | - | Adhesive Rubber Feet Dome Shaped 12-Pack |
| 081-420 | - | #8 x 1/2" Deep Thread Pan Head Screws Black 100 Pcs. |
| 081-435 | - | #6 x 3/4" Deep Thread Pan Head Screws Black 100 Pcs. |
| 095-282 | - | 0.205" (16-14) Female Disconnect 50 Pcs. |
| 095-286 | - | 0.110" (16-14) Female Disconnect 50 Pcs. |
| 081-1105 | - | #6 x 1-1/2" Coarse Thread Cabinet Screws 100 Pcs. |
| 095-212 | - | #8 (16-14) Ring Terminal 50 Pcs. |
| 248-8704 | - | Peavey Nylon Shoulder Washer (Box 200) |
| 260-542 | - | Speaker Gasketing Tape 1/8" x 1/2" x 50 ft. Roll |
| 089-044 | - | Cable Ties 5-1/2" Natural 1000 Pcs. |
| 320-634 | 1 | Clear Acrylic Mounting Plate for TPS3116D2 Class D 2.1 Bluetooth 4.0 Amplifier Board |
| 090-5017 | 1 | Clear Acrylic Mounting plate for Metal Panel Mount DC Jacks |
| 101-765 | - | Consolidated 22 AWG Black Solid Hook-Up Wire 100 ft. |
| 101-766 | - | Consolidated 22 AWG Red Solid Hook-Up Wire 100 ft. |
| 081-3232 | - | 10-Pack 1/4" x 1-1/2" Zinc Fender Washers |
| 295-384 | 2 | Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm |
| 101-780 | 10ft. | Consolidated 16 AWG 2-conductor Power Speaker Wire 1 ft. (Red/Black) |
| 999-748 | 1 | Knock Down Enclosure for The Executive Portable Bluetooth Speaker |
| 142-103 | 1 | Lishen 18650 2600mAh Li-Ion Flat Top Battery 3-Pack |
Specifications:
- Power: 2 x 50 watts RMS + 1 x 100 watts RMS
- Midrange/Tweeter: 2 x CX120-8 4" coaxial driver
- Woofer: 1 x W5-1138SMF 5-1/4" high excursion subwoofer
- Frequency response: 35 – 20,000 Hz
- Battery Time: 8 – 10 hours at moderate volume
- Bluetooth Version: 4.0
- Dimensions: 9" H x 20" W x 6" D
