  • Eminence PXB3:3K5 3-Way Speaker Crossover Board 500/3,500 Hz

CLEARANCE Eminence PXB3:3K5 3-Way Speaker Crossover Board 500/3,500 Hz

Eminence SpeakerPart # 290-652
Model: PXB3:3K5
Eminence PXB crossovers feature advanced circuit design to both preserve the crossover and your HF drivers.

Key Features

  • Crossover type: Three-way, board only
  • Crossover frequencies: 500 Hz / 3.5 kHz
  • Crossover slopes: 12 dB/octave LP, 6 dB/octave MP, 18 dB/octave HP
  • Power handling: 400 watts RMS
Similar items that may interest you:
Dayton Audio XO3W-500/4K 3-Way Speaker Crossover 500/4,000 Hz
Price: $66.98Part # 260-152
See all items in Assembled Passive Crossovers
Get Notified When Available

We'll send you an email when Eminence PXB3:3K5 3-Way Speaker Crossover Board 500/3,500 Hz is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

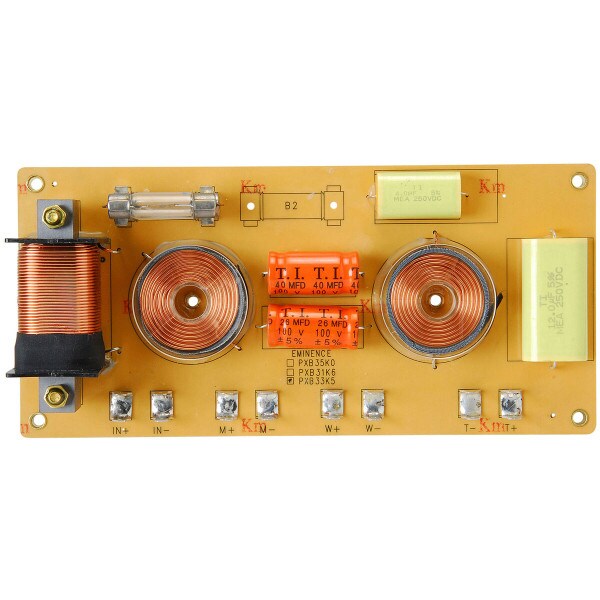

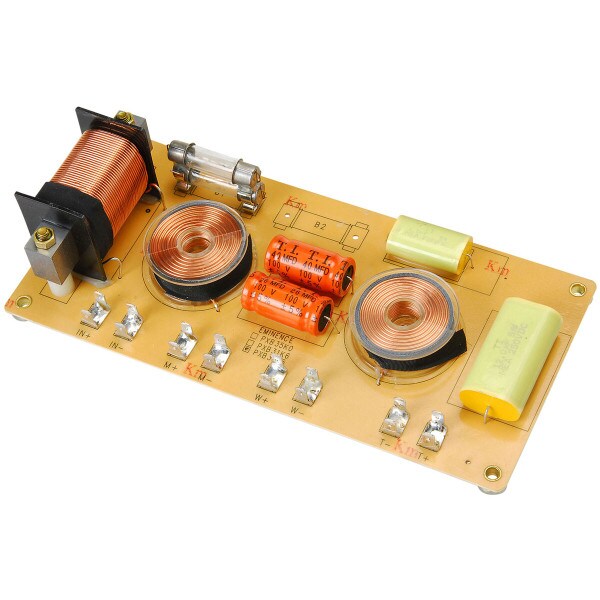

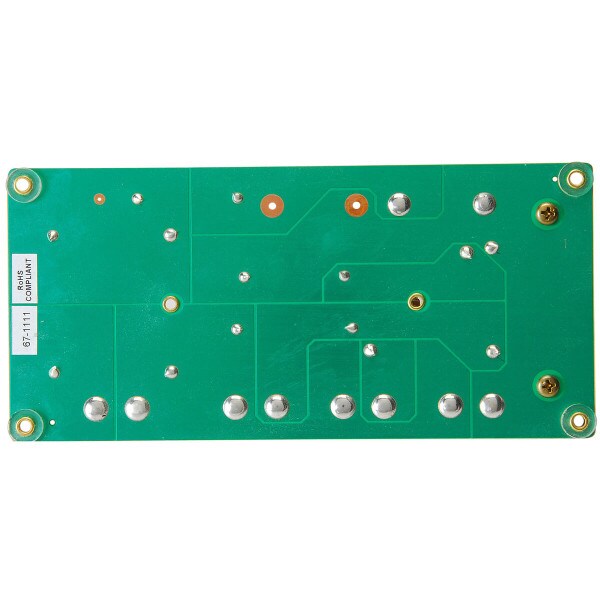

Eminence PXB3:3K5 3-Way Speaker Crossover Board 500/3,500 Hz

Eminence PXB board-only crossovers are a lower cost alternative to the "cabinet ready" models and are targeted specifically for custom cabinet projects as they do not include the terminal cup, input connectors or L-pad found on the "cabinet ready" models. They feature advanced circuit design to both preserve the crossover and your drivers. A benefit of the design is to form a voltage divider across the high frequency driver. The high-pass protection uses custom-built aerospace lamps. The tungsten filaments effectively track the program material, dynamically maintaining a safe maximum current level to the high frequency driver without introducing distortion. This circuitry provides smooth 3:1 analog compression during input overload conditions over 250 watts RMS. At full drive level approaching clipping, the electrical attenuation to the protected high frequency driver is -4.5 dB. In every way, Eminence pxb crossovers are a technically superior product. For use with 8 ohm drivers.

Product Details

BrandEminence Speaker
ModelPXB3:3K5
Part Number290-652
UPC876358001514
Unit of MeasureEach
Weight1.62

Product Specifications

ConfigurationAssembled Board Only
Crossover Type3-Way
