  • Eminence N151M-8 1" Ring Radiator Driver 8 Ohm 2-Bolt

Eminence N151M-8 1" Ring Radiator Driver 8 Ohm 2-Bolt

Eminence Speaker
Part #290-5614

Eminence N151M-8 1" Ring Radiator Driver 8 Ohm 2-Bolt

Eminence Speaker
Part #290-5614
Model: N151M-8

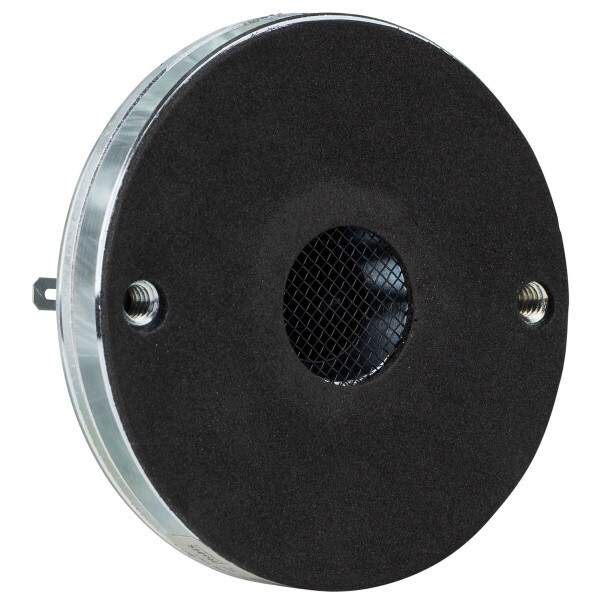

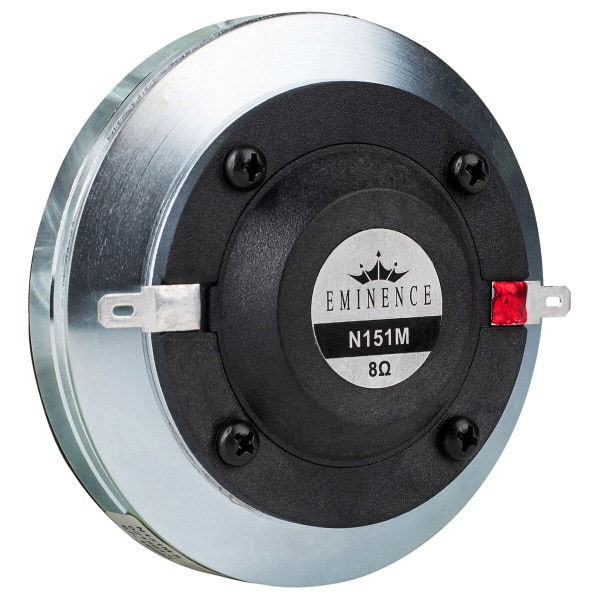

The Eminence N151M-8 1" ring radiator compression driver uses a powerful neodymium magnet and Mylar diaphragm to produce high end with low distortion, smooth frequency response, and amazing efficiency from a lightweight and compact package.
Key Features
  • Advanced phase plug design produces smoother response and lower distortion
  • 111 dB efficient to keep up with the highest output speaker systems
  • Neodymium motor for minimal weight and size, ideal for compact designs
  • Suggested crossover of 1,800 Hz makes this driver suitable for most 2-way systems
Your Price: $94.99
MSRP: $124.99
Save $30.00 (24%)
Bulk Pricing

Back-Ordered

Expected back in stock any day
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Eminence N151M-8 1" Ring Radiator Driver 8 Ohm 2-Bolt

Despite its minute size, Eminence's 1" exit N151M-8 ring radiator compression driver delivers monumental performance. Weighing in at a mere 1.7 lbs., the N151M-8 utilizes a phase plug design that improves the distribution of forces over the diaphragm surface, which results in a driver with lower distortion, smoother frequency response, and increased sensitivity as compared to conventional ring radiator designs.

Specifications: • Power handling: 45 watts RMS with recommended crossover of 1,800 Hz, 12 dB/octave slope • VCdia: 1.5" • Impedance: 8 ohms • Frequency response: 1,800-27,000 Hz • SPL: 111 dB 1W/1m • Dimensions: 3.6" diameter x 1.45" depth • Net weight: 1.7 lbs. • Mounting: 2 x 1/4-20 bolt holes on a 3" diameter.

Product Details

BrandEminence Speaker
ModelN151M-8
Part Number290-5614
UPC876358003884
Unit of MeasureEach
Weight1.95

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1"
Mounting Type2-Bolt
Power Handling (RMS)45 Watts
Impedance
