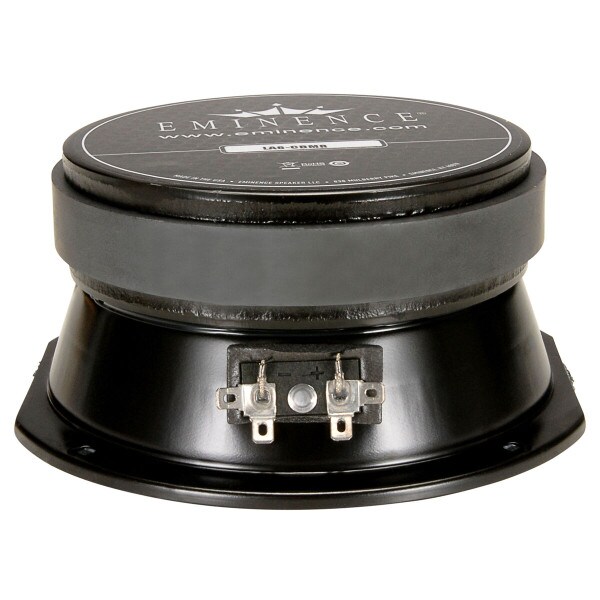

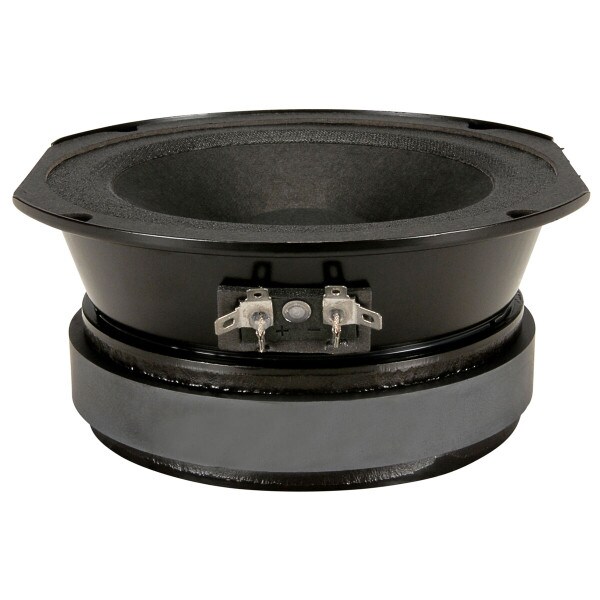

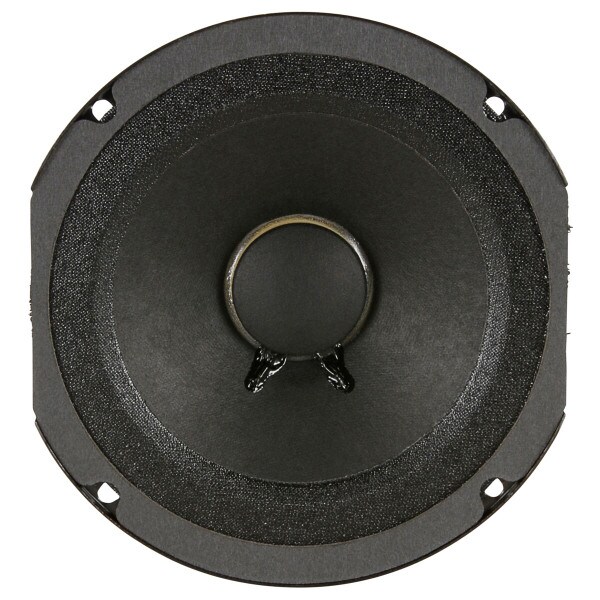

Eminence LA6-CBMR 6-1/2" Line Array Series Sealed Back Midrange Speaker

Name: Eminence LA6-CBMR 6-1/2" Line Array Series Sealed Back Midrange Speaker
Brand: Eminence Speaker
SKU: 290-542
Price: 109.99 USD
Availability: OutOfStock
Rating: 4.9 (11 reviews)

Eminence SpeakerPart # 290-542

Model: LA6-CBMR

Read 11 Reviews | 8 Questions, 14 Answers or

Recommended for professional audio midrange from 500 Hz-3 kHz. Basket is closed. The truncated basket is designed to minimize acoustical center spacing.

Key Features

Designed to cover 500 Hz-3 kHz. Also practical for standard three-way designs.
Two-layer copper voice coil with Kapton coil former
Premium pressed steel basket for maximum strength
Vented and extended core
Paper cone with cloth cone edge

Product Details

Brand

Eminence Speaker

Model

LA6-CBMR

Part Number

290-542

UPC

876358000456

Unit of Measure

Each

Weight

6.6

Product Specifications

Nominal Diameter

6-1/2"

Power Handling (RMS)

150 Watts

Power Handling (MAX)

300 Watts

Impedance

8Ω

Frequency Response

500 to 5,400Hz

Sensitivity

97.8dB 2.83V/1m

Voice Coil Diameter

1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)

460Hz

DC Resistance (Re)

6.3Ω

Voice Coil Inductance (Le)

0.33mH

Mechanical Q (Qms)

3.13

Electromagnetic Q (Qes)

1.24

Total Q (Qts)

0.89

Compliance Equivalent Volume (Vas)

0.01ft³

Mechanical Compliance of Suspension (Cms)

0.01mm/N

BL Product (BL)

11.1T·m

Diaphragm Mass Inc. Airload (Mms)

Maximum Linear Excursion (Xmax)

0.2mm

Surface Area of Cone (Sd)

133.1cm²

Materials of Construction

Cone Material

Paper

Surround Material

Cloth

Voice Coil Wire Material

Copper

Voice Coil Former

Kapton® / Polyimide

Basket / Frame Material

Steel

Magnet Material

Ferrite

Mounting Information

Overall Outside Diameter

6.59"

Baffle Cutout Diameter

5.65"

Depth

2.77"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

0.02ft³

Sealed F3

490Hz

Vented Volume

0.05ft³

Vented F3

268Hz
