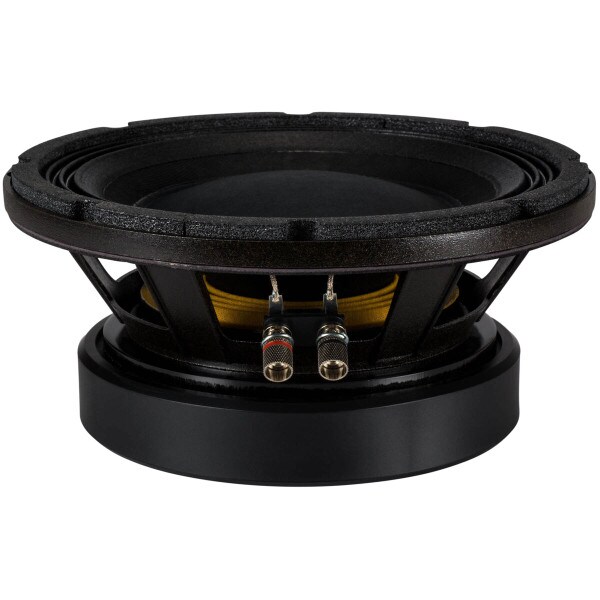

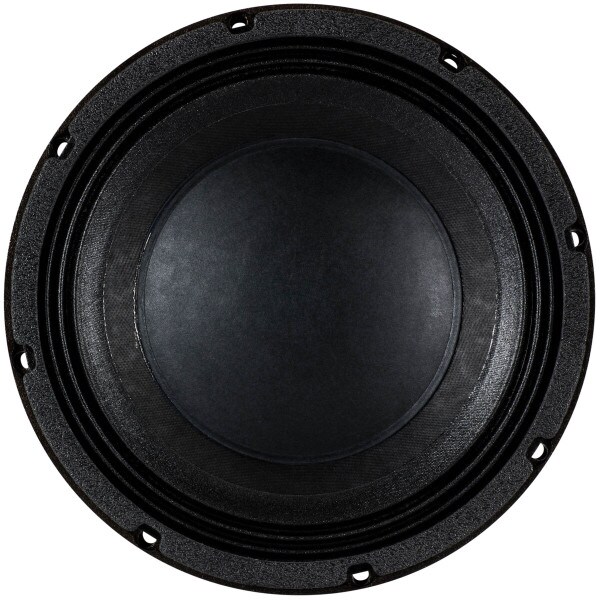

Eminence Kappa Pro-10LF 10" Professional Subwoofer 8 Ohm

Eminence SpeakerPart # 290-425
Model: Kappa Pro-10LF

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now
Eminence’s Kappa Pro series reaches a new low with the Kappa Pro 10LF, a low frequency enhanced version of their popular Kappa Pro 10.

Key Features

  • Large, thoroughly vented magnetic motor
  • Low Fs and high EBP for hornloaded subwoofer enclosures
  • High 600 watt RMS power handling
Your Price: $199.99
+ FREE SHIPPING
MSRP: $234.99
Save $35.00 (15%)
Bulk Pricing
Only 3 In Stock
Get Notified When Available

We'll send you an email when Eminence Kappa Pro-10LF 10" Professional Subwoofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence Kappa Pro-10LF 10" Professional Subwoofer 8 Ohm

With the low frequency content of modern music demanding more from the low end than in the past, Eminence's Kappa Pro 10LF excels with its high-BL, strong twin-reinforced cone, and high excursion suspension.

Its high power handling capability (600 watts continuous, 1200 watts music program power) and its Thiele-Small parameter set allow it to work in very compact vented or horn loaded bass guitar or subwoofer enclosures.

Product Details

BrandEminence Speaker
ModelKappa Pro-10LF
Part Number290-425
UPC876358002375
Unit of MeasureEach
Weight18.3

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.75
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance8Ω
Frequency Response47 to 2,000Hz
Sensitivity91.6dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)39Hz
DC Resistance (Re)5.47Ω
Voice Coil Inductance (Le)0.97mH
Mechanical Q (Qms)8.97
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.28
Compliance Equivalent Volume (Vas)2.58ft³
BL Product (BL)14.46T·m
Diaphragm Mass Inc. Airload (Mms)46g
Maximum Linear Excursion (Xmax)7.2mm
Surface Area of Cone (Sd)376.9cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialTreated Paper
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.27"
Baffle Cutout Diameter9.14"
Depth5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume1ft³
Vented F349.3Hz
