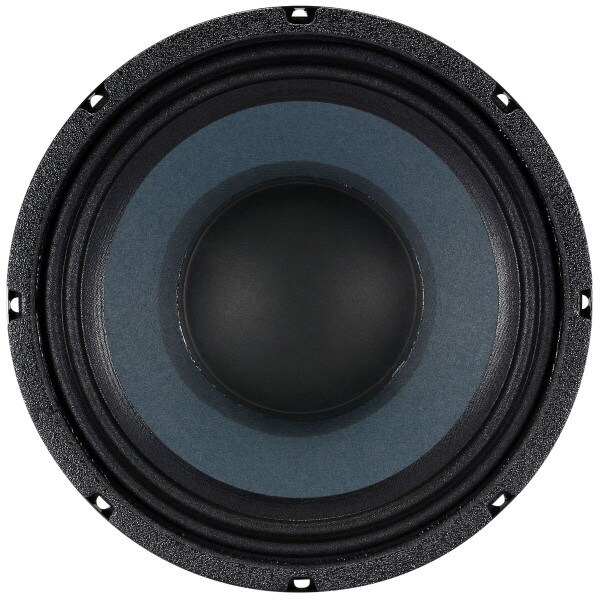

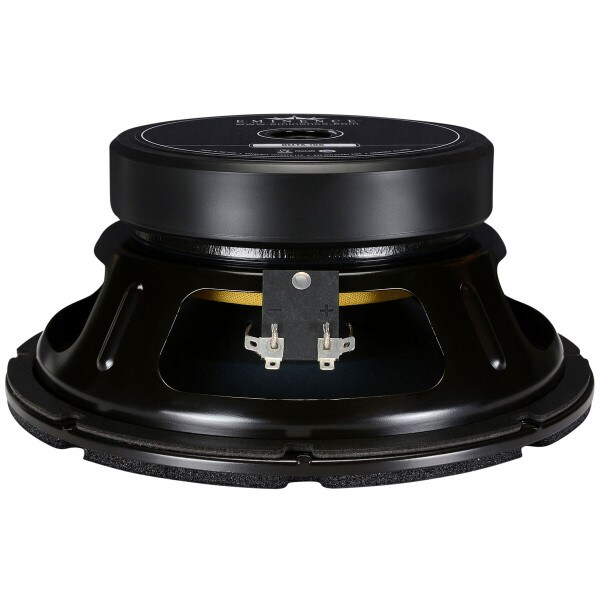

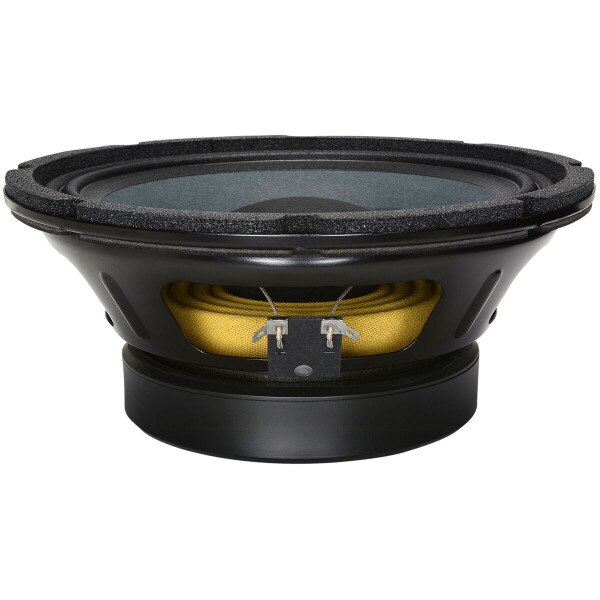

Eminence Delta-10B 10" Midrange Driver 16 Ohm

Eminence SpeakerPart # 290-413
Model: Delta-10B
For great midrange and woofer performance, try the Eminence Delta-10B 16 ohm 10" speaker. Its hefty 56 oz. magnet, 2-1/2" voice coil, and optimized moving parts are designed to guarantee success!

Key Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Vented Pole Piece
  • Pressed steel basket
  • Paper cone
  • Cloth accordian surround
Your Price: $123.99
+ FREE SHIPPING
MSRP:
Save $31.00 (20%)
Bulk Pricing
Only 4 In Stock
Get Notified When Available

We'll send you an email when Eminence Delta-10B 10" Midrange Driver 16 Ohm is back in stock or available for preorder.

Order in the next 13 hr 35 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence Delta-10B 10" Midrange Driver 16 Ohm

The Eminence Delta-10B 16 ohm 10" speaker is optimized for outstanding midrange performance in 3-way systems, and midbass in 2-way systems. Also suitable for bass guitars, keyboards, club music systems, and stage monitors. Made in the USA. 7-year manufacturer's warranty!

Product Details

BrandEminence Speaker
ModelDelta-10B
Part Number290-413
UPC876358000210
Unit of MeasureEach
Weight12

Product Specifications

Nominal Diameter10"
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance16Ω
Frequency Response71 to 3,700Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)65Hz
DC Resistance (Re)11.6Ω
Voice Coil Inductance (Le)0.79mH
Mechanical Q (Qms)8.34
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)1.27ft³
Mechanical Compliance of Suspension (Cms)0.21mm/N
BL Product (BL)19.5T·m
Diaphragm Mass Inc. Airload (Mms)28g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)344.9cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.09"
Baffle Cutout Diameter9.18"
Depth4.25"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F3185Hz
Vented Volume1ft³
Vented F372Hz
