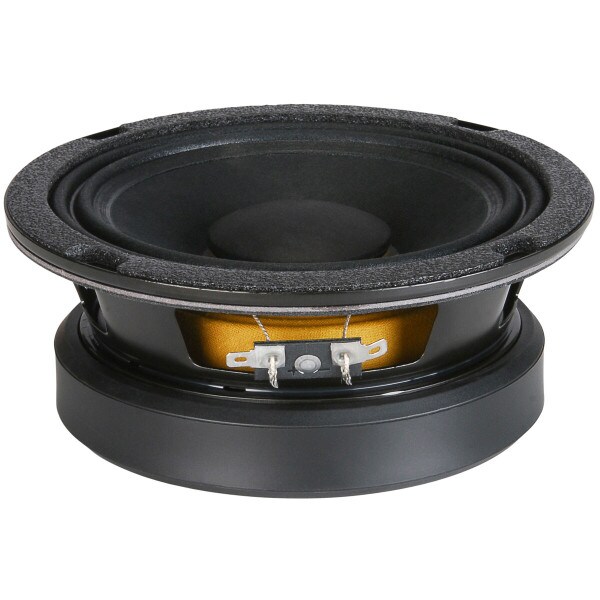

Eminence Beta-6A 6-1/2" High Power Midbass Midrange Woofer Speaker

Eminence SpeakerPart # 290-662
Model: Beta-6A
Eminence designed the Beta-6A as high output, high power handling 6-1/2" midbass/midrange that is well suited for use in concert-grade live sound applications or extreme SPL car audio applications.

Key Features

  • The Alpha-6 series midbass woofer evolved
  • 2" diameter voice coil for high power handling
  • Over 4 mm of Xmax in addition to high sensitivity
  • Perfect for use in multi-way, concert-grade loudspeakers
  • Water-resistant coating for use outdoors and in cars
Your Price: $89.99
MSRP: $124.99
Save $35.00 (28%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Eminence Beta-6A 6-1/2" High Power Midbass Midrange Woofer Speaker is back in stock or available for preorder.

Estimated back in stock 7/18/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence Beta-6A 6-1/2" High Power Midbass Midrange Woofer Speaker

The Beta-6A 6-1/2" midbass/midrange from Eminence is the evolution of the vaunted Alpha-6 driver series. With the Beta-6A, Eminence has increased the voice coil from 1.5" to 2" for increased power handling, while a strong magnet and motor system keeps the sensitivity high.

In addition to a larger diameter voice coil, Xmax has been increased to 4.5 mm and allows for lower usable frequency response. Additionally, a vented pole piece allows heat to escape for reduced power compression. The paper cone and dust cap have been treated for water-resistance, which is perfect for when the Beta-6A is used outdoors for live sound and in high SPL car audio systems.

Eminence designed the Beta-6A to work well in small sealed or vented enclosures, and in infinite baffles too. See the Manuals/Resources section for Eminence's cabinet design recommendations.

Product Details

BrandEminence Speaker
ModelBeta-6A
Part Number290-662
UPC876358002115
Unit of MeasureEach
Weight6.25

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)175 Watts
Power Handling (MAX)350 Watts
Impedance8Ω
Frequency Response95 to 4,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)123Hz
DC Resistance (Re)5.18Ω
Voice Coil Inductance (Le)0.43mH
Mechanical Q (Qms)3.46
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.56
Compliance Equivalent Volume (Vas)0.12ft³
Mechanical Compliance of Suspension (Cms)0.15mm/N
BL Product (BL)8.13T·m
Diaphragm Mass Inc. Airload (Mms)11g
Maximum Linear Excursion (Xmax)4.5mm
Surface Area of Cone (Sd)129.9cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.59"
Baffle Cutout Diameter5.65"
Depth2.66"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3200Hz
Vented Volume0.43ft³
Vented F380Hz
