Eminence APT-80 Super Tweeter with 80 degree Conical Horn

Eminence SpeakerPart # 290-532
Model: APT-80
The APT high-power super tweeter possesses extraordinary sensitivity thanks to a phenolic diaphragm, which has unique properties of stiffness and damping. By fluid cooling the voice coil, increased power handling and controlled low frequency behavior are assured.

Key Features

  • Smooth response from 3,500 to 20,000 Hz
  • Phenolic diaphragm delivers detailed and accurate sound
  • 80 degree conical dispersion minimizes unwanted reflections
  • Recommended for use with 3,500 Hz or higher crossover
Similar items that may interest you:
GRS BT2-8 3-3/8" Horn Loaded Bullet Tweeter
Price: $15.98Part # 270-055
PRV Audio WG175Ph Horn Super Tweeter 8 Ohm
Price: $26.91Part # 294-2808
See all items in Horn Loaded Tweeters & Midranges
Your Price: $54.99
MSRP: $69.99
Save $15.00 (21%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Eminence APT-80 Super Tweeter with 80 degree Conical Horn is back in stock or available for preorder.

Order in the next 0 hr 19 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

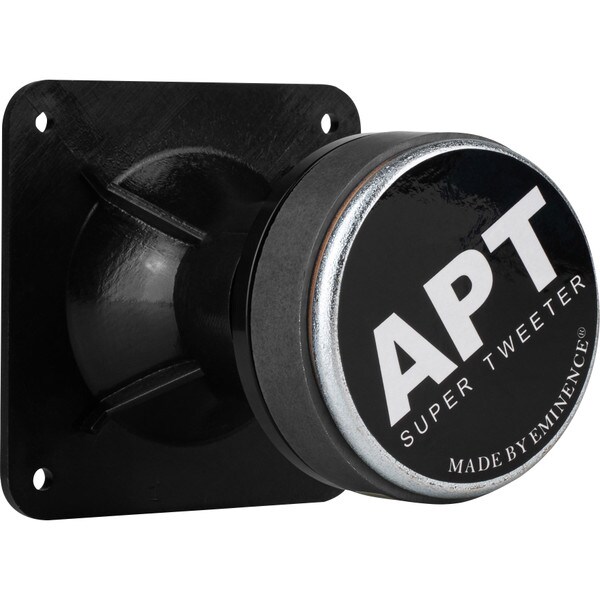

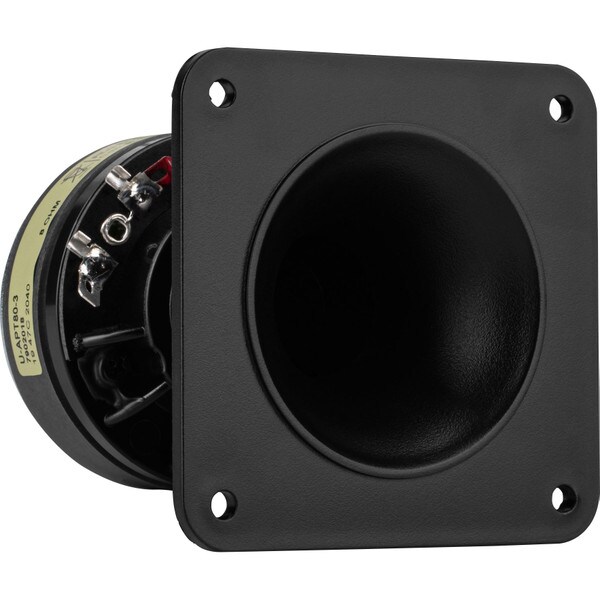

Eminence APT-80 Super Tweeter with 80 degree Conical Horn

The APT high-power super tweeter possesses extraordinary sensitivity thanks to a phenolic diaphragm, which has unique properties of stiffness and damping. By fluid cooling the voice coil, increased power handling, controlled low frequency behavior and long-term reliability are assured. The APT-80 super tweeter is pre-mounted on an 80° conical horn.

Specifications: • Power handling: 45 watts RMS (crossover frequency 3.5 kHz, 18 dB/octave), 85 watts RMS (crossover frequency 5 kHz, 18 dB/octave) • Impedance: 8 ohms • Useable range: 3,500-20,000 Hz • Fs: 2,500 Hz • Recommended crossover: 3,500 Hz • SPL: 102.3 dB 1W/1m • Mfg. #APT-80 • Dimensions: 3-7/16" H x 3-7/16" W x 3-5/8" D • Cutout dimensions: 3-1/8" diameter.

Product Details

BrandEminence Speaker
ModelAPT-80
Part Number290-532
UPC876358001323
Unit of MeasureEach
Weight1.6

Product Specifications

Diaphragm MaterialPhenolic
Power Handling (RMS)45 Watts
Impedance
