  • Eminence 15" Paper Cone Neodymium Woofer 8 Ohm

BUYOUT Eminence 15" Paper Cone Neodymium Woofer 8 Ohm

Factory BuyoutsPart # 299-2253
Read 4 Reviews or

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now

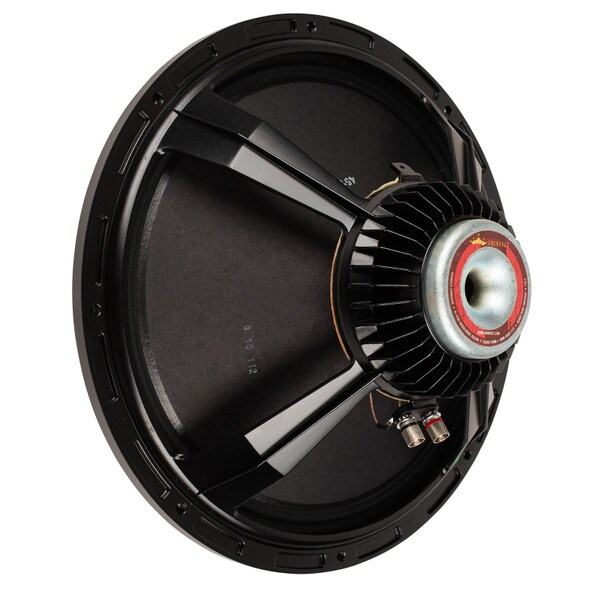

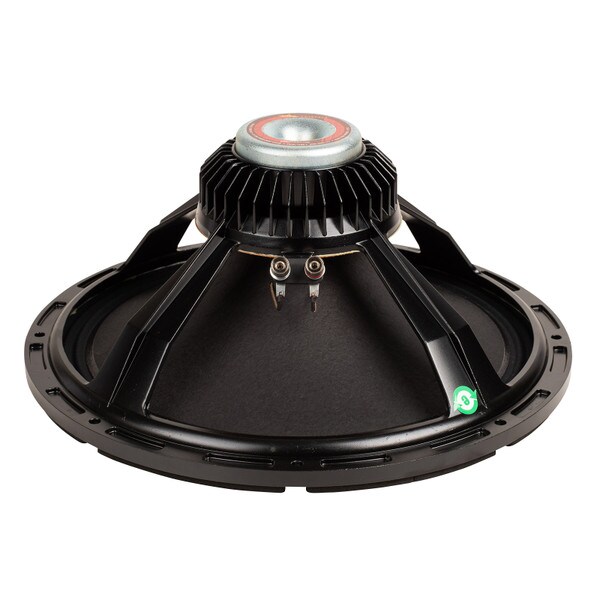

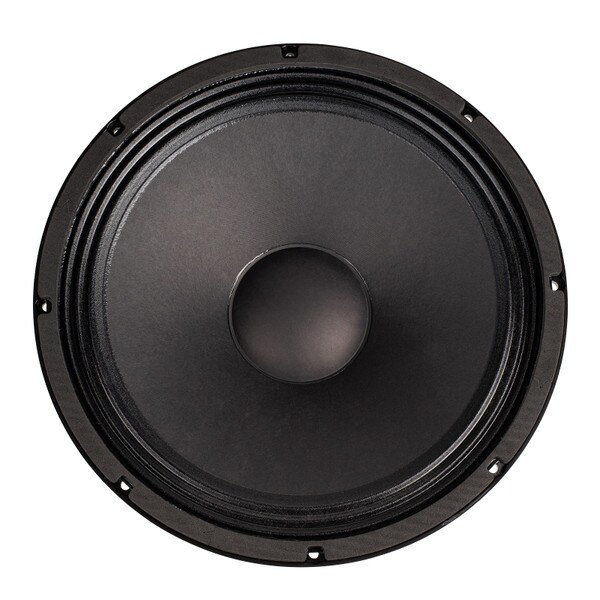

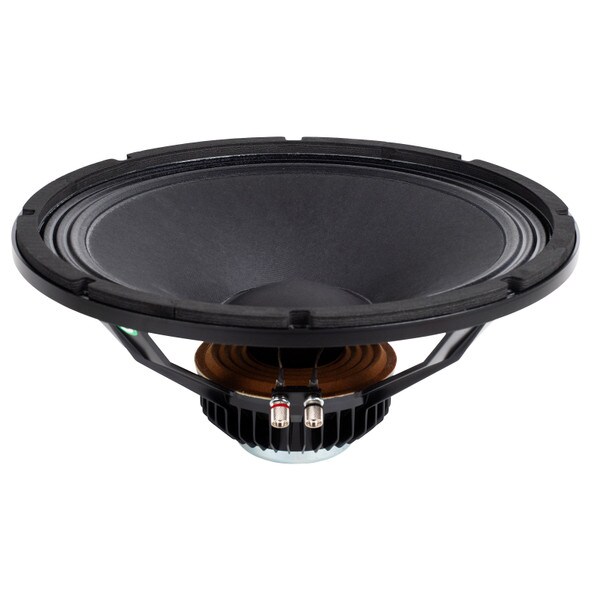

This Eminence 15” paper cone 8 ohm woofer uses a powerful, but compact, neodymium magnet to keep weight as low as possible without sacrificing performance. Featuring a rigid cast aluminum frame, vented motor assembly, and integrated heat sinks, this driver is engineered to take 300 watts RMS and deliver high output for extended periods of time.

Key Features

  • Vented pole piece and integrated heatsinks helps dissipate heat and minimize power compression
  • High energy neodymium magnet keeps this driver under 6 pounds
  • 2-1/2” diameter voice coil handles up to 300 watts RMS
  • Naturally damped paper cone and cloth surround delivers smooth response
Similar items that may interest you:
Eminence Delta-15A 15" Driver 8 Ohm
Price: $149.99Part # 290-418
Dayton Audio PA380-8 15" Pro Woofer 8 Ohm
Price: $139.98Part # 295-034
See all items in Pro Woofers, Subwoofers & Midrange Speakers
BUYOUT $99.88
+ FREE SHIPPING
Bulk Pricing
133 In Stock
Get Notified When Available

We'll send you an email when Eminence 15" Paper Cone Neodymium Woofer 8 Ohm is back in stock or available for preorder.

Order in the next 2 hr 55 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence 15" Paper Cone Neodymium Woofer 8 Ohm

Built by Eminence Speakers, this versatile paper cone woofer is an excellent choice for use in almost any large, high output, audio project. Thanks to a small but strong neodymium powered motor assembly this driver weighs in at under 6 pounds. The powerful motor and low mass cone assembly allow this lightweight 15" to achieve an impressive 98.9 dB sensitivity making this an extremely efficient driver. With such high efficiency and power handling, this driver will work well in portable DJ systems, bass guitar amplifiers, and high output sound reinforcement systems. In addition, this driver can also be used in high efficiency or open baffle home systems thanks to the low distortion and smooth response.

Note: This new old stock driver is from a factory buyout. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
Part Number299-2253
UPC848864077284
Unit of MeasureEach
Weight11

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.625
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance8Ω
Frequency Response40 to 4,000Hz
Sensitivity98.9dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)42Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)4.59
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)6.1ft³
Mechanical Compliance of Suspension (Cms)0.179mm/N
BL Product (BL)17.1T·m
Diaphragm Mass Inc. Airload (Mms)80g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)823cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.32"
Baffle Cutout Diameter14"
Depth6.8"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2ft³
Sealed F392Hz
Vented Volume3.5ft³
Vented F356Hz
